200GETO (2002)
FUEL 1

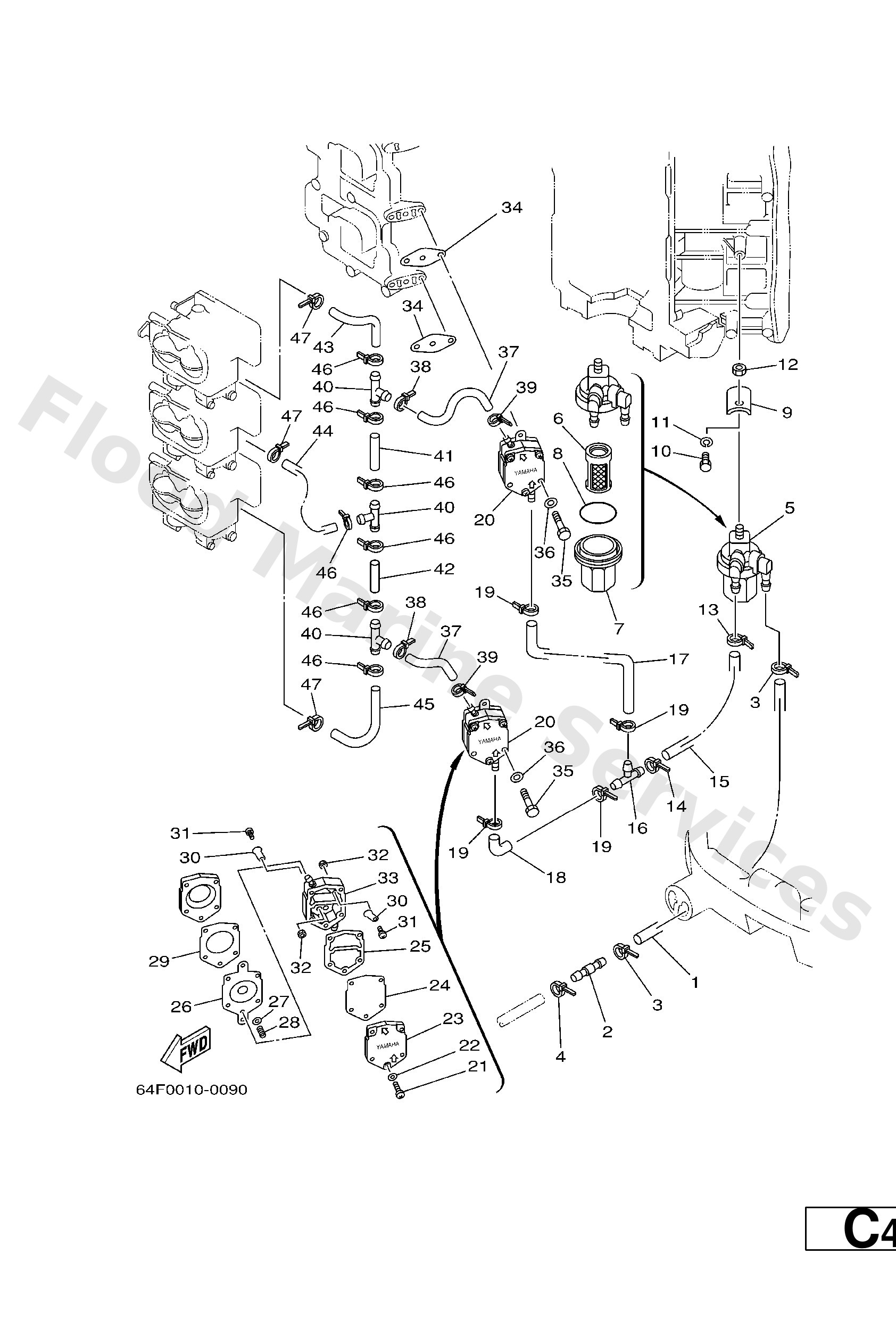

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6R3--24313--20
Pipe 3
Loading…
↗
2
6R3--24377--00
Pipe, joint 3
Loading…
↗
3
90465--11M10
Clamp
Loading…
↗
5
6R3--24560--00
Filter assembly
Loading…
↗
6
61N--24563--00
Element, filter
Loading…
↗
7
61N--24521--00
Cup, filter
Loading…
↗
8
93210--32738
O-ring(1wg)
Loading…
↗
9
648--24566--02
Bracket, filter
Loading…
↗
10
97013--06014
Bolt(gj3)
Loading…
↗
11
92903--06100
Washer(6a1)
Loading…
↗
12
95380--08600
Nut (661)
Loading…
↗
15
6G5--24314--00
Pipe 4
Loading…
↗
16
6E5--24378--00
Pipe, joint 3
Loading…
↗
17
6K7--24315--00
Pipe 5
Loading…
↗
18
6E5--24315--00
Pipe 5
Loading…
↗
20
6E5--24410--03
Fuel pump assembly
Loading…
↗
21
98503--05035
Screw, pan head (686)
Loading…
↗
22
92903--05600
Washer, plain (646)
Loading…
↗
23
6E5--24413--00
Body 2
Loading…
↗
24
6E5--24471--00
Diaphragm
Loading…
↗
25
6E5--24435--00
Gasket, body 2
Loading…
↗
26
6E5--24411--00
Diaphragm
Loading…
↗
27
648--24424--00
Seat,spring
Loading…
↗
28
6E5--24423--00
Spring, diaphragm
Loading…
↗
29
6E5--24434--02
Gasket, body
Loading…
↗
30
6A0--24421--01
Valve, check
Loading…
↗
31
6A0--14325--00
Screw, pan head
Loading…
↗
32
95380--03600
Nut (6g8)
Loading…
↗
33
6E5--24412--10
Body 1
Loading…
↗
34
650--24431--A0
Gasket,fuel pump
Loading…
↗
35
97095--06050
Bolt(jf7)
Loading…
↗
36
92995--06600
Washer, plain (646)
Loading…
↗
37
6G5--24316--10
Pipe 6
Loading…
↗
41
90445--13M03
Hose (l90)
Loading…
↗
42
90445--13M02
Hose (l90)
Loading…
↗
43
6K7--24317--00
Pipe 7
Loading…
↗
44
6K7--24318--00
Pipe, overflow
Loading…
↗
45
6K7--24319--00
Pipe, oil
Loading…
↗
