200GETO (2003)
FUEL 1

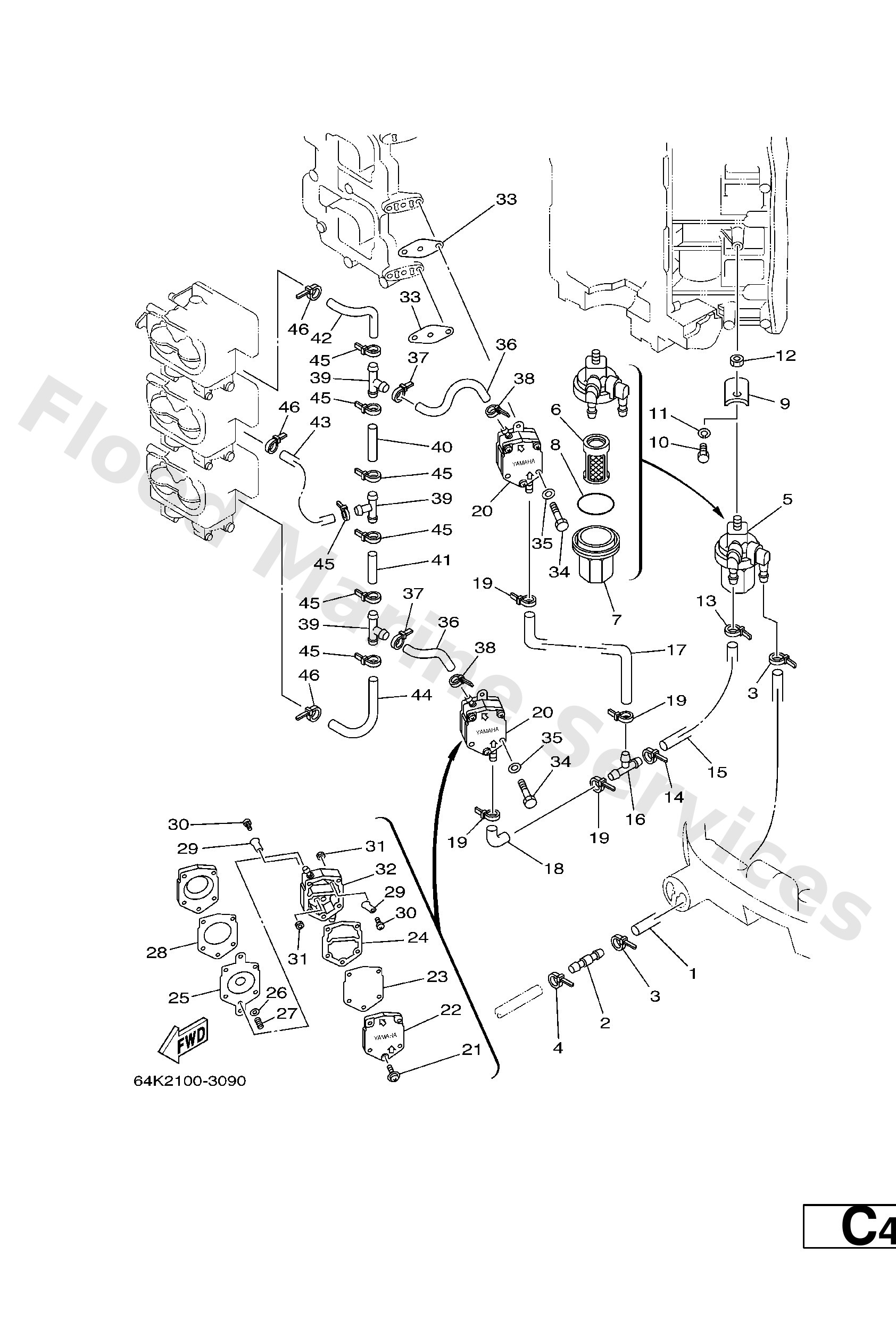

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6R3−24313−20
Pipe 3
Loading…
↗
2
6R3−24377−00
Pipe, joint 3
Loading…
↗
3
90465−11M10
Clamp
Loading…
↗
5
6R3−24560−00
Filter assembly
Loading…
↗
6
61N−24563−00
Element, filter
Loading…
↗
7
61N−24521−00
Cup, filter
Loading…
↗
8
93210−32738
O-ring(1wg)
Loading…
↗
9
648−24566−02
Bracket, filter
Loading…
↗
10
97013−06014
Bolt(gj3)
Loading…
↗
11
92903−06100
Washer(6a1)
Loading…
↗
12
95380−08600
Nut (661)
Loading…
↗
15
6G5−24314−00
Pipe 4
Loading…
↗
16
6E5−24378−00
Pipe, joint 3
Loading…
↗
17
6K7−24315−00
Pipe 5
Loading…
↗
18
6E5−24315−00
Pipe 5
Loading…
↗
20
6E5−24410−03
Fuel pump assembly
Loading…
↗
21
6E5−24444−00
Screw
Loading…
↗
22
6E5−24413−00
Body 2
Loading…
↗
23
6E5−24471−00
Diaphragm
Loading…
↗
24
6E5−24435−00
Gasket, body 2
Loading…
↗
25
6E5−24411−00
Diaphragm
Loading…
↗
26
648−24424−00
Seat,spring
Loading…
↗
27
6E5−24423−00
Spring, diaphragm
Loading…
↗
28
6E5−24434−02
Gasket, body
Loading…
↗
29
6A0−24421−01
Valve, check
Loading…
↗
30
6A0−14325−00
Screw, pan head
Loading…
↗
31
95380−03600
Nut (6g8)
Loading…
↗
32
6E5−24412−10
Body 1
Loading…
↗
33
650−24431−A0
Gasket,fuel pump
Loading…
↗
34
97095−06050
Bolt(jf7)
Loading…
↗
35
92995−06600
Washer, plain (646)
Loading…
↗
36
6G5−24316−10
Pipe 6
Loading…
↗
40
90445−13M03
Hose (l90)
Loading…
↗
41
90445−13M02
Hose (l90)
Loading…
↗
42
6K7−24317−00
Pipe 7
Loading…
↗
43
6K7−24318−00
Pipe, overflow
Loading…
↗
44
6K7−24319−00
Pipe, oil
