E115AWH (2003)
FUEL 1

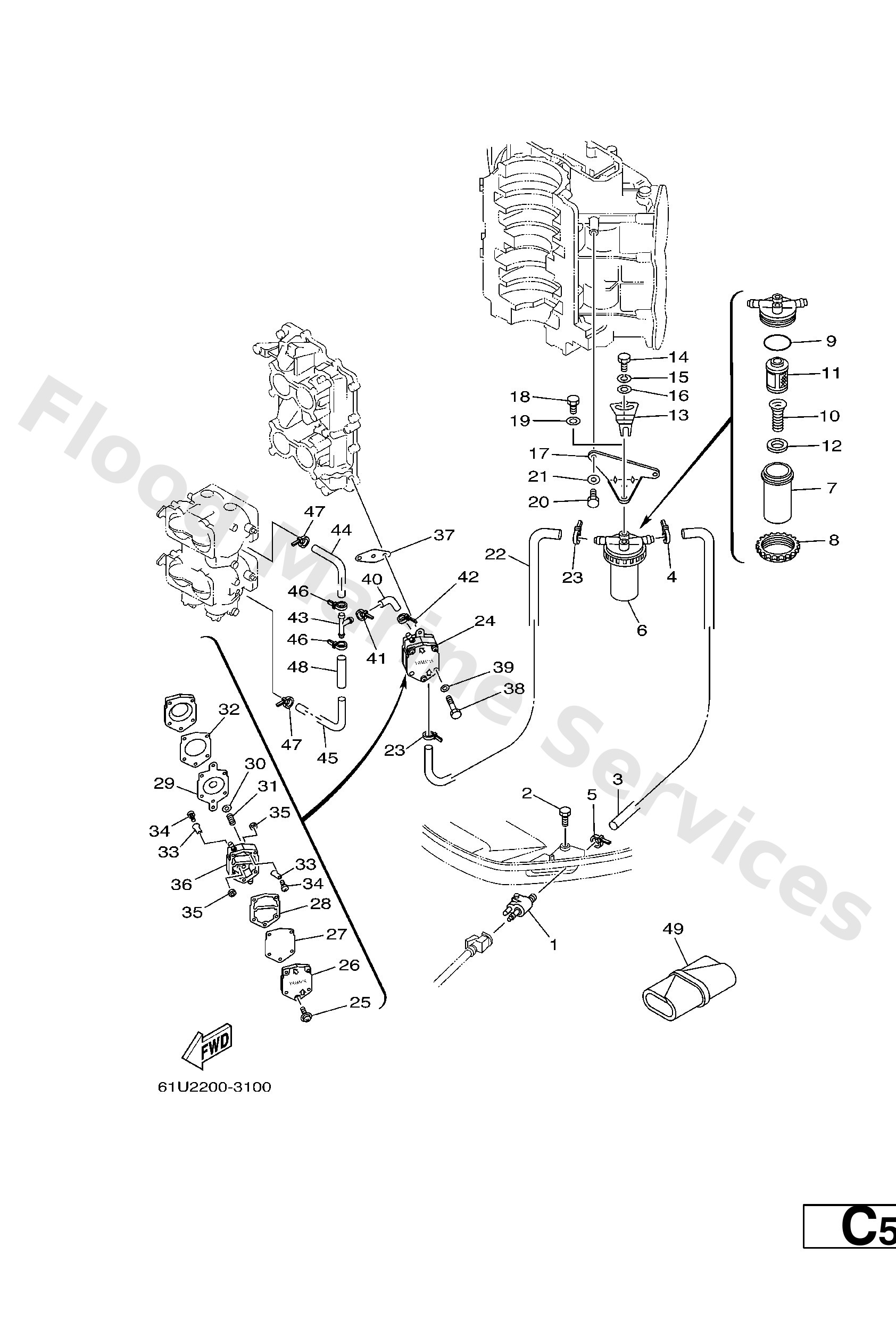

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6E5−24304−10
Fuel pipe joint comp. 1
Loading…
↗
2
97095−06028
Bolt (6g0)
Loading…
↗
3
61U−24313−00
Pipe 3
Loading…
↗
4
90465−11M10
Clamp
Loading…
↗
6
61A−24560−04
Filter assembly
Loading…
↗
7
61A−24521−00
Cup, filter
Loading…
↗
8
65L−24531−01
Nut
Loading…
↗
9
61A−24564−00
O-ring
Loading…
↗
10
61A−24577−01
Spring
Loading…
↗
11
61A−24563−00
Element, filter
Loading…
↗
12
61A−24469−00
Float, water level
Loading…
↗
13
65L−24558−00
Holder, filter
Loading…
↗
14
97095−06016
Bolt, hexagon deep recess
Loading…
↗
15
92995−06100
Washer(6a1)
Loading…
↗
16
90201−06068
Washer,plate (6k8)
Loading…
↗
17
61U−24566−01
Bracket, filter
Loading…
↗
18
97095−06014
Bolt(gj3)
Loading…
↗
19
92995−06600
Washer, plain (646)
Loading…
↗
22
61U−24314−00
Pipe 4
Loading…
↗
24
6E5−24410−03
Fuel pump assembly
Loading…
↗
25
6E5−24444−00
Screw
Loading…
↗
26
6E5−24413−00
Body 2
Loading…
↗
27
6E5−24471−00
Diaphragm
Loading…
↗
28
6E5−24435−00
Gasket, body 2
Loading…
↗
29
6E5−24411−00
Diaphragm
Loading…
↗
30
648−24424−00
Seat,spring
Loading…
↗
31
6E5−24423−00
Spring, diaphragm
Loading…
↗
32
6E5−24434−02
Gasket, body
Loading…
↗
33
6A0−24421−01
Valve, check
Loading…
↗
34
6A0−14325−00
Screw, pan head
Loading…
↗
35
95380−03600
Nut (6g8)
Loading…
↗
36
6E5−24412−10
Body 1
Loading…
↗
37
650−24431−A0
Gasket,fuel pump
Loading…
↗
38
97095−06050
Bolt(jf7)
Loading…
↗
40
6G5−24316−10
Pipe 6
Loading…
↗
43
6E5−24376−10
Pipe, joint 1
Loading…
↗
44
6G5−24318−10
Hose (l90)
Loading…
↗
45
6G5−24319−10
Pipe 9
Loading…
↗
48
90446−15M07
Hose(6g4)
Loading…
↗
49
656−W2810−02
Tool kit
Loading…
↗
