F100DET (2005)
FUEL 1

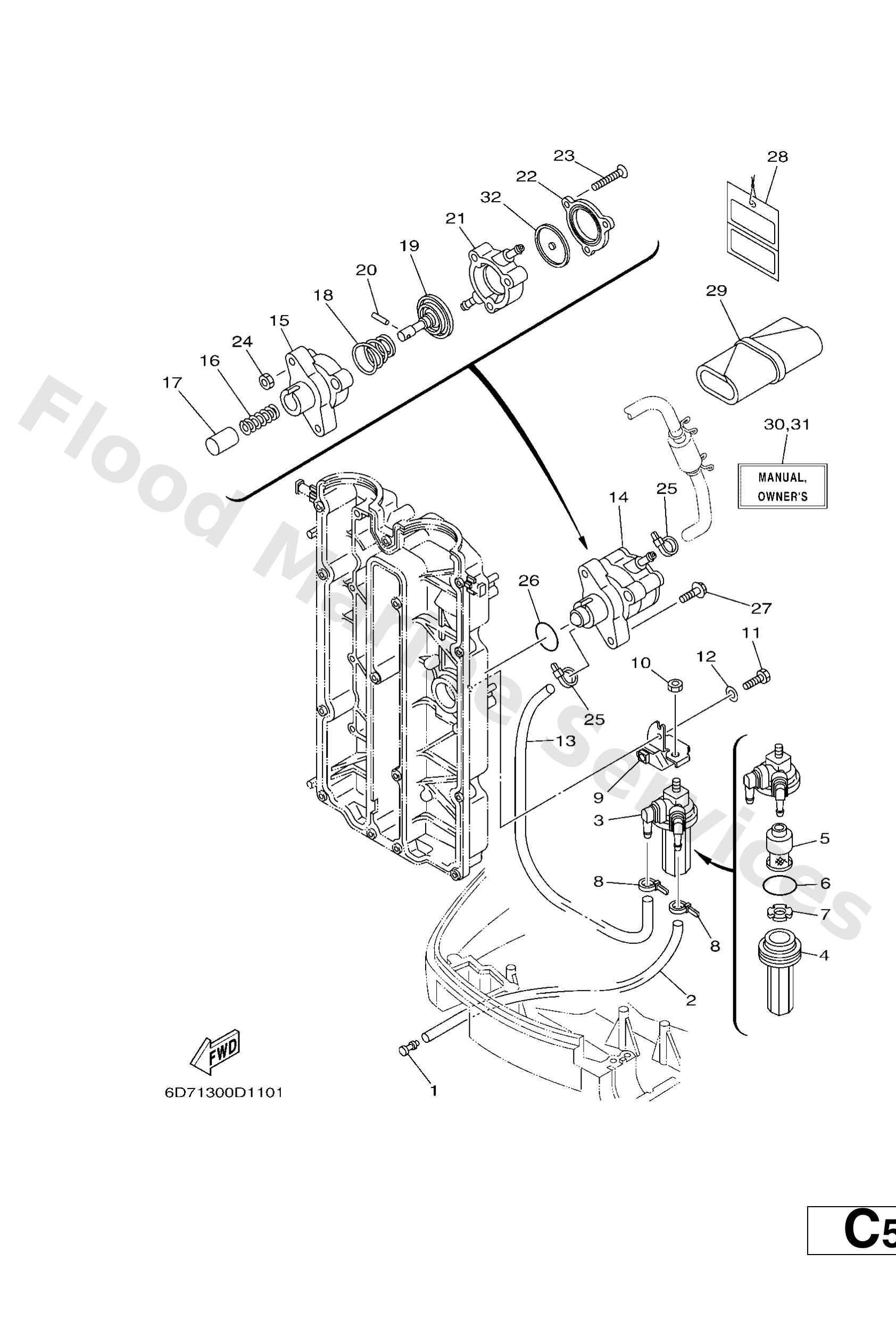

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
9044513M37
Hose (l2300)
Loading…
↗
3
68V2456001
Filter assembly
Loading…
↗
4
68V2452101
Cup, filter
Loading…
↗
5
68V2456300
Element, filter
Loading…
↗
6
9321032738
O-ring(1wg)
Loading…
↗
7
68V2446901
Float, water level
Loading…
↗
8
9046511M10
Clamp
Loading…
↗
9
6D82456600
Bracket, filter
Loading…
↗
10
9538008600
Nut (661)
Loading…
↗
11
9709506016
Bolt, hexagon deep recess
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
6D82431100
Pipe, fuel 1
Loading…
↗
14
6D82441010
Fuel pump assembly
Loading…
↗
15
68V2441200
Body 1
Loading…
↗
16
68V2445400
Spring
Loading…
↗
17
63P1313100
Plunger
Loading…
↗
18
68V2442300
Spring, diaphragm
Loading…
↗
19
68V2441100
Diaphragm
Loading…
↗
20
68V2437400
Pin
Loading…
↗
21
68V2441300
Body 2
Loading…
↗
22
6D82441400
Body 3
Loading…
↗
23
68V2444400
Screw
Loading…
↗
24
68V2414900
Nut
Loading…
↗
26
9321030682
O-ring (371)
Loading…
↗
27
9011906M83
Bolt, with washer
Loading…
↗
28
61H2819R31
-
Loading…
↗
29
67F2810001
Tool kit
Loading…
↗
30
6D72819970G0
UR (D)
Om f80b/f100d '05
Loading…
↗
30
6D72819970H0
UR (I)
Om f80b/f100d '05
Loading…
↗
30
6D72819970D0
UR (NL)
Om f80b/f100d '05
Loading…
↗
30
6D72819970S0
UR (ES)
Om f80b/f100d '05
Loading…
↗
30
6D72819970F0
UR (F)
Om f80b/f100d '05
Loading…
↗
30
6D72819970E0
UR (E)
Om f80b/f100d '05
Loading…
↗
31
6D72819980K0
UR (DK)
Om f80b/f100d '05
Loading…
↗
31
6D72819980R0
UR (GR)
Om f80b/f100d '05
Loading…
↗
31
6D72819980P0
UR (P)
Om f80b/f100d '05
Loading…
↗
31
6D72819980N0
UR (N)
Om f80b/f100d '05
Loading…
↗
31
6D72819980M0
UR (S)
Om f80b/f100d '05
Loading…
↗
31
6D72819980L0
UR (SF)
Om f80b/f100d '05
Loading…
↗
32
68V2447110
Diaphragm
Loading…
↗
