F115AET (2014)
FUEL 1

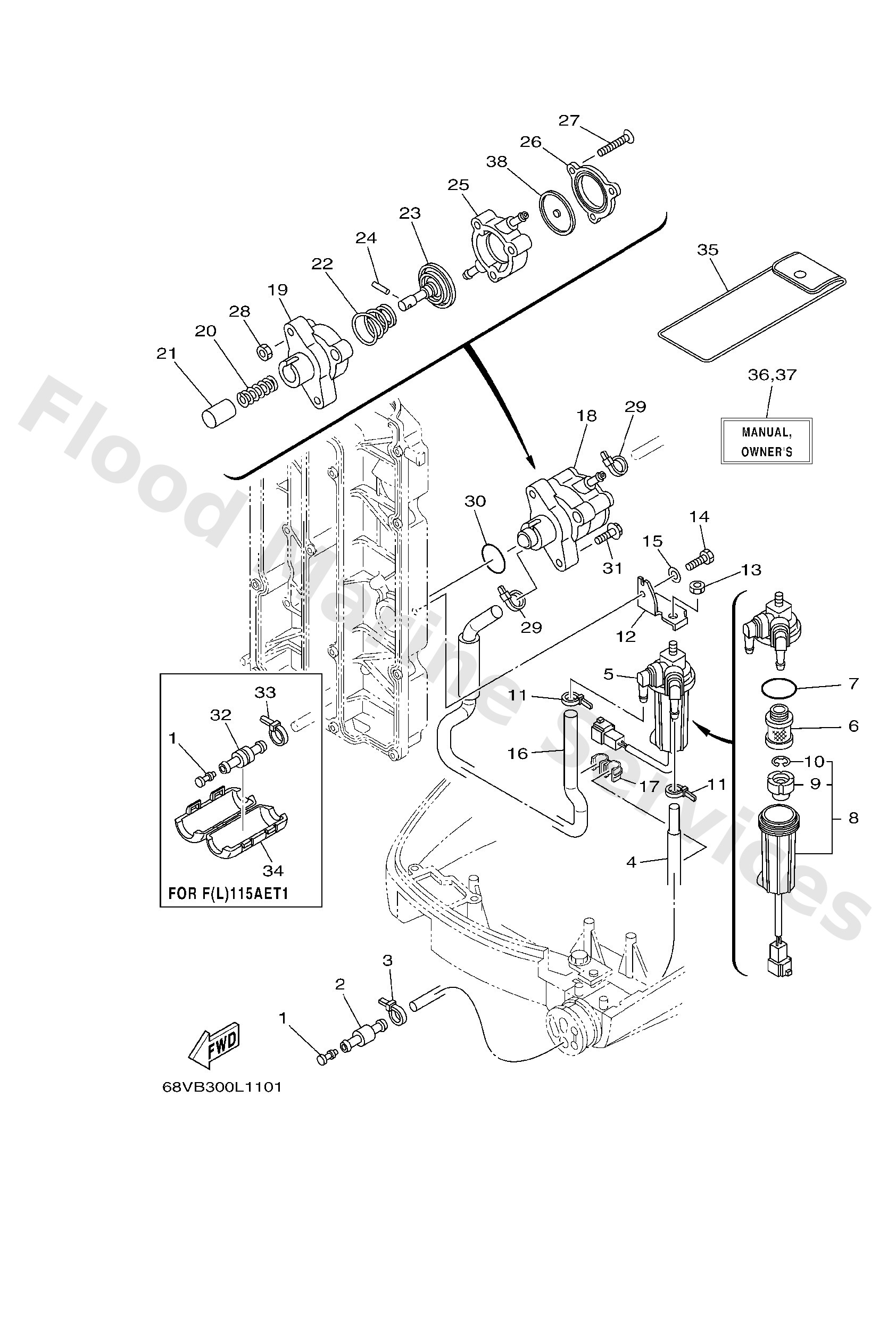

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
6R32437700
FOR F(L)115AET
Pipe, joint 3
Loading…
↗
3
9046511M10
FOR F(L)115AET
Clamp
Loading…
↗
4
68V2431410
FOR F(L)115AET
Pipe 4
Loading…
↗
4
68V2431431
FOR F(L)115AET1
Pipe 4
Loading…
↗
5
6D82456001
Filter assembly
Loading…
↗
6
6D82456300
Element, filter (with tag)
Loading…
↗
7
6D82456400
Gasket
Loading…
↗
8
6D82456200
Cup, filter (with tag)
Loading…
↗
9
6D82446900
Float, water level
Loading…
↗
10
6D82451900
Clip
Loading…
↗
12
60C2456600
Bracket, filter
Loading…
↗
13
9538008600
Nut (661)
Loading…
↗
14
9709506016
Bolt, hexagon deep recess
Loading…
↗
15
9299506600
Washer, plain (646)
Loading…
↗
16
68V2431110
FOR F(L)115AET
Pipe, fuel 1
Loading…
↗
16
68V2431120
FOR F(L)115AET1
Pipe, Fuel 1
Loading…
↗
17
9046412224
Clamp(4pe)
Loading…
↗
18
6D82441010
Fuel pump assembly
Loading…
↗
19
68V2441200
Body 1
Loading…
↗
20
68V2445400
Spring
Loading…
↗
21
63P1313100
Plunger
Loading…
↗
22
68V2442300
Spring, diaphragm
Loading…
↗
23
68V2441100
Diaphragm
Loading…
↗
24
68V2437400
Pin
Loading…
↗
25
68V2441310
Body 2
Loading…
↗
26
6D82441400
Body 3
Loading…
↗
27
68V2444400
Screw
Loading…
↗
28
68V2414900
Nut
Loading…
↗
30
9321030682
O-ring (371)
Loading…
↗
31
9011906M83
Bolt, with washer
Loading…
↗
32
6R32437710
FOR F(L)115AET1
Pipe, joint 3
Loading…
↗
34
68V2445200
FOR F(L)115AET1
Cover
Loading…
↗
35
67F2810001
AP
Tool kit
Loading…
↗
36
63P281997EF0
UR (F)
Manual,owner's
Loading…
↗
36
63P281997EH0
UR (I)
Manual,owner's
Loading…
↗
36
63P281997ED0
UR (NL)
Manual,owner's
Loading…
↗
36
63P281997EG0
UR (D)
Manual,owner's
Loading…
↗
36
63P281997ES0
UR (ES)
Manual,owner's
Loading…
↗
36
63P281997EE0
UR (E)
Manual,owner's
Loading…
↗
37
63P281998EK0
UR (DK)
Manual,owner's
Loading…
↗
37
63P281998ER0
UR (GR)
Manual,owner's
Loading…
↗
37
63P281998EP0
UR (P)
Manual,owner's
Loading…
↗
37
63P281998EN0
UR (N)
Manual,owner's
Loading…
↗
37
63P281998EM0
UR (S)
Manual,owner's
Loading…
↗
37
63P281998EL0
UR (SF)
Manual,owner's
Loading…
↗
38
68V2447110
Diaphragm
Loading…
↗
38
4EB2314400
Seal, dust
Loading…
↗
