F115BET (2015)
FUEL 1

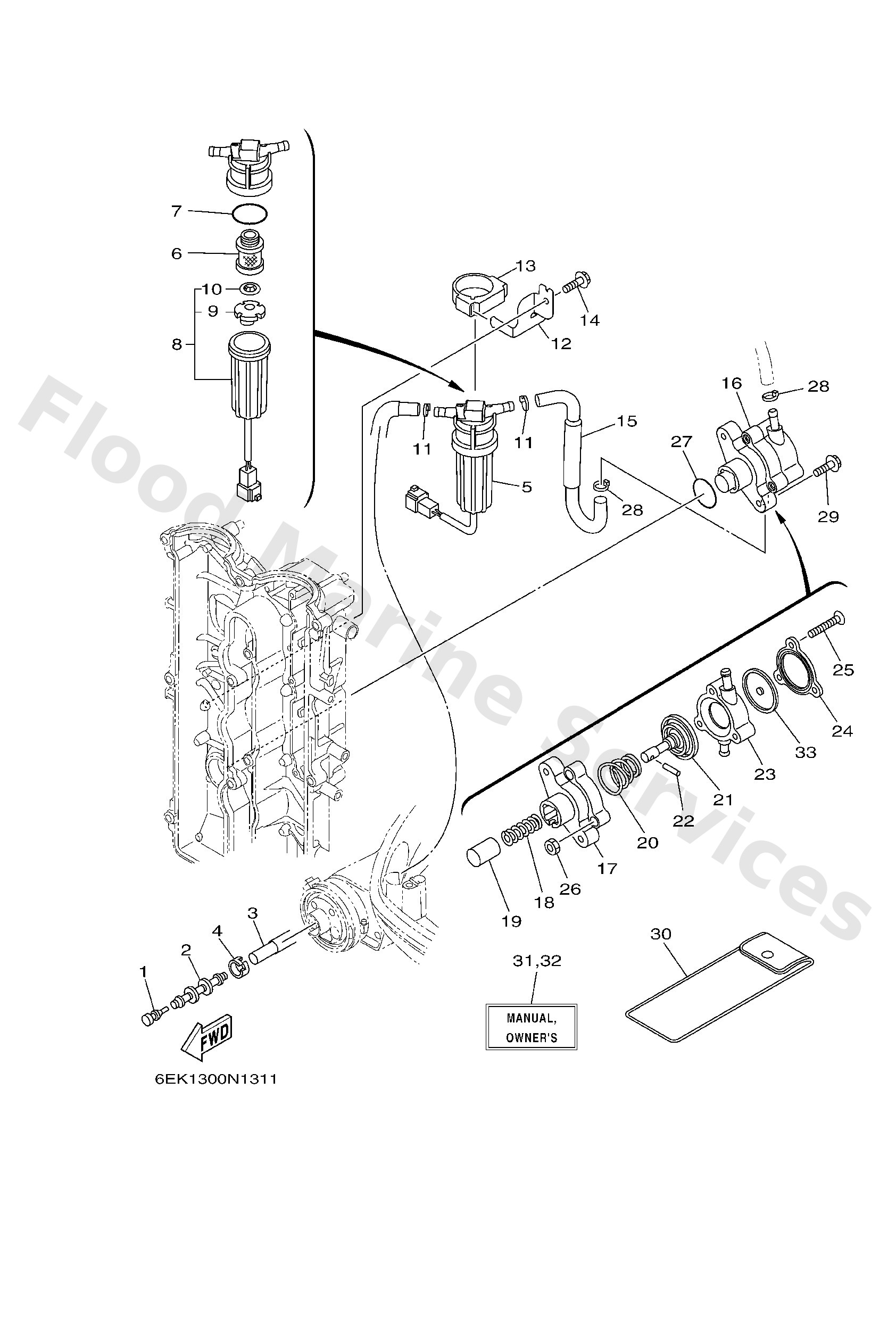

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
6AW2437701
Pipe, joint 2
Loading…
↗
3
6EK2431400
Pipe 4
Loading…
↗
4
6E52435151
Band 1
Loading…
↗
5
6EK2456000
Filter assembly
Loading…
↗
6
6D82456300
Element, filter (with tag)
Loading…
↗
7
6D82456400
Gasket
Loading…
↗
8
6D82456200
Cup, filter (with tag)
Loading…
↗
9
6D82446900
Float, water level
Loading…
↗
10
6D82451900
Clip
Loading…
↗
11
9046511M10
Clamp
Loading…
↗
12
6EK2456600
Bracket, filter
Loading…
↗
13
6EK2456800
Band, filter
Loading…
↗
14
9589506016
Bolt, flange deep recess
Loading…
↗
15
6EK2431100
Pipe, fuel 1
Loading…
↗
16
6EK2441000
Fuel pump assembly
Loading…
↗
17
68V2441200
Body 1
Loading…
↗
18
68V2445400
Spring
Loading…
↗
19
63P1313100
Plunger
Loading…
↗
20
63P2442300
Spring, diaphragm
Loading…
↗
21
68V2441100
Diaphragm
Loading…
↗
22
68V2437400
Pin
Loading…
↗
23
6EK2441300
Body 2
Loading…
↗
24
6EK2441400
Body 3
Loading…
↗
25
68V2444400
Screw
Loading…
↗
26
68V2414900
Nut
Loading…
↗
27
9321030682
O-ring (371)
Loading…
↗
29
9010506208
Bolt, washer based
Loading…
↗
30
67F2810001
AP
Tool kit
Loading…
↗
31
6EK2819971G0
UR (D)
O/m f115bet/f130aet1'15
Loading…
↗
31
6EK2819971H0
UR (I)
O/m f115bet/f130aet1'15
Loading…
↗
31
6EK2819971D0
UR (NL)
O/m f115bet/f130aet1'15
Loading…
↗
31
6EK2819971S0
UR (ES)
O/m f115bet/f130aet1'15
Loading…
↗
31
6EK2819971F0
UR (F)
O/m f115bet/f130aet1'15
Loading…
↗
31
6EK2819971E0
UR (E)
O/m f115bet/f130aet1'15
Loading…
↗
32
6EK2819981K0
UR (DK)
O/m f115bet/f130aet1'15
Loading…
↗
32
6EK2819981R0
UR (GR)
O/m f115bet/f130aet1'15
Loading…
↗
32
6EK2819981P0
UR (P)
O/m f115bet/f130aet1'15
Loading…
↗
32
6EK2819981N0
UR (N)
O/m f115bet/f130aet1'15
Loading…
↗
32
6EK2819981M0
UR (S)
O/m f115bet/f130aet1'15
Loading…
↗
32
6EK2819981L0
UR (SF)
O/m f115bet/f130aet1'15
Loading…
↗
33
68V2447110
Diaphragm
Loading…
↗
38
4EB2314400
Seal, dust
Loading…
↗
