F150AET (2004)
FUEL 1

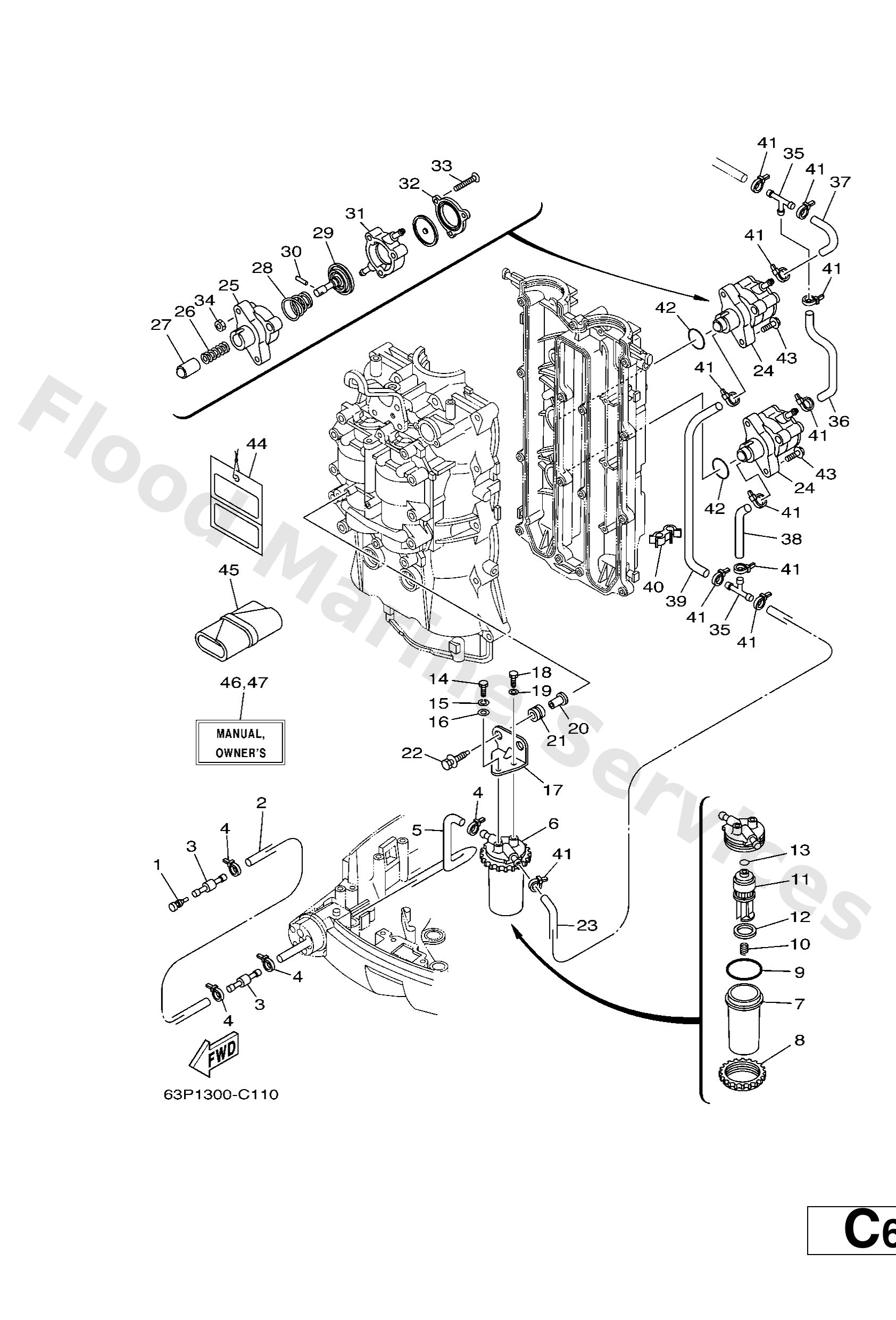

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
9044513511
Hose (L2000)
Loading…
↗
3
6R32437710
Pipe, joint 3
Loading…
↗
4
9046511M10
Clamp
Loading…
↗
5
63P2431600
Pipe 6
Loading…
↗
6
65L2456000
Filter assembly
Loading…
↗
7
61A2452100
Cup, filter
Loading…
↗
8
65L2453101
Nut
Loading…
↗
9
61A2456400
O-ring
Loading…
↗
10
65L2457700
Spring
Loading…
↗
11
65L2456300
Element, filter
Loading…
↗
12
61A2446900
Float, water level
Loading…
↗
13
65L2456400
Gasket
Loading…
↗
14
9709506016
Bolt, hexagon deep recess
Loading…
↗
15
9299506100
Washer(6a1)
Loading…
↗
16
9020106068
Washer,plate (6k8)
Loading…
↗
17
63P2456600
Bracket, filter
Loading…
↗
18
9709506014
Bolt(gj3)
Loading…
↗
19
9299506600
Washer, plain (646)
Loading…
↗
20
9038706M60
Collar (6h3)
Loading…
↗
21
9048010M23
Grommet(6k7)
Loading…
↗
22
9011906071
Bolt, with washer
Loading…
↗
23
63P2431100
Pipe, fuel 1
Loading…
↗
24
63P2441000
Fuel pump assembly
Loading…
↗
25
68V2441200
Body 1
Loading…
↗
26
68V2445400
Spring
Loading…
↗
27
63P1313100
Plunger
Loading…
↗
28
63P2442300
Spring, diaphragm
Loading…
↗
29
68V2441100
Diaphragm
Loading…
↗
30
68V2437400
Pin
Loading…
↗
31
68V2441300
Body 2
Loading…
↗
32
68V2441400
Body 3
Loading…
↗
33
68V2444400
Screw
Loading…
↗
34
68V2414900
Nut
Loading…
↗
35
6E52437800
Pipe, joint 3
Loading…
↗
36
63P2431400
Pipe 4
Loading…
↗
37
63P2431500
Pipe 5
Loading…
↗
38
63P2431200
Pipe 2
Loading…
↗
39
63P2431300
Pipe 3
Loading…
↗
40
9046412004
Clamp
Loading…
↗
42
9321030682
O-ring (371)
Loading…
↗
43
9011906M83
Bolt, with washer
Loading…
↗
44
61H2819R31
-
Loading…
↗
45
67F2810001
Tool kit
Loading…
↗
46
63P2819970E0
UR (E)
Om f150a '04
Loading…
↗
46
63P2819970F0
UR (F)
Om f150a '04
Loading…
↗
46
63P2819970S0
UR (ES)
Om f150a '04
Loading…
↗
46
63P2819970G0
UR (D)
Om f150a '04
Loading…
↗
46
63P2819970D0
UR (NL)
Om f150a '04
Loading…
↗
46
63P2819970H0
UR (I)
Om f150a '04
Loading…
↗
47
63P2819980K0
UR (DK)
Om f150a '04
Loading…
↗
47
63P2819980R0
UR (GR)
Om f150a '04
Loading…
↗
47
63P2819980P0
UR (P)
Om f150a '04
Loading…
↗
47
63P2819980N0
UR (NL)
Om f150a '04
Loading…
↗
47
63P2819980M0
UR (S)
Om f150a '04
Loading…
↗
47
63P2819980L0
UR (SF)
Om f150a '04
Loading…
↗
