F200CET (2016)
FUEL 1

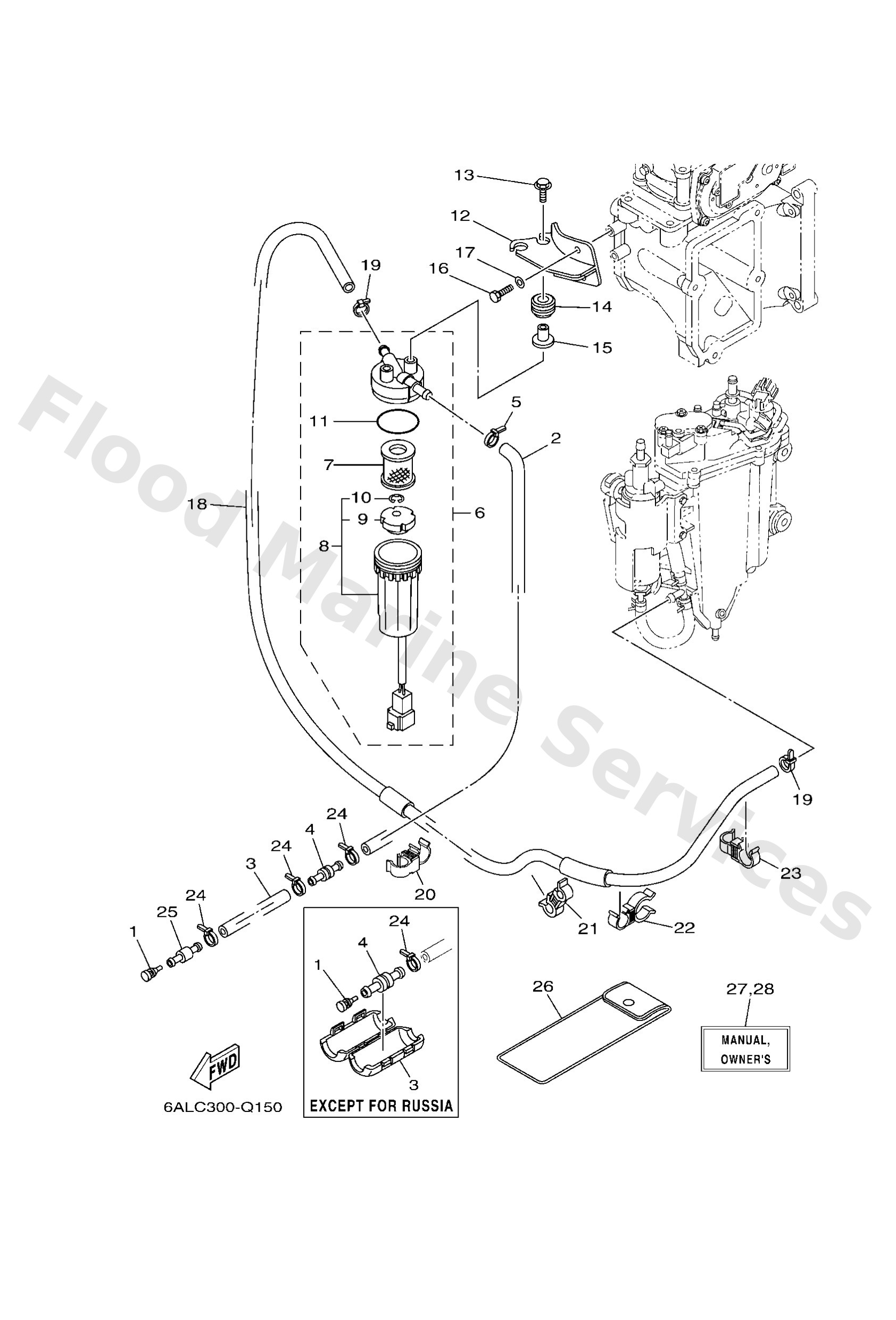

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
6P22431400
FOR RUS
Pipe 4
Loading…
↗
2
6P22431411
EXCEPT FOR RUS
Pipe 4
Loading…
↗
3
9044513511
FOR RUS
Hose (L2000)
Loading…
↗
3
68V2445200
EXCEPT FOR RUS
Cover
Loading…
↗
4
6R32437710
Pipe, joint 3
Loading…
↗
24
9046511M10
FOR RUS
Clamp
Loading…
↗
6
6P32456003
Filter assembly
Loading…
↗
7
6P32456301
Element, filter (with tag)
Loading…
↗
8
6P32456203
Cup, filter (with tag)
Loading…
↗
9
6P32446900
Float, water level
Loading…
↗
10
6P32451900
Clip
Loading…
↗
11
6P32456400
Gasket
Loading…
↗
12
6P22456611
Bracket, filter
Loading…
↗
13
9011906M17
Bolt, with washer
Loading…
↗
14
9048014018
Grommet
Loading…
↗
15
9038706289
Collar
Loading…
↗
16
9709506014
Bolt(gj3)
Loading…
↗
17
9299506600
Washer, plain (646)
Loading…
↗
18
6P22431350
FOR RUS
Pipe 3
Loading…
↗
18
6P22431360
EXCEPT FOR RUS
Pipe 3
Loading…
↗
20
9046412009
Clamp
Loading…
↗
21
9046412010
Clamp
Loading…
↗
22
9046420024
Clamp
Loading…
↗
25
6R32437700
FOR RUS
Pipe, joint 3
Loading…
↗
26
69J2810001
AP
Tool kit
Loading…
↗
27
6P2281997CE0
UR (E)
-
Loading…
↗
27
6P2281997CF0
UR (F)
-
Loading…
↗
27
6P2281997CS0
UR (ES)
-
Loading…
↗
27
6P2281997CG0
UR (D)
-
Loading…
↗
27
6P2281997CD0
UR (NL)
-
Loading…
↗
27
6P2281997CH0
UR (I)
-
Loading…
↗
28
6P2281998CK0
UR (DK)
-
Loading…
↗
28
6P2281998CR0
UR (GR)
-
Loading…
↗
28
6P2281998CP0
UR (P)
-
Loading…
↗
28
6P2281998CN0
UR (N)
-
Loading…
↗
28
6P2281998CM0
UR (S)
-
Loading…
↗
28
6P2281998CL0
UR (SF)
-
Loading…
↗
