F20GMH (2019)
FUEL 1

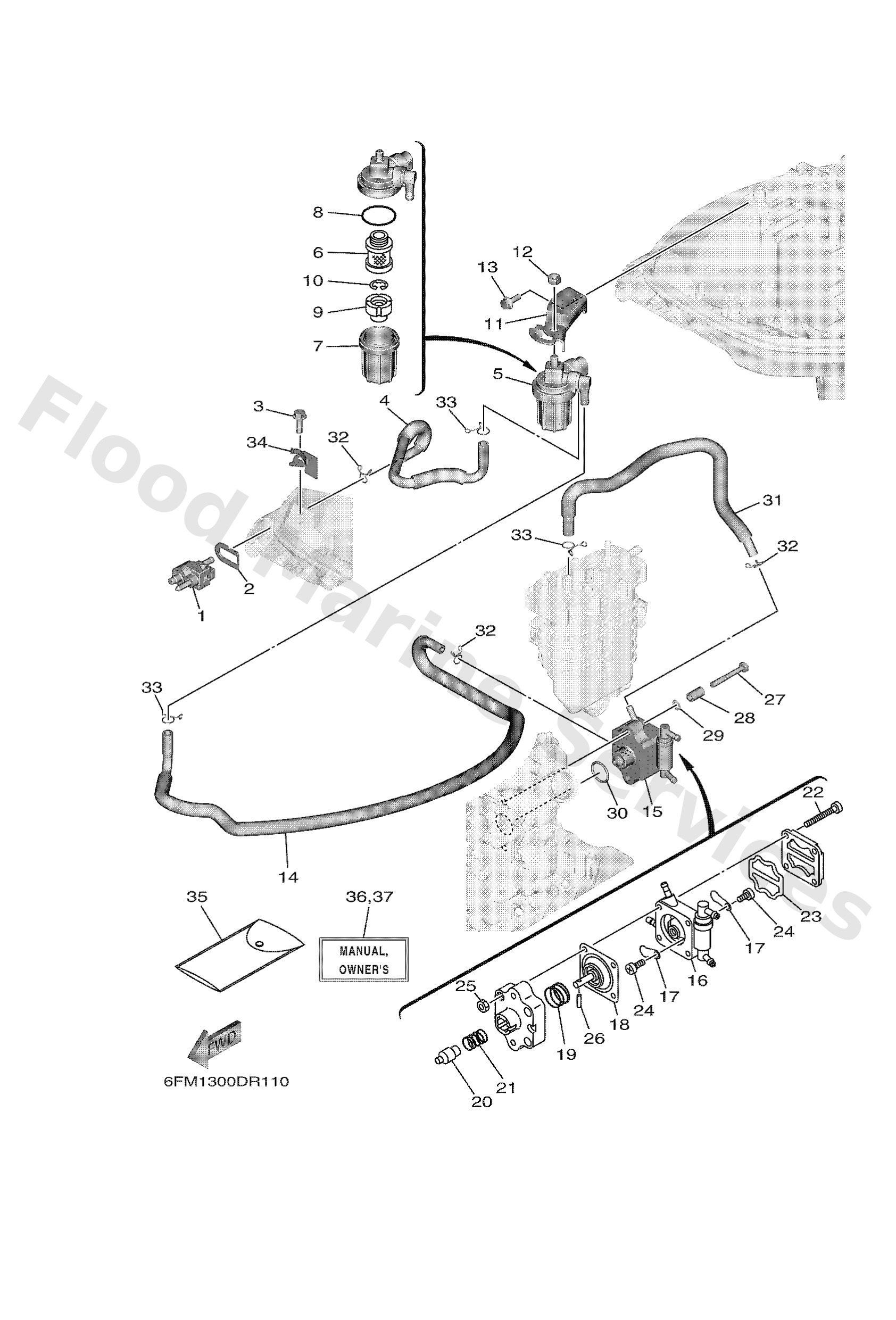

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6G12430410
Fuel pipe joint comp. 1
Loading…
↗
2
61N2432900
Seal
Loading…
↗
3
95D9506020
Bolt, flange deep recess
Loading…
↗
4
6FM2431110
Pipe, fuel 1
Loading…
↗
5
6FM2456000
Filter assembly
Loading…
↗
6
6D82456300
Element, filter (with tag)
Loading…
↗
7
6FM2452100
Cup, filter
Loading…
↗
8
6D82456400
Gasket
Loading…
↗
9
6D82446900
Float, water level
Loading…
↗
10
6D82451900
Clip
Loading…
↗
11
6FM2456600
Bracket, filter
Loading…
↗
12
9538008600
Nut (661)
Loading…
↗
13
95D7506016
Bolt, flange deep recess
Loading…
↗
14
6FM2431210
Pipe 2
Loading…
↗
15
6AH2441070
Fuel pump assembly
Loading…
↗
16
6AH2441370
Body 2
Loading…
↗
17
6A02442101
Valve, check
Loading…
↗
18
66M2441111
Diaphragm
Loading…
↗
19
66M2442300
Spring, diaphragm
Loading…
↗
20
66M1313110
Plunger
Loading…
↗
21
66M2445400
Spring
Loading…
↗
22
66M2444400
Screw
Loading…
↗
23
66M2447101
Diaphragm
Loading…
↗
24
6E71432500
Screw, pan head
Loading…
↗
25
9538004600
Nut,hex
Loading…
↗
26
66M2437400
Pin
Loading…
↗
27
9010106032
Bolt
Loading…
↗
28
9038706320
Collar
Loading…
↗
29
9020106016
Washer, plate
Loading…
↗
30
9321020M65
O-ring
Loading…
↗
31
6FM2431310
Pipe 3
Loading…
↗
32
9046709M17
Clip(6k8)
Loading…
↗
33
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
34
6FM2439600
Plate
Loading…
↗
35
62Y2810000
AP
Tool kit
Loading…
↗
36
6HY2819970E0
UR (E)
Manual,owner's
Loading…
↗
36
6HY2819970H0
UR (I)
Manual,owner's
Loading…
↗
36
6HY2819970D0
UR (NL)
Manual,owner's
Loading…
↗
36
6HY2819970G0
UR (D)
Manual,owner's
Loading…
↗
36
6HY2819970S0
UR (ES)
Manual,owner's
Loading…
↗
36
6HY2819970F0
UR (F)
Manual,owner's
Loading…
↗
37
6HY2819980K0
UR (DK)
Manual,owner's
Loading…
↗
37
6HY2819980R0
UR (GR)
Manual,owner's
Loading…
↗
37
6HY2819980P0
UR (P)
Manual,owner's
Loading…
↗
37
6HY2819980N0
UR (N)
Manual,owner's
Loading…
↗
37
6HY2819980M0
UR (S)
Manual,owner's
Loading…
↗
37
6HY2819980L0
UR (SF)
Manual,owner's
Loading…
↗
