F225CET (2014)
FUEL 1

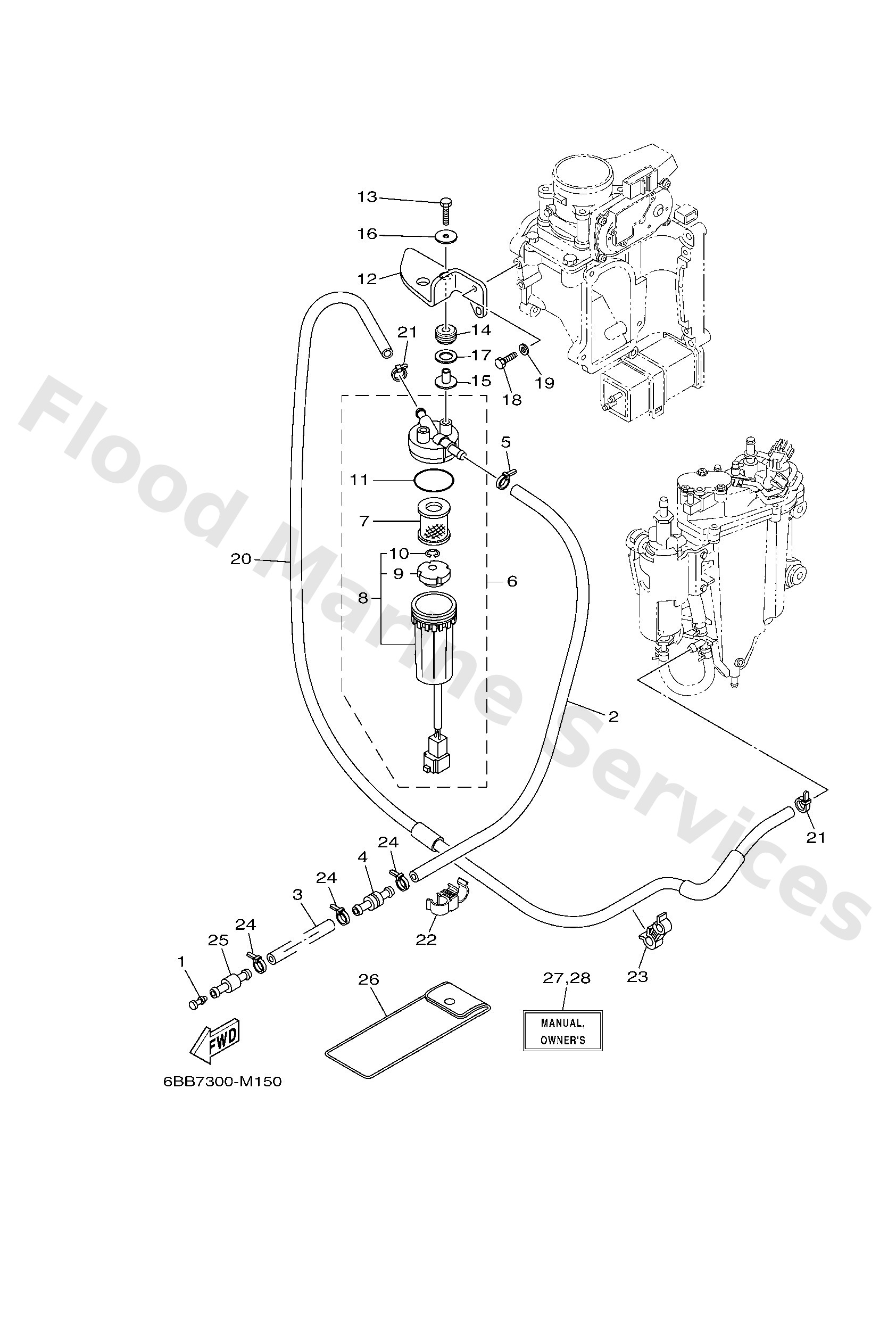

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
6P22431400
Pipe 4
Loading…
↗
3
9044513511
-
Loading…
↗
4
6R32437710
Pipe, joint 3
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
6P32456003
Filter assembly
Loading…
↗
7
6P32456301
Element, filter (with tag)
Loading…
↗
8
6P32456203
Cup, filter (with tag)
Loading…
↗
9
6P32446900
Float, water level
Loading…
↗
10
6P32451900
Clip
Loading…
↗
11
6P32456400
Gasket
Loading…
↗
12
6BB2456600
Bracket, filter
Loading…
↗
13
9709506030
Bolt(jf7)
Loading…
↗
14
69L8551600
Spacer
Loading…
↗
15
9038706M03
Collar (676)
Loading…
↗
16
9020106101
Washer, plate
Loading…
↗
17
9020115021
Washer, plate
Loading…
↗
18
9709506016
Bolt, hexagon deep recess
Loading…
↗
19
9299506600
Washer, plain (646)
Loading…
↗
20
6P22431330
Pipe 3
Loading…
↗
22
9046412009
Clamp
Loading…
↗
23
9046412010
Clamp
Loading…
↗
25
6R32437700
Pipe, joint 3
Loading…
↗
26
69J2810001
AP
Tool kit
Loading…
↗
27
6P2281997AE0
UR (E)
Manual,owner's
Loading…
↗
27
6P2281997AG0
UR (D)
Manual,owner's
Loading…
↗
27
6P2281997AF0
UR (F)
Manual,owner's
Loading…
↗
27
6P2281997AS0
UR (ES)
Manual,owner's
Loading…
↗
27
6P2281997AD0
UR (NL)
Manual,owner's
Loading…
↗
27
6P2281997AH0
UR (I)
Manual,owner's
Loading…
↗
28
6P2281998AL0
UR (SF)
Manual,owner's
Loading…
↗
28
6P2281998AM0
UR (S)
Manual,owner's
Loading…
↗
28
6P2281998AN0
UR (N)
Manual,owner's
Loading…
↗
28
6P2281998AP0
UR (P)
Manual,owner's
Loading…
↗
28
6P2281998AR0
UR (GR)
Manual,owner's
Loading…
↗
28
6P2281998AK0
UR (DK)
Manual,owner's
Loading…
↗
