F225CET (2015)
FUEL 1

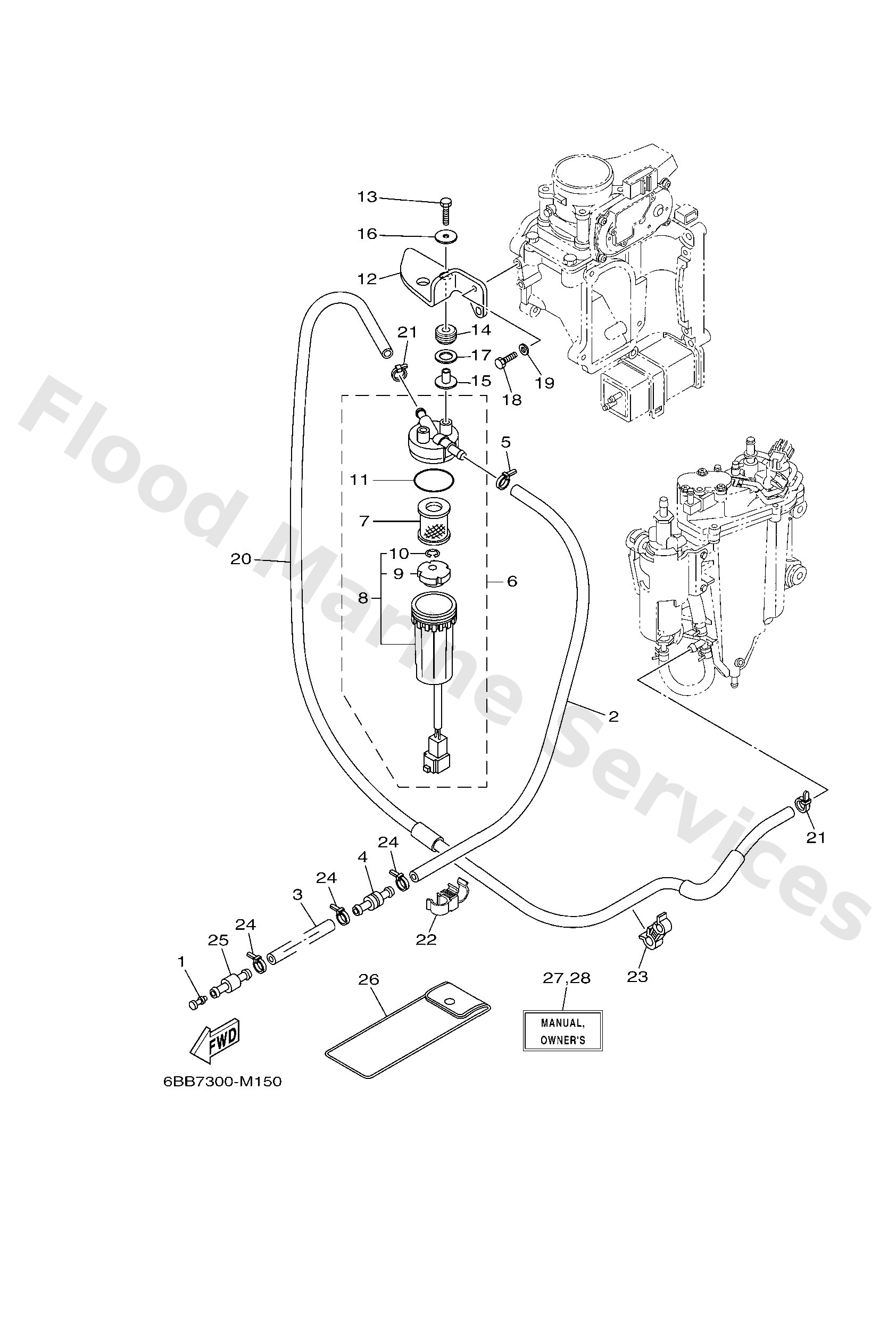

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
6P22431400
Pipe 4
Loading…
↗
3
9044513511
Hose (L2000)
Loading…
↗
4
6R32437710
Pipe, joint 3
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
6P32456003
Filter assembly
Loading…
↗
7
6P32456301
Element, filter (with tag)
Loading…
↗
8
6P32456203
Cup, filter (with tag)
Loading…
↗
9
6P32446900
Float, water level
Loading…
↗
10
6P32451900
Clip
Loading…
↗
11
6P32456400
Gasket
Loading…
↗
12
6BB2456600
Bracket, filter
Loading…
↗
13
9709506030
Bolt(jf7)
Loading…
↗
14
69L8551600
Spacer
Loading…
↗
15
9038706M03
Collar (676)
Loading…
↗
16
9020106101
Washer, plate
Loading…
↗
17
9020115021
Washer, plate
Loading…
↗
18
9709506016
Bolt, hexagon deep recess
Loading…
↗
19
9299506600
Washer, plain (646)
Loading…
↗
20
6P22431330
Pipe 3
Loading…
↗
22
9046412009
Clamp
Loading…
↗
23
9046412010
Clamp
Loading…
↗
25
6R32437700
Pipe, joint 3
Loading…
↗
26
69J2810001
AP
Tool kit
Loading…
↗
27
6P2281997BE0
UR (E)
-
Loading…
↗
27
6P2281997BG0
UR (D)
-
Loading…
↗
27
6P2281997BH0
UR (I)
-
Loading…
↗
27
6P2281997BD0
UR (NL)
-
Loading…
↗
27
6P2281997BS0
UR (ES)
-
Loading…
↗
27
6P2281997BF0
UR (F)
-
Loading…
↗
28
6P2281998BK0
UR (DK)
-
Loading…
↗
28
6P2281998BR0
UR (GR)
-
Loading…
↗
28
6P2281998BP0
UR (P)
-
Loading…
↗
28
6P2281998BN0
UR (N)
-
Loading…
↗
28
6P2281998BM0
UR (S)
-
Loading…
↗
28
6P2281998BL0
UR (SF)
-
Loading…
↗
