F300CET (2020)
FUEL 1

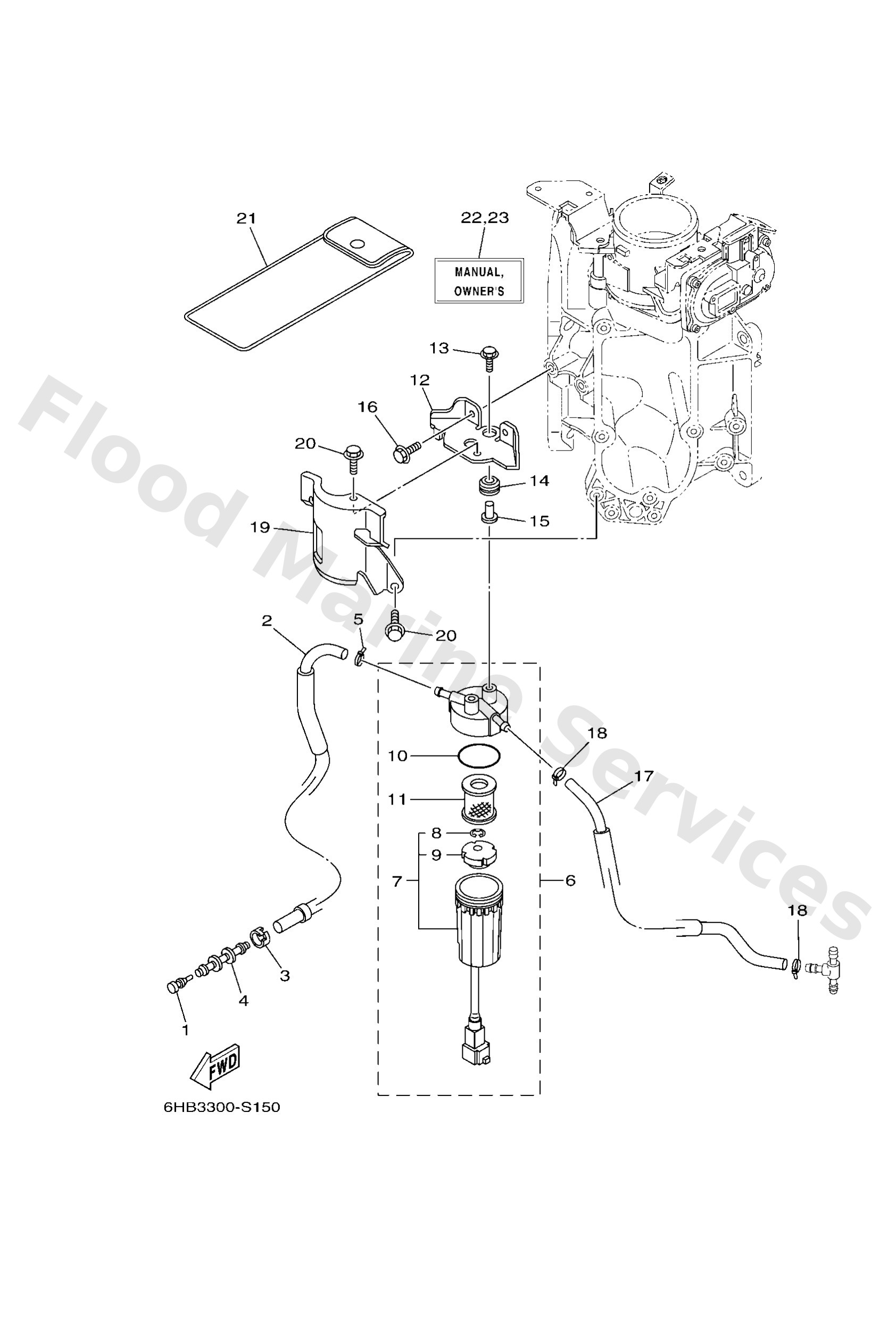

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
6CB2431411
Pipe 4
Loading…
↗
3
6E52435151
Band 1
Loading…
↗
4
6AW2437701
Pipe, joint 2
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
6P32456022
Filter assembly
Loading…
↗
7
6P32456221
Cup, filter (with tag)
Loading…
↗
8
6P32451900
Clip
Loading…
↗
9
6P32446900
Float, water level
Loading…
↗
10
6P32456400
Gasket
Loading…
↗
11
6P32456301
Element, filter (with tag)
Loading…
↗
12
6CB2456600
Bracket, filter
Loading…
↗
13
9011906309
Bolt, with washer
Loading…
↗
14
9048010M23
Grommet(6k7)
Loading…
↗
15
9038706289
Collar
Loading…
↗
16
95D9506016
Bolt, flange deep recess
Loading…
↗
17
6CB2431310
Pipe 3
Loading…
↗
19
6CB2459601
Cover
Loading…
↗
20
95D9506014
Bolt, flange deep recess
Loading…
↗
21
69J2810002
AP
-
Loading…
↗
22
6HB2819971H0
UR (I)
Manual,owner's
Loading…
↗
22
6HB2819971E0
UR (E)
Manual,owner's
Loading…
↗
22
6HB2819971F0
UR (F)
Manual,owner's
Loading…
↗
22
6HB2819971S0
UR (ES)
Manual,owner's
Loading…
↗
22
6HB2819971G0
UR (D)
Manual,owner's
Loading…
↗
22
6HB2819971D0
UR (NL)
Manual,owner's
Loading…
↗
23
6HB2819981R0
UR (GR)
Manual,owner's
Loading…
↗
23
6HB2819981P0
UR (P)
Manual,owner's
Loading…
↗
23
6HB2819981N0
UR (N)
Manual,owner's
Loading…
↗
23
6HB2819981M0
UR (S)
Manual,owner's
Loading…
↗
23
6HB2819981L0
UR (SF)
Manual,owner's
Loading…
↗
23
6HB2819981K0
UR (DK)
Manual,owner's
Loading…
↗
