F4AMH (2005)
FUEL 1

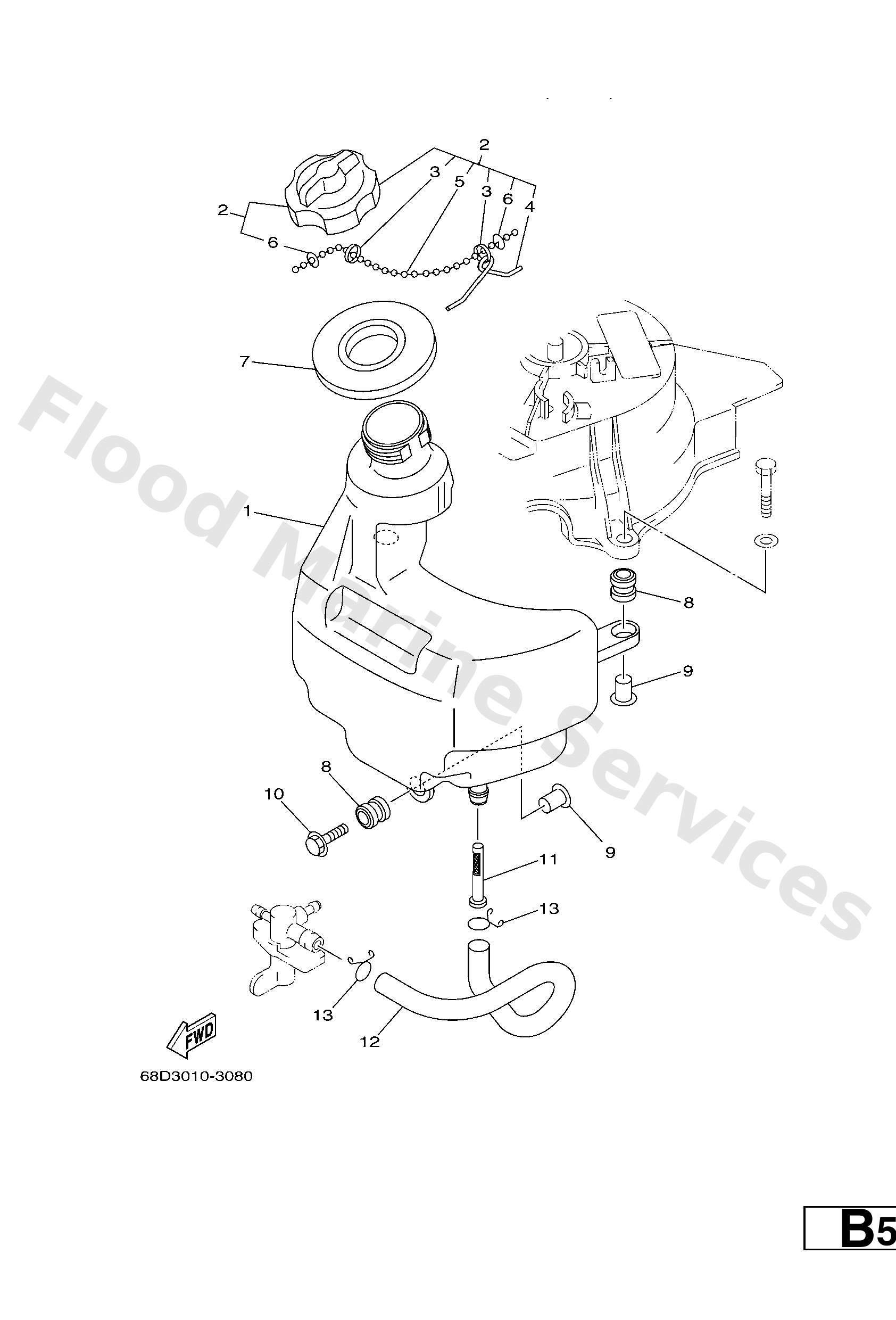

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
68DF411100
Tank, Fuel
Loading…
↗
2
67D2461002
Cap assembly
Loading…
↗
3
9050110260
Spring, safety 6152463500
Loading…
↗
4
6242463400
Hook, chain ball
Loading…
↗
5
69M2463300
Chain, ball
Loading…
↗
6
6H12175700
Washer, special 1
Loading…
↗
7
6L52464100
Gasket, cap 1
Loading…
↗
8
6A08231700
Damper, ignition coil
Loading…
↗
9
6244254200
Collar
Loading…
↗
10
9011906M88
Bolt, with washer
Loading…
↗
11
6L52425100
Strainer 1
Loading…
↗
12
68DF431100
Pipe, Fuel 1
Loading…
↗
13
9046713M13
Clip(6m6)
Loading…
↗
