F5AMH (2019)
FUEL 1

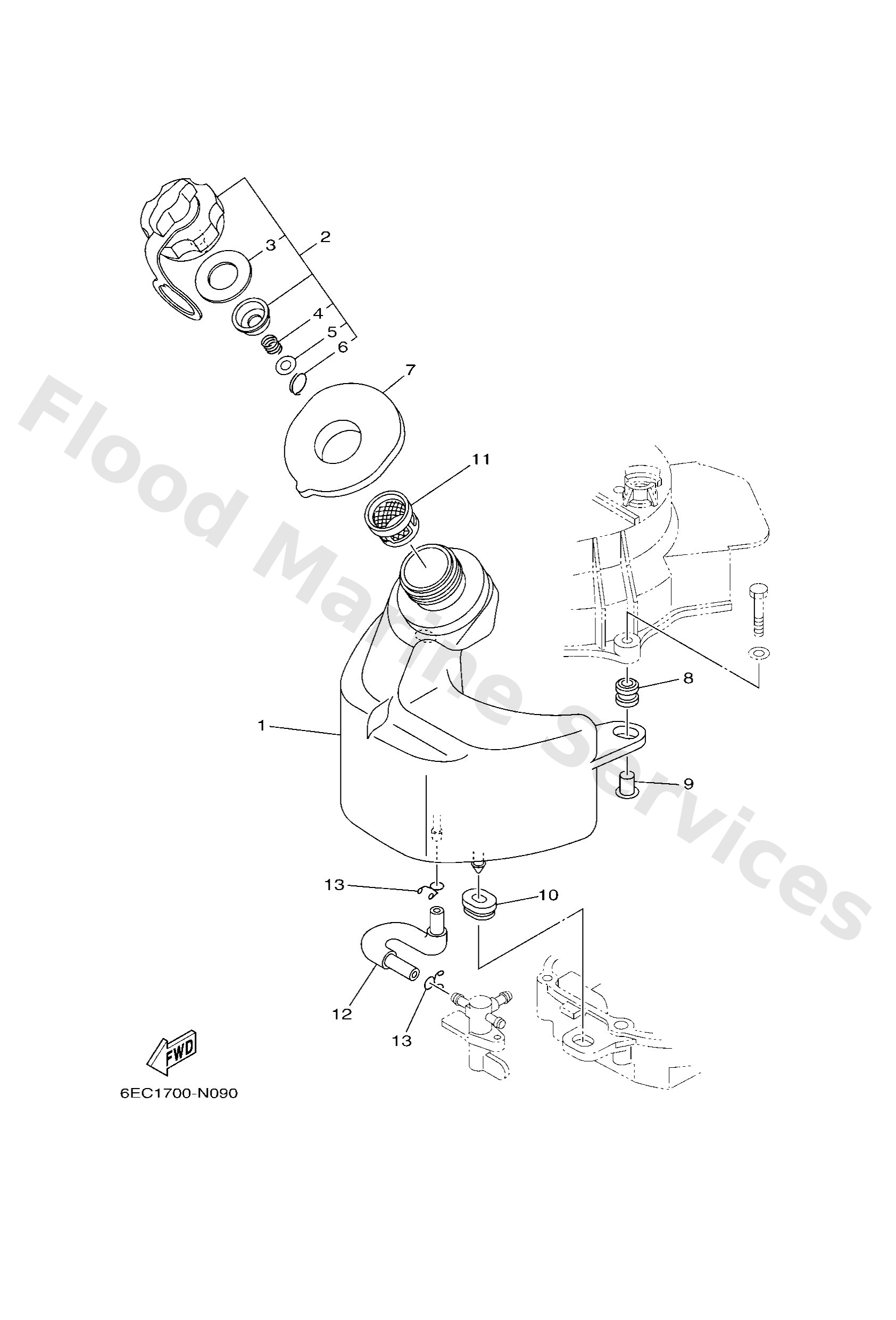

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6EEF411101
Tank, fuel
Loading…
↗
2
6BX2461001
Cap assembly
Loading…
↗
3
68D2461200
Packing, cap
Loading…
↗
4
90501100A5
Spring, compression
Loading…
↗
5
9299004200
Ybs66-4 washer, plain
Loading…
↗
6
90468100A0
Clip
Loading…
↗
7
6BX2464100
Gasket, cap 1
Loading…
↗
8
6A08231700
Damper, ignition coil
Loading…
↗
9
9038706119
Collar
Loading…
↗
10
9048001559
Grommet(4bh)
Loading…
↗
11
6EEF416700
Strainer
Loading…
↗
12
6EEF431100
Pipe, fuel 1
Loading…
↗
13
9046709M09
Clip(6k8)
Loading…
↗
