F80AET (2005)
FUEL 1

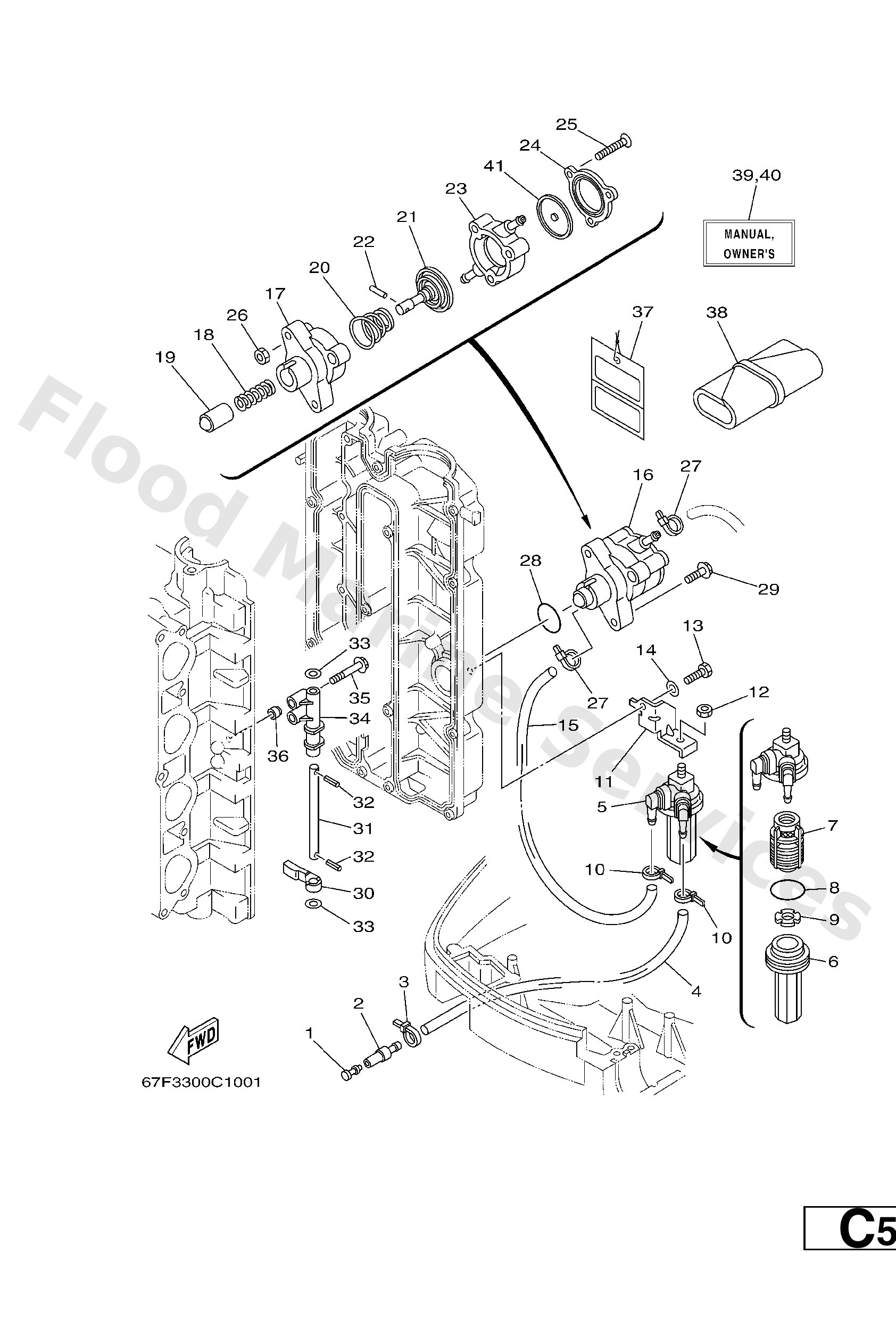

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
6R32437700
Pipe, joint 3
Loading…
↗
3
9046511M10
Clamp
Loading…
↗
4
9044513M27
Hose (l950)
Loading…
↗
5
60C2456000
Filter assembly
Loading…
↗
6
68V2452101
Cup, filter
Loading…
↗
7
61N2456300
Element, filter
Loading…
↗
8
9321032738
O-ring(1wg)
Loading…
↗
9
68V2446901
Float, water level
Loading…
↗
11
68V2456600
Bracket, Filter
Loading…
↗
12
9538008600
Nut (661)
Loading…
↗
13
9709506016
Bolt, hexagon deep recess
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
15
9044513M11
Pipe, fuel 1
Loading…
↗
16
68V2441000
Fuel pump assembly
Loading…
↗
17
68V2441200
Body 1
Loading…
↗
18
68V2445400
Spring
Loading…
↗
19
68V1313100
Plunger
Loading…
↗
20
68V2442300
Spring, diaphragm
Loading…
↗
21
68V2441100
Diaphragm
Loading…
↗
22
68V2437400
Pin
Loading…
↗
23
68V2441300
Body 2
Loading…
↗
24
68V2441400
Body 3
Loading…
↗
25
68V2444400
Screw
Loading…
↗
26
68V2414900
Nut
Loading…
↗
28
9321030682
O-ring (371)
Loading…
↗
29
9011906M83
Bolt, with washer
Loading…
↗
30
67F2457500
Lever, fuel change
Loading…
↗
31
68V2449500
Shaft
Loading…
↗
32
9160925014
Pin, Spring
Loading…
↗
33
9020108M12
Washer plate (682)
Loading…
↗
34
67F2449100
Bracket, fuel pump
Loading…
↗
35
9011907235
Bolt, with washer
Loading…
↗
36
9180908006
Pin, dowel
Loading…
↗
37
61H2819R31
-
Loading…
↗
38
4EB2314400
Seal, dust
Loading…
↗
38
67F2810001
Tool kit
Loading…
↗
39
67F2819978E0
UR (E)
F100b/f100a/f80a '05
Loading…
↗
39
67F2819978F0
UR (F)
F100b/f100a/f80a '05
Loading…
↗
39
67F2819978S0
UR (ES)
F100b/f100a/f80a '05
Loading…
↗
39
67F2819978G0
UR (D)
F100b/f100a/f80a '05
Loading…
↗
39
67F2819978D0
UR (NL)
F100b/f100a/f80a '05
Loading…
↗
39
67F2819978H0
UR (I)
F100b/f100a/f80a '05
Loading…
↗
40
67F281998AK0
UR (DK)
F100b/f100a/f80a '05
Loading…
↗
40
67F281998AR0
UR (GR)
O/m f100b/f100a/f80a '05
Loading…
↗
40
67F281998AP0
UR (P)
F100b/f100a/f80a '05
Loading…
↗
40
67F281998AN0
UR (N)
F100b/f100a/f80a '05
Loading…
↗
40
67F281998AM0
UR (S)
F100b/f100a/f80a '05
Loading…
↗
40
67F281998AL0
UR (SF)
F100b/f100a/f80a '05
Loading…
↗
41
68V2447110
Diaphragm
Loading…
↗
