F80BET (2005)
FUEL 1

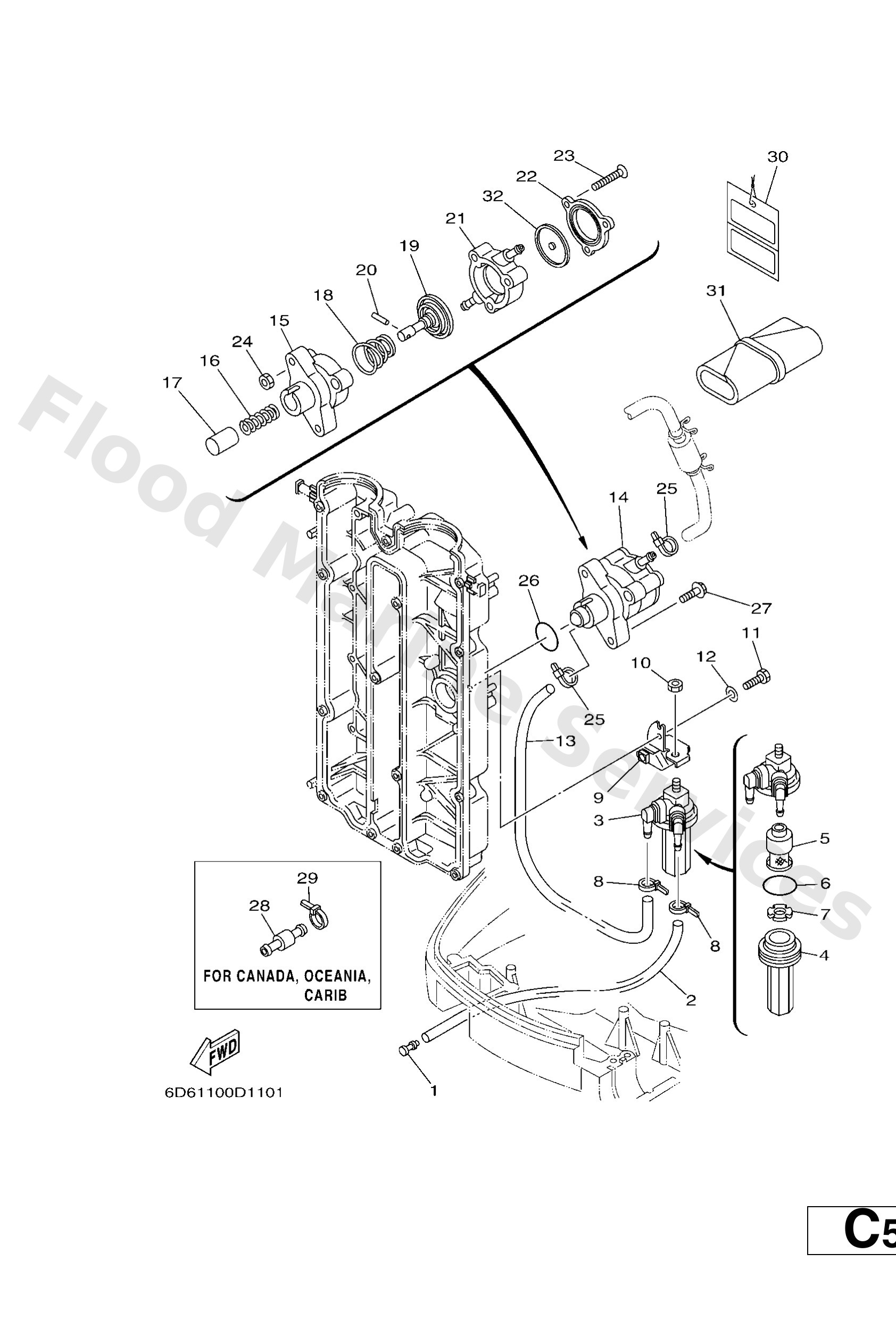

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
9044513M37
FOR USA
Hose (l2300)
Loading…
↗
2
9044513M27
FOR CAN,OCE,CAR
Hose (l950)
Loading…
↗
3
68V2456001
Filter assembly
Loading…
↗
4
68V2452101
Cup, filter
Loading…
↗
5
68V2456300
Element, filter
Loading…
↗
6
9321032738
O-ring(1wg)
Loading…
↗
7
68V2446901
Float, water level
Loading…
↗
29
9046511M10
FOR CAN,OCE,CAR
Clamp
Loading…
↗
9
6D82456600
Bracket, filter
Loading…
↗
10
9538008600
Nut (661)
Loading…
↗
11
9709506016
Bolt, hexagon deep recess
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
6D82431100
Pipe, fuel 1
Loading…
↗
14
6D82441010
Fuel pump assembly
Loading…
↗
15
68V2441200
Body 1
Loading…
↗
16
68V2445400
Spring
Loading…
↗
17
63P1313100
Plunger
Loading…
↗
18
68V2442300
Spring, diaphragm
Loading…
↗
19
68V2441100
Diaphragm
Loading…
↗
20
68V2437400
Pin
Loading…
↗
21
68V2441300
Body 2
Loading…
↗
22
6D82441400
Body 3
Loading…
↗
23
68V2444400
Screw
Loading…
↗
24
68V2414900
Nut
Loading…
↗
26
9321030682
O-ring (371)
Loading…
↗
27
9011906M83
Bolt, with washer
Loading…
↗
28
6R32437700
FOR CAN,OCE,CAR
Pipe, joint 3
Loading…
↗
30
61H2819R31
-
Loading…
↗
31
67F2810001
AP
Tool kit
Loading…
↗
32
68V2447110
Diaphragm
Loading…
↗
