F80DET (2025)
FUEL 1

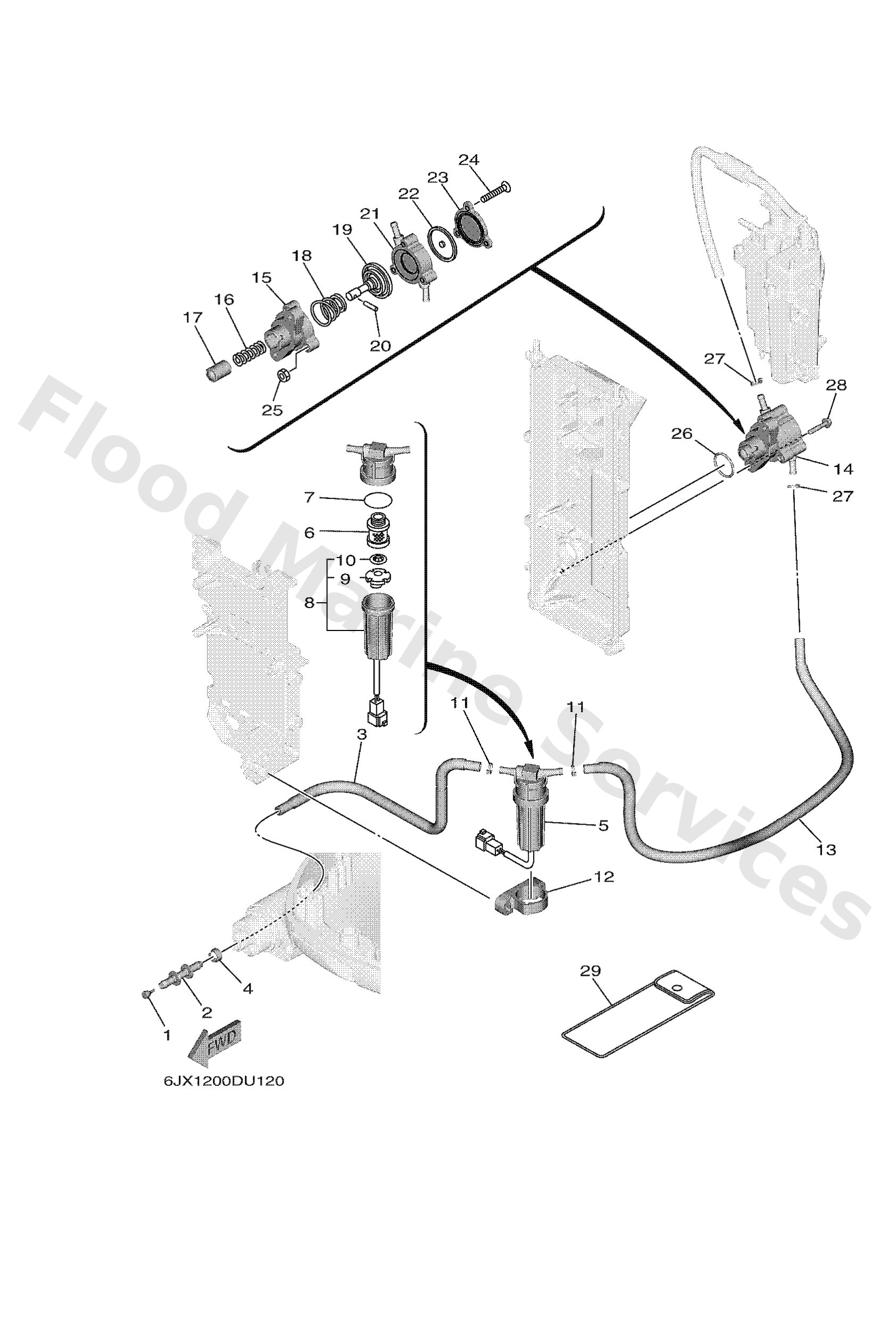

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554701
Damper
Loading…
↗
2
6AW2437701
Pipe, joint 2
Loading…
↗
3
6FP2431400
Pipe 4
Loading…
↗
4
6E52435151
Band 1
Loading…
↗
5
6EK2456000
Filter assembly
Loading…
↗
6
6D82456300
Element, filter (with tag)
Loading…
↗
7
6D82456400
Gasket
Loading…
↗
8
6D8WS24B00
Cup, filter (with tag)
Loading…
↗
9
6D82446900
Float, water level
Loading…
↗
10
6D82451900
Clip
Loading…
↗
11
9046511M10
Clamp
Loading…
↗
12
6FP2456801
Band, filter
Loading…
↗
13
6FP2431100
Pipe, fuel 1
Loading…
↗
14
6FP2441000
Fuel pump assembly
Loading…
↗
15
68V2441200
Body 1
Loading…
↗
16
68V2445400
Spring
Loading…
↗
17
68V1313100
Plunger
Loading…
↗
18
63P2442300
Spring, diaphragm
Loading…
↗
19
68V2441100
Diaphragm
Loading…
↗
20
68V2437400
Pin
Loading…
↗
21
6FP2441300
Body 2
Loading…
↗
22
68V2447110
Diaphragm
Loading…
↗
23
6FP2441400
Body 3
Loading…
↗
24
68V2444400
Screw
Loading…
↗
25
68V2414900
Nut
Loading…
↗
26
9321030682
O-ring (371)
Loading…
↗
28
9010506208
Bolt, washer based
Loading…
↗
29
67F2810003
AP
Tool kit
Loading…
↗
