FL200CET (2020)
FUEL 1

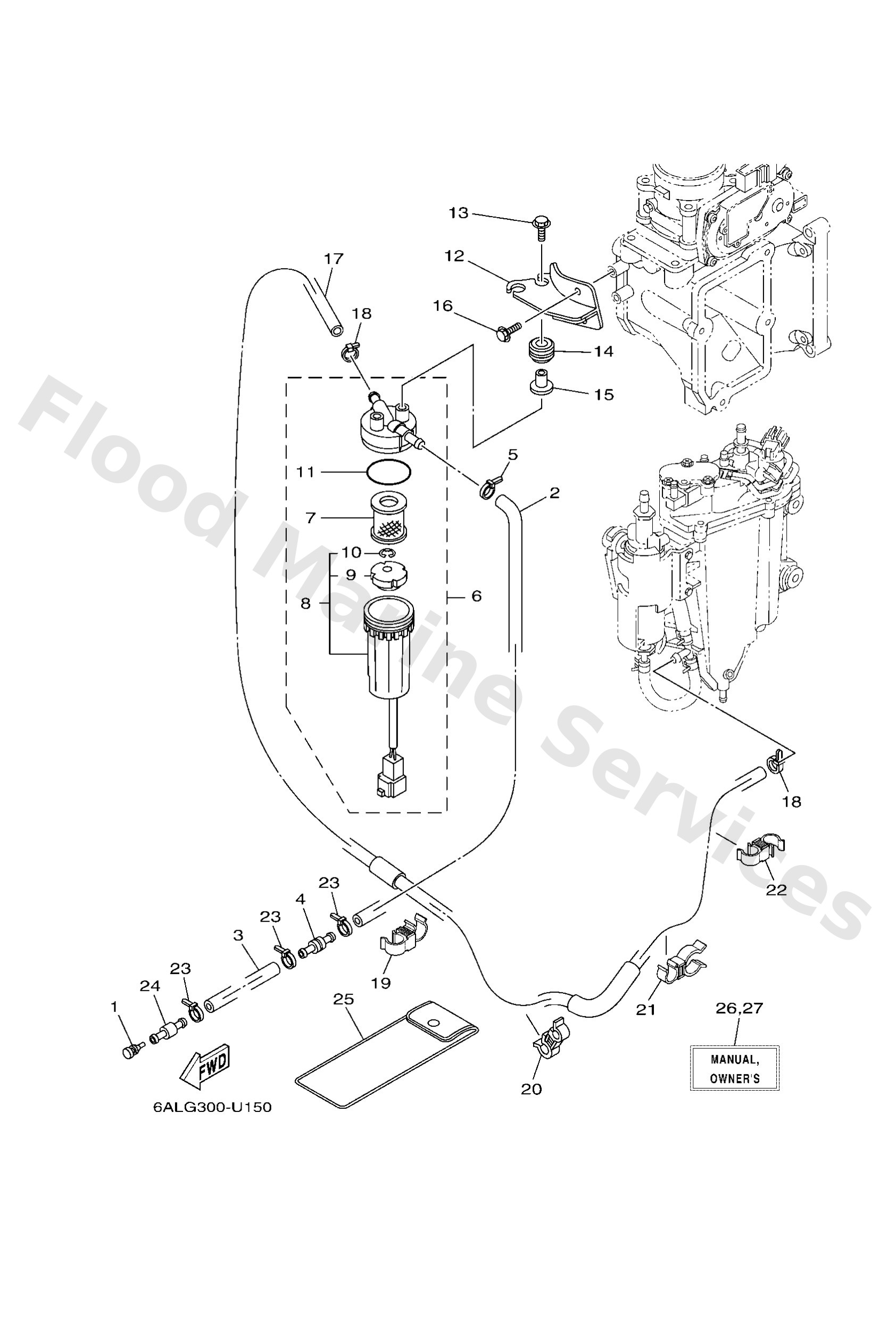

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
6P22431400
Pipe 4
Loading…
↗
3
9044513511
Hose (L2000)
Loading…
↗
4
6R32437710
Pipe, joint 3
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
6P32456003
Filter assembly
Loading…
↗
7
6P32456301
Element, filter (with tag)
Loading…
↗
8
6P32456203
Cup, filter (with tag)
Loading…
↗
9
6P32446900
Float, water level
Loading…
↗
10
6P32451900
Clip
Loading…
↗
11
6P32456400
Gasket
Loading…
↗
12
6P22456611
Bracket, filter
Loading…
↗
13
9011906M17
Bolt, with washer
Loading…
↗
14
9048014018
Grommet
Loading…
↗
15
9038706289
Collar
Loading…
↗
16
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
17
6P22431350
Pipe 3
Loading…
↗
19
9046412009
Clamp
Loading…
↗
20
9046412010
Clamp
Loading…
↗
21
9046420024
Clamp
Loading…
↗
24
6R32437700
Pipe, joint 3
Loading…
↗
25
69J2810002
AP
Tool Kit
Loading…
↗
26
6P2281997GE0
UR (E)
Manual,owner's
Loading…
↗
26
6P2281997GF0
UR (F)
Manual,owner's
Loading…
↗
26
6P2281997GD0
UR (NL)
Manual,owner's
Loading…
↗
26
6P2281997GS0
UR (ES)
Manual,owner's
Loading…
↗
26
6P2281997GG0
UR (D)
Manual,owner's
Loading…
↗
26
6P2281997GH0
UR (I)
Manual,owner's
Loading…
↗
27
6P2281998GL0
UR (SF)
Manual,owner's
Loading…
↗
27
6P2281998GM0
UR (S)
Manual,owner's
Loading…
↗
27
6P2281998GN0
UR (N)
Manual,owner's
Loading…
↗
27
6P2281998GP0
UR (P)
Manual,owner's
Loading…
↗
27
6P2281998GR0
UR (GR)
Manual,owner's
Loading…
↗
27
6P2281998GK0
UR (DK)
Manual,owner's
Loading…
↗
