FL250AET (2007)
FUEL 1

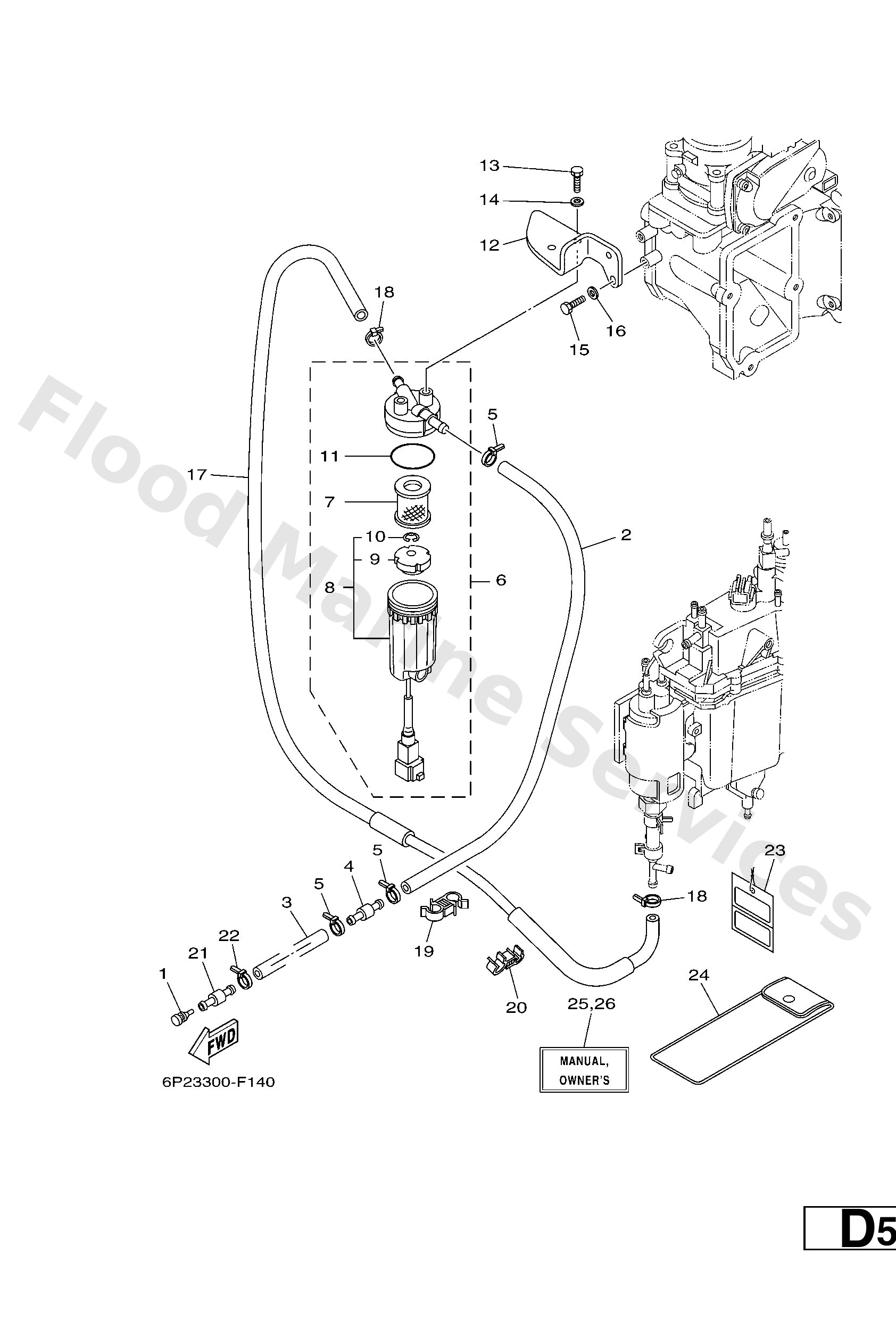

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
6P22431400
Pipe 4
Loading…
↗
3
9044513511
Hose (L2000)
Loading…
↗
4
6R32437710
Pipe, Joint 2
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
6P32456000
Filter assembly
Loading…
↗
7
6P32456300
Element, filter (with tag)
Loading…
↗
8
6P32456200
Cup, filter (with tag)
Loading…
↗
9
6P32446900
Float, Water Level
Loading…
↗
10
6P32451900
Clip
Loading…
↗
11
6P32456400
Gasket
Loading…
↗
12
6P22456610
Bracket, filter
Loading…
↗
13
9709506014
Bolt
Loading…
↗
14
9299506600
10
Loading…
↗
15
9709506016
Bolt
Loading…
↗
17
6P22431310
Pipe 3
Loading…
↗
19
9046412009
Clamp
Loading…
↗
20
9046412010
Clamp
Loading…
↗
21
6R32437700
Pipe, Joint 2
Loading…
↗
23
61H2819R31
-
Loading…
↗
24
69J2810001
Tool Kit
Loading…
↗
25
6P22819971E0
UR (E)
Om f250a/fl250a '07
Loading…
↗
25
6P22819971F0
UR (F)
Om f250a/fl250a '07
Loading…
↗
25
6P22819971S0
UR (ES)
Om f250a/fl250a '07
Loading…
↗
25
6P22819971G0
UR (D)
Om f250a/fl250a '07
Loading…
↗
25
6P22819971H0
UR (I)
Om f250a/fl250a '07
Loading…
↗
25
6P22819971D0
UR (NL)
Om f250a/fl250a '07
Loading…
↗
26
6P22819981K0
UR (DK)
Om f250a/fl250a '07
Loading…
↗
26
6P22819981R0
UR (GR)
Om f250a/fl250a '07
Loading…
↗
26
6P22819981P0
UR (P)
Om f250a/fl250a '07
Loading…
↗
26
6P22819981N0
UR (N)
Om f250a/fl250a '07
Loading…
↗
26
6P22819981M0
UR (S)
Om f250a/fl250a '07
Loading…
↗
26
6P22819981L0
UR (SF)
Om f250a/fl250a '07
Loading…
↗
