FL250BET (2011)
FUEL 1

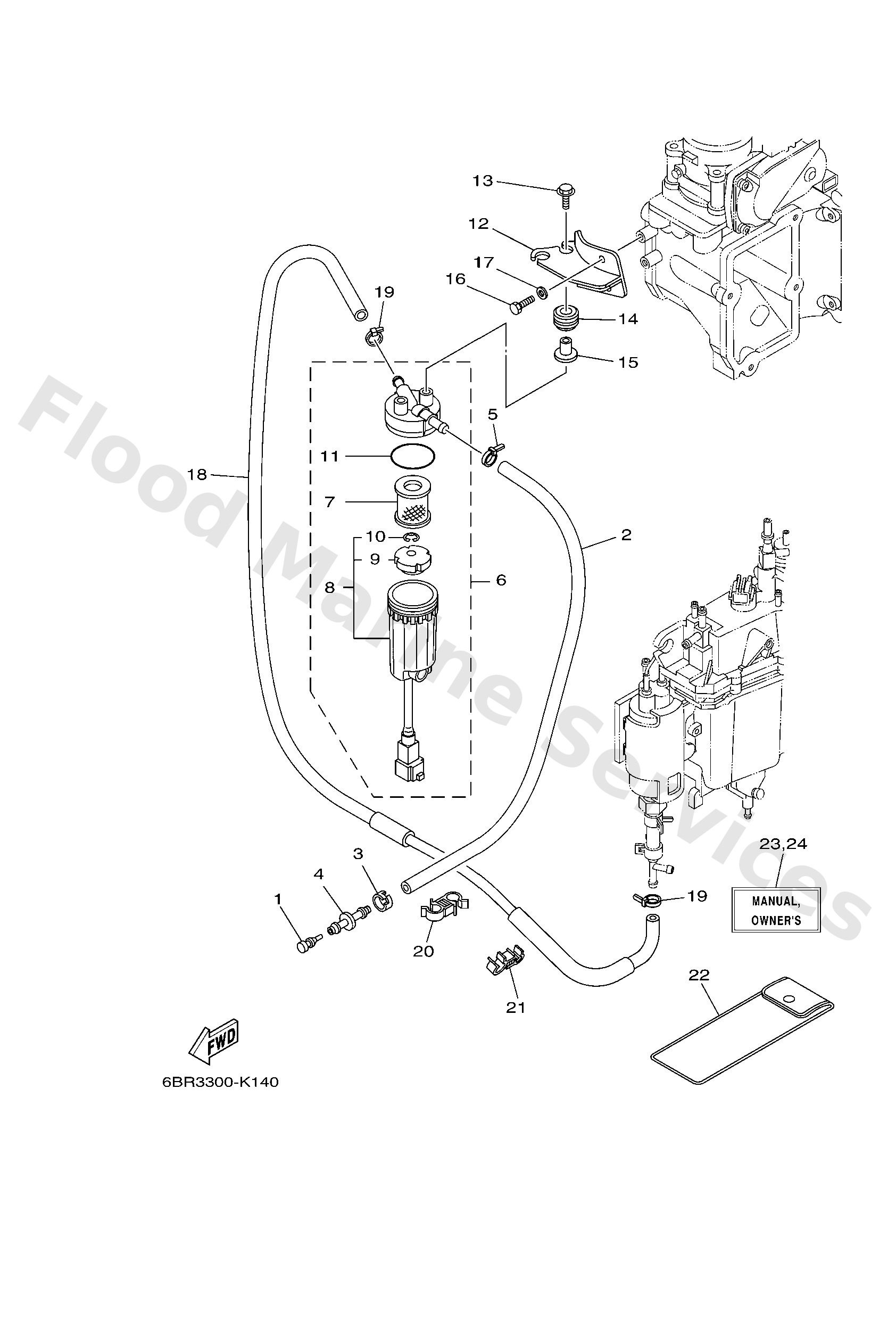

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
6P22431400
Go to P/N ) PE0-OM-150021
Pipe 4
Loading…
↗
3
6E52435151
Band 1
Loading…
↗
4
6AW2437700
Go to P/N ) PE0-OM-150021
Pipe, joint 2
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
6P32456001
Filter assembly
Loading…
↗
7
6P32456300
Element, filter (with tag)
Loading…
↗
8
6P32456202
Cup, filter (with tag)
Loading…
↗
9
6P32446900
Float, water level
Loading…
↗
10
6P32451900
Clip
Loading…
↗
11
6P32456400
Gasket
Loading…
↗
12
6P22456611
Bracket, filter
Loading…
↗
13
9011906M17
Bolt, with washer
Loading…
↗
14
9048014018
Grommet
Loading…
↗
15
9038706M60
Collar (6h3)
Loading…
↗
16
9709506014
Bolt(gj3)
Loading…
↗
17
9299506600
Washer, plain (646)
Loading…
↗
18
6P22431310
Pipe 3
Loading…
↗
20
9046412009
Clamp
Loading…
↗
21
9046412010
Clamp
Loading…
↗
22
69J2810001
AP
Tool kit
Loading…
↗
23
6BR2819973E0
UR (E)
Manual,owner's
Loading…
↗
23
6BR2819973F0
UR (F)
Manual,owner's
Loading…
↗
23
6BR2819973S0
UR (ES)
Manual,owner's
Loading…
↗
23
6BR2819973G0
UR (D)
Manual,owner's
Loading…
↗
23
6BR2819973D0
UR (NL)
Manual,owner's
Loading…
↗
21
7
-
Loading…
↗
23
6BR2819973H0
UR (I)
Manual,owner's
Loading…
↗
24
6BR2819983K0
UR (DK)
Manual,owner's
Loading…
↗
24
6BR2819983R0
UR (GR)
Manual,owner's
Loading…
↗
24
6BR2819983P0
UR (P)
Manual,owner's
Loading…
↗
24
6BR2819983N0
UR (N)
Manual,owner's
Loading…
↗
24
6BR2819983M0
UR (S)
Manual,owner's
Loading…
↗
24
6BR2819983L0
UR (SF)
Manual,owner's
Loading…
↗
