FL300BET (2011)
FUEL 1

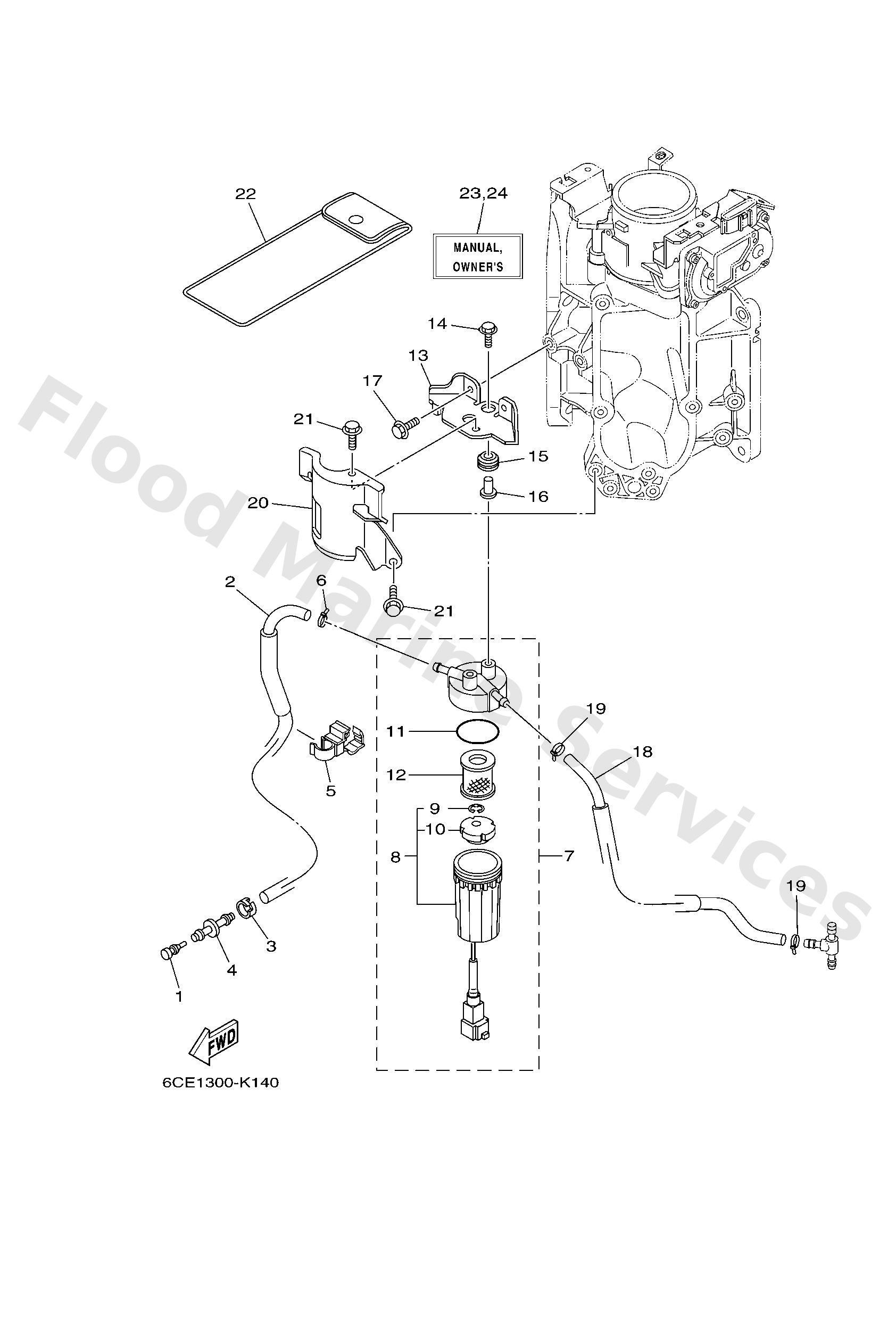

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
6CB2431400
Go to P/N ) PE0-OM-150020
Pipe 4
Loading…
↗
3
6E52435151
Band 1
Loading…
↗
4
6AW2437700
Go to P/N ) PE0-OM-150020
Pipe, joint 2
Loading…
↗
5
9046412012
Clamp
Loading…
↗
6
9046511M10
Clamp
Loading…
↗
7
6P32456020
Filter assembly
Loading…
↗
8
6P32456220
Cup, filter (with tag)
Loading…
↗
9
6P32451900
Clip
Loading…
↗
10
6P32446900
Float, water level
Loading…
↗
11
6P32456400
Gasket
Loading…
↗
12
6P32456300
Element, filter (with tag)
Loading…
↗
13
6CB2456600
Bracket, filter
Loading…
↗
14
9011906M17
Bolt, with washer
Loading…
↗
15
9048010M23
Grommet(6k7)
Loading…
↗
16
9038706M60
Collar (6h3)
Loading…
↗
17
9589506016
Bolt, flange deep recess
Loading…
↗
18
6CB2431300
Pipe 3
Loading…
↗
20
6CB2459601
Cover
Loading…
↗
21
9589506014
Bolt, flange deep recess
Loading…
↗
22
69J2810001
AP
Tool kit
Loading…
↗
23
6CE2819970E0
UR (E)
Manual,owner's
Loading…
↗
23
6CE2819970F0
UR (F)
Manual,owner's
Loading…
↗
23
6CE2819970S0
UR (ES)
Manual,owner's
Loading…
↗
23
6CE2819970G0
UR (D)
Manual,owner's
Loading…
↗
23
6CE2819970D0
UR (NL)
Manual,owner's
Loading…
↗
?
6CB2431401
Pipe 4
Loading…
↗
?
6CB2431411
Pipe 4
Loading…
↗
23
2
6C5-14182-10
Loading…
↗
23
6CE2819970H0
UR (I)
Manual,owner's
Loading…
↗
24
6CE2819980K0
UR (DK)
Manual,owner's
Loading…
↗
24
6CE2819980R0
UR (GR)
Manual,owner's
Loading…
↗
24
6CE2819980P0
UR (P)
Manual,owner's
Loading…
↗
24
6CE2819980N0
UR (N)
Manual,owner's
Loading…
↗
24
6CE2819980M0
UR (S)
Manual,owner's
Loading…
↗
24
6CE2819980L0
UR (SF)
Manual,owner's
Loading…
↗
