FL350AET (2008)
FUEL 1

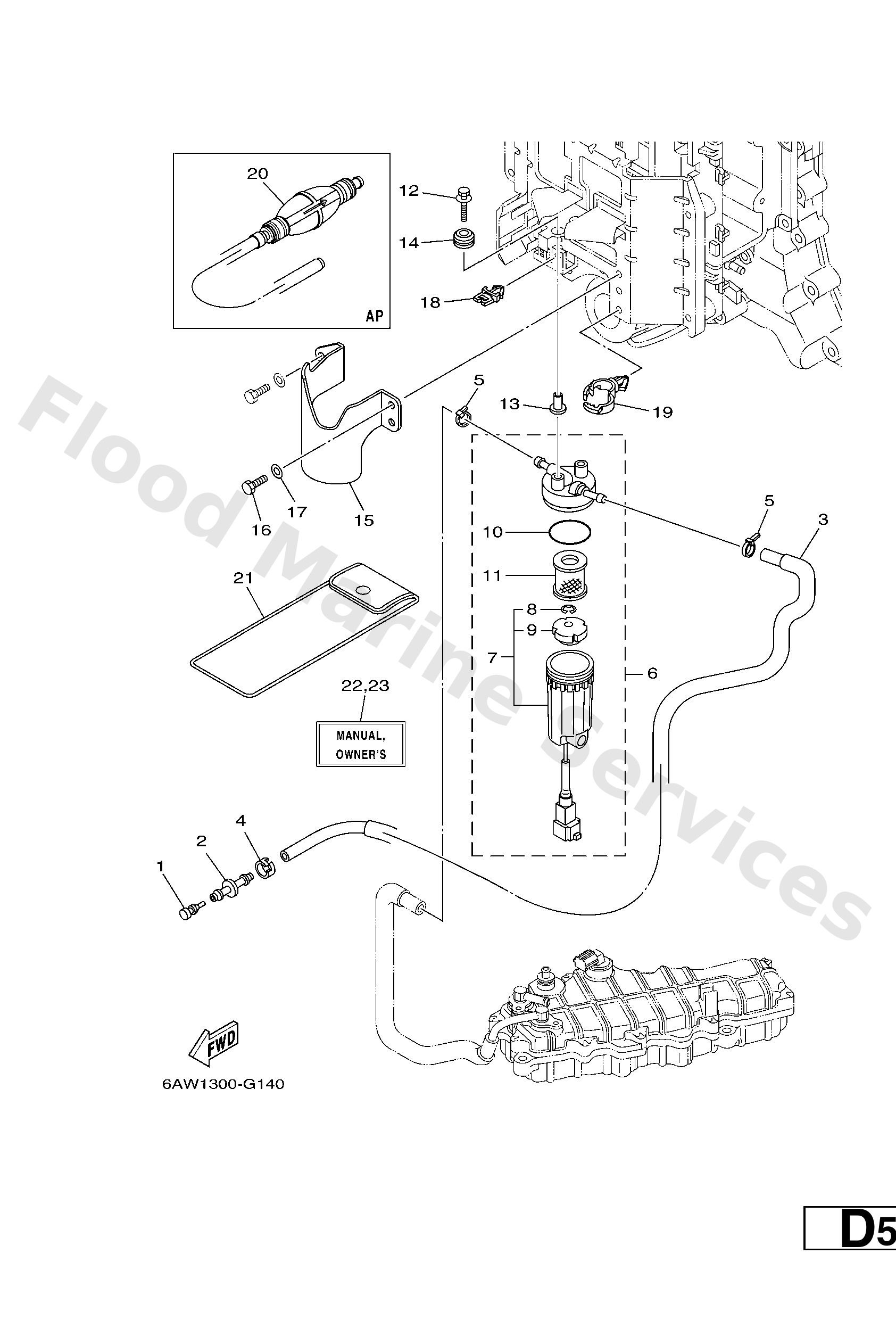

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
6AW2437700
Pipe, joint 2
Loading…
↗
3
6AW2431100
Pipe, fuel 1
Loading…
↗
4
6E52435151
Band 1
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
6P32456010
Filter assembly
Loading…
↗
7
6P32456210
Cup, filter (with tag)
Loading…
↗
8
6P32451900
Clip
Loading…
↗
9
6P32446900
Float, water level
Loading…
↗
10
6P32456400
Gasket
Loading…
↗
11
6P32456300
Element, filter (with tag)
Loading…
↗
12
9011906M17
Bolt, with washer
Loading…
↗
13
9038706M60
Collar (6h3)
Loading…
↗
14
9048010M23
Grommet(6k7)
Loading…
↗
15
6AW2459600
Cover
Loading…
↗
16
9709506012
Bolt(gh1)
Loading…
↗
17
9299506600
Washer, plain (646)
Loading…
↗
18
9046411121
Clamp(4gy)
Loading…
↗
19
9046420181
Clamp(4ap)
Loading…
↗
20
6YK2430742
AP
Fuel pipe comp. 2
Loading…
↗
21
69J2810001
Tool kit
Loading…
↗
22
6AW2819970E0
UE (E)
O/m f350a '08
Loading…
↗
22
6AW2819970F0
UE (F)
O/m f350a '08
Loading…
↗
22
6AW2819970S0
UE (ES)
O/m f350a '08
Loading…
↗
22
6AW2819970G0
UE (D)
O/m f350a '08
Loading…
↗
22
6AW2819970D0
UE (NL)
O/m f350a '08
Loading…
↗
22
6AW2819970H0
UE (I)
O/m f350a '08
Loading…
↗
23
6AW2819980K0
UE (DK)
O/m f350a '08
Loading…
↗
23
6AW2819980R0
UE (GR)
O/m f350a '08
Loading…
↗
23
6AW2819980P0
UE (P)
O/m f350a '08
Loading…
↗
23
6AW2819980N0
UE (N)
O/m f350a '08
Loading…
↗
23
6AW2819980M0
UE (S)
O/m f350a '08
Loading…
↗
23
6AW2819980L0
UE (SF)
O/m f350a '08
Loading…
↗
