L250AETO (2003)
FUEL 1

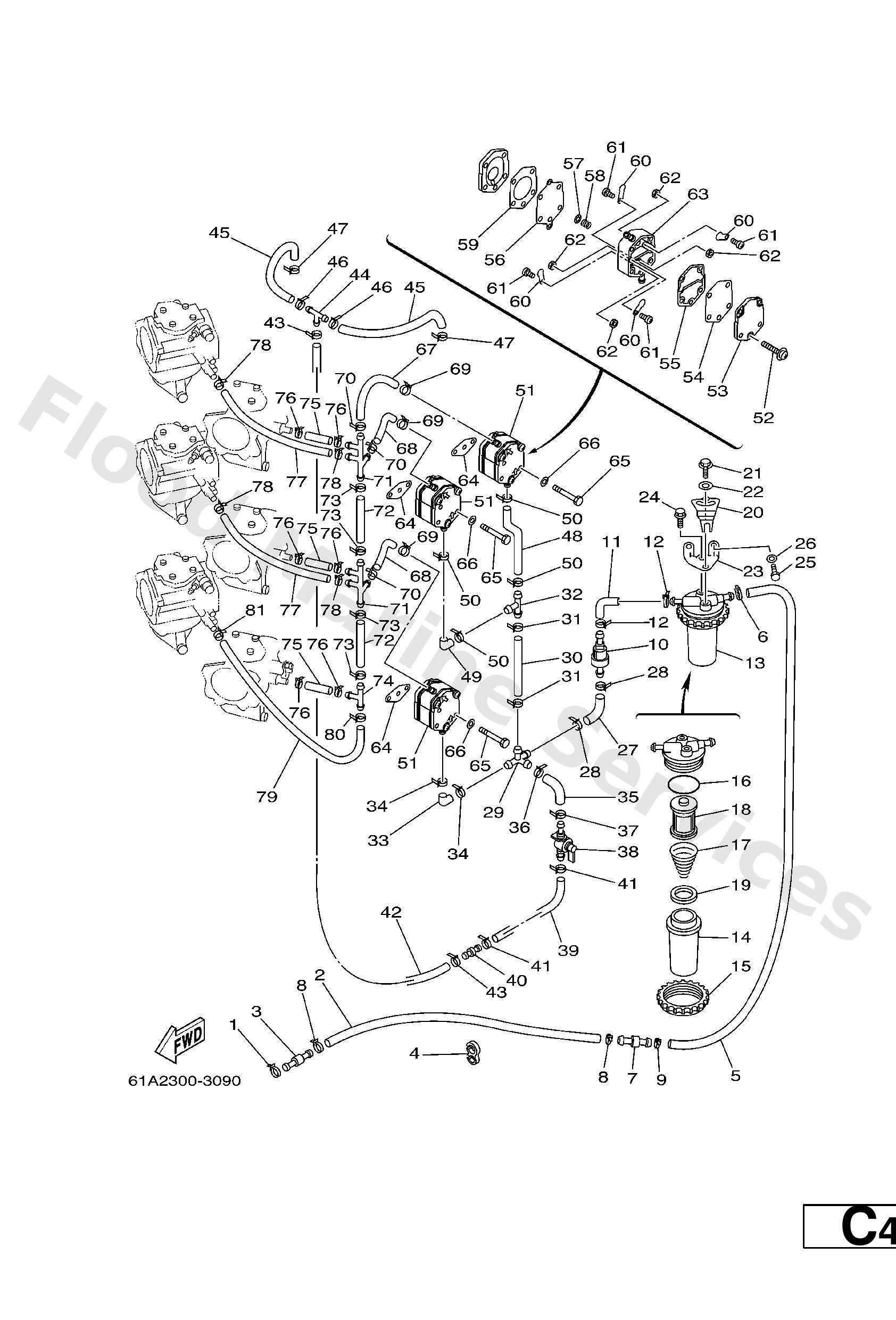

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
90465−11M10
Clamp
Loading…
↗
2
90445−13M17
Hose(l2700)
Loading…
↗
3
6R3−24377−00
Pipe, joint 3
Loading…
↗
4
90464−13M34
Clamp(6r3)
Loading…
↗
5
61A−24313−00
Pipe 3
Loading…
↗
10
6R5−24408−00
Fuel feed assembly
Loading…
↗
11
61A−24311−00
Pipe, fuel 1
Loading…
↗
13
61A−24560−04
Filter assembly
Loading…
↗
14
61A−24521−00
Cup, filter
Loading…
↗
15
65L−24531−01
Nut
Loading…
↗
16
61A−24564−00
O-ring
Loading…
↗
17
61A−24577−01
Spring
Loading…
↗
18
61A−24563−00
Element, filter
Loading…
↗
19
61A−24469−00
Float, water level
Loading…
↗
20
65L−24558−00
Holder, filter
Loading…
↗
21
97595−06416
Bolt, with washer(62x)
Loading…
↗
22
90201−06068
Washer,plate (6k8)
Loading…
↗
23
61A−24566−00
Bracket, filter
Loading…
↗
24
97595−06514
Bolt(gj3)
Loading…
↗
25
97095−06016
Bolt, hexagon deep recess
Loading…
↗
26
92995−06600
Washer, plain (646)
Loading…
↗
29
6G5−24377−00
Pipe, joint 2
Loading…
↗
30
6G5−24317−01
Pipe 7
Loading…
↗
32
6E5−24378−00
Pipe, joint 3
Loading…
↗
33
6E5−24315−00
Pipe 5
Loading…
↗
38
61A−24500−00
Fuel cock assembly 1
Loading…
↗
39
90445−10M17
Hose (l400)
Loading…
↗
40
6E5−21744−00
Breezer
Loading…
↗
42
90445−10M34
Hose (L550)
Loading…
↗
44
688−24378−00
Pipe, joint
Loading…
↗
48
6G5−24315−00
Pipe 5
Loading…
↗
51
6E5−24410−03
Fuel pump assembly
Loading…
↗
52
6E5−24444−00
Screw
Loading…
↗
53
6E5−24413−00
Body 2
Loading…
↗
54
6E5−24471−00
Diaphragm
Loading…
↗
55
6E5−24435−00
Gasket, body 2
Loading…
↗
56
6E5−24411−00
Diaphragm
Loading…
↗
57
648−24424−00
Seat,spring
Loading…
↗
58
6E5−24423−00
Spring, diaphragm
Loading…
↗
59
6E5−24434−02
Gasket, body
Loading…
↗
60
6A0−24421−01
Valve, check
Loading…
↗
61
6A0−14325−00
Screw, pan head
Loading…
↗
62
95380−03600
Nut (6g8)
Loading…
↗
63
6E5−24412−10
Body 1
Loading…
↗
64
650−24431−A0
Gasket,fuel pump
Loading…
↗
65
97095−06050
Bolt(jf7)
Loading…
↗
68
90445−13M31
Hose (L85)
Loading…
↗
71
61A−24377−00
Pipe, Joint 3
Loading…
↗
72
90445−13M14
Hose (l90)
Loading…
↗
75
90445−13M02
Hose (l90)
Loading…
↗
77
90445−13M12
Hose (L235)
Loading…
↗
79
90445−13M11
Pipe, fuel 1
