LF150B (2023)
FUEL 1

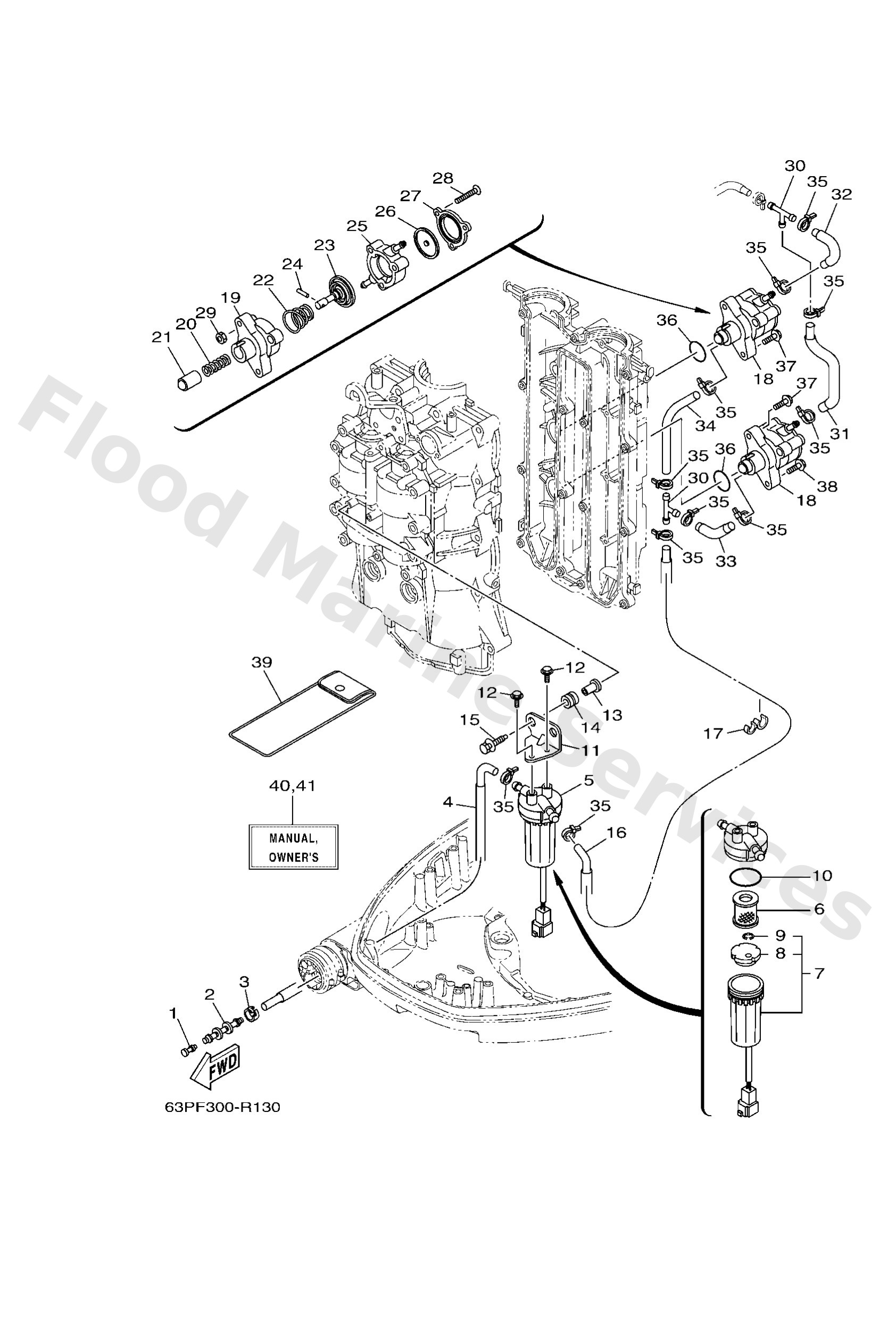

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554701
Damper
Loading…
↗
2
6AW2437701
Pipe, joint 2
Loading…
↗
3
6E52435151
Band 1
Loading…
↗
4
63P2431640
Pipe 6
Loading…
↗
5
6P32456004
Filter assembly
Loading…
↗
6
6P32456302
Element, filter (with tag)
Loading…
↗
7
6P32456203
Cup, filter (with tag)
Loading…
↗
8
6P32446900
Float, water level
Loading…
↗
9
6P32451900
Clip
Loading…
↗
10
6P32456400
Gasket
Loading…
↗
11
63P2456600
Bracket, filter
Loading…
↗
12
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
13
9038706289
Collar
Loading…
↗
14
9048010M23
Grommet(6k7)
Loading…
↗
15
9011906309
Bolt, with washer
Loading…
↗
16
63P2431120
Pipe, fuel 1
Loading…
↗
17
9046413M34
Clamp(6r3)
Loading…
↗
18
63P2441020
Fuel pump assembly
Loading…
↗
19
68V2441200
Body 1
Loading…
↗
20
68V2445400
Spring
Loading…
↗
21
63P1313100
Plunger
Loading…
↗
22
63P2442300
Spring, diaphragm
Loading…
↗
23
68V2441100
Diaphragm
Loading…
↗
24
68V2437400
Pin
Loading…
↗
25
63P2441300
Body 2
Loading…
↗
26
68V2447110
Diaphragm
Loading…
↗
27
63P2441400
Body 3
Loading…
↗
28
68V2444400
Screw
Loading…
↗
29
68V2414900
Nut
Loading…
↗
30
6E52437800
Pipe, joint 3
Loading…
↗
31
63P2431410
Pipe 4
Loading…
↗
32
63P2431510
Pipe 5
Loading…
↗
33
63P2431220
Pipe 2
Loading…
↗
34
63P2431320
Pipe 3
Loading…
↗
35
9046511M10
Clamp
Loading…
↗
36
9321030682
O-ring (371)
Loading…
↗
37
9011906312
Bolt, with washer
Loading…
↗
38
9011906135
Bolt, with washer
Loading…
↗
39
67F2810003
AP
Tool kit
Loading…
↗
40
63P281997PE0
UR (E)
Manual,Owner's
Loading…
↗
40
63P281997PF0
UR (F)
Manual,Owner's
Loading…
↗
40
63P281997PS0
UR (ES)
Manual,Owner's
Loading…
↗
40
63P281997PG0
UR (D)
Manual,Owner's
Loading…
↗
40
63P281997PD0
UR (NL)
Manual,Owner's
Loading…
↗
40
63P281997PH0
UR (I)
Manual,Owner's
Loading…
↗
41
63P281998PK0
UR (DK)
Manual,Owner's
Loading…
↗
41
63P281998PR0
UR (GR)
Manual,Owner's
Loading…
↗
41
63P281998PP0
UR (P)
Manual,Owner's
Loading…
↗
41
63P281998PN0
UR (N)
Manual,Owner's
Loading…
↗
41
63P281998PM0
UR (S)
Manual,Owner's
Loading…
↗
41
63P281998PL0
UR (SF)
Manual,Owner's
Loading…
↗
