Yamaha Outboard Parts - FUEL 1 - LZ300AETO (2004) | Flood Marine

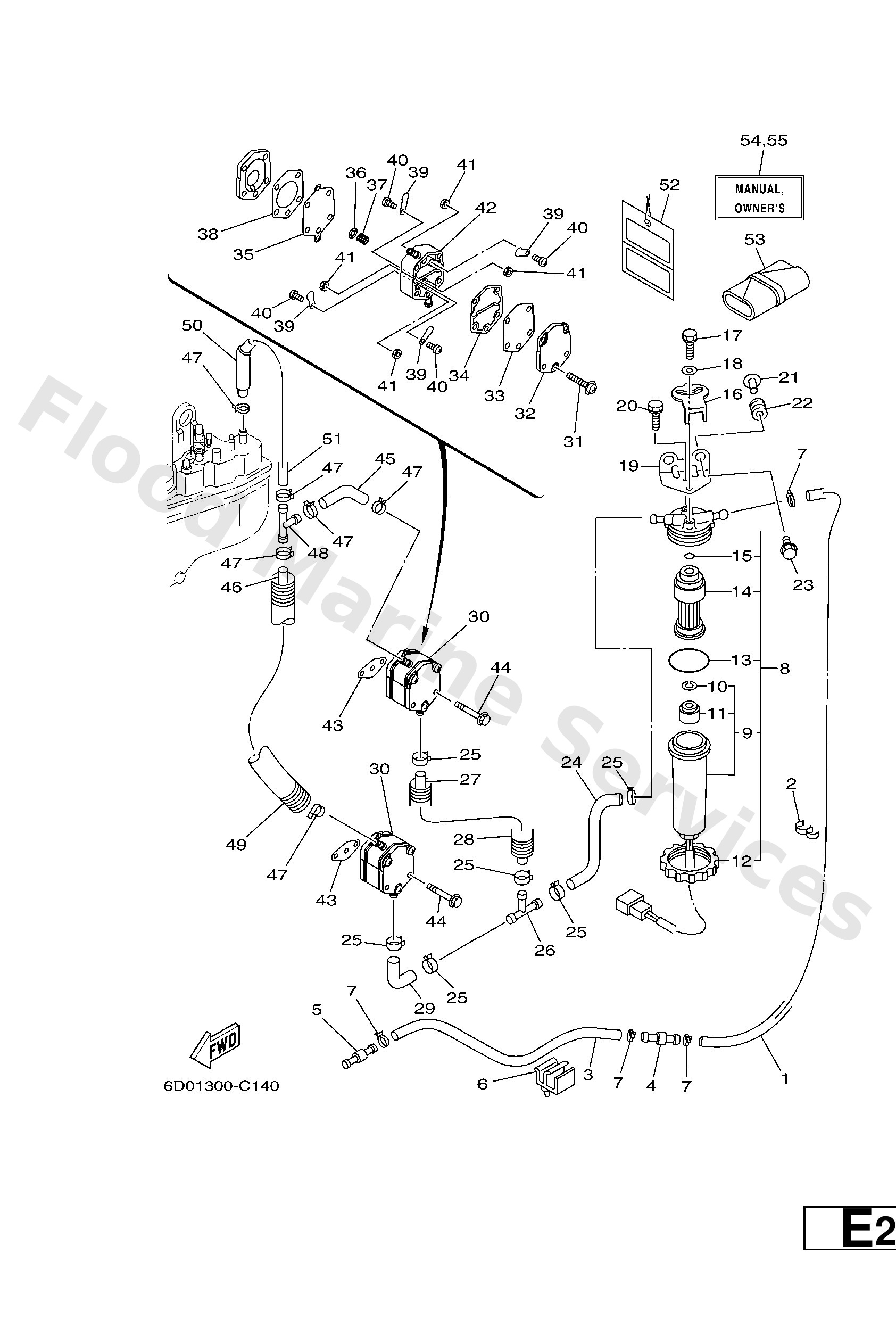

Diagram: FUEL 1

Diagram

Parts List

Reference
Description
Price


1
61A2431300
Pipe 3
Loading…

↗
2
9046413M34
Clamp(6r3)
Loading…

↗
3
9044513M17
Hose(l2700)
Loading…

↗
4
6R32437700
Pipe, joint 3
Loading…

↗
5
6R32437710
Pipe, joint 3
Loading…

↗
6
6E58259400
Clamp
Loading…

↗
7
9046511M10
Clamp
Loading…

↗
8
68F2456010
Filter assembly
Loading…

↗
9
68F2456210
Cup, filter
Loading…

↗
10
68F2451910
Clip
Loading…

↗
11
68F2446910
Float, Water Level
Loading…

↗
12
65L2453101
Nut
Loading…

↗
13
61A2456400
O-ring
Loading…

↗
14
68F2456310
Element, filter
Loading…

↗
15
65L2456400
Gasket
Loading…

↗
16
60H2455800
Holder, filter
Loading…

↗
17
9759506416
Bolt, with washer(62x)
Loading…

↗
18
9020106068
Washer,plate (6k8)
Loading…

↗
19
68F2456600
Bracket, filter
Loading…

↗
20
9759506514
Bolt(gj3)
Loading…

↗
21
9038706M60
Collar (6h3)
Loading…

↗
22
9048010M23
Grommet(6k7)
Loading…

↗
23
9011906M88
Bolt, with washer
Loading…

↗
24
68F2431100
Pipe, Fuel 1
Loading…

↗
26
6E52437800
Pipe, joint 3
Loading…

↗
27
6G52431500
Pipe 5
Loading…

↗
28
9044719004
Hose, with spring
Loading…

↗
29
6E52431500
Pipe 5
Loading…

↗
30
6E52441003
Fuel pump assembly
Loading…

↗
31
6E52444400
Screw
Loading…

↗
32
6E52441300
Body 2
Loading…

↗
33
6E52447100
Diaphragm
Loading…

↗
34
6E52443500
Gasket, body 2
Loading…

↗
35
6E52441100
Diaphragm
Loading…

↗
36
6482442400
Seat,spring
Loading…

↗
37
6E52442300
Spring, diaphragm
Loading…

↗
38
6E52443402
Gasket, body
Loading…

↗
39
6A02442101
Valve, check
Loading…

↗
40
6A01432500
Screw, pan head
Loading…

↗
41
9538003600
Nut (6g8)
Loading…

↗
42
6E52441210
Body 1
Loading…

↗
43
65024431A0
Gasket,fuel pump
Loading…

↗
44
9010106M00
Bolt(682)
Loading…

↗
45
6G52431610
Pipe 6
Loading…

↗
46
6E52431300
Pipe 3
Loading…

↗
49
65L8355700
Tube
Loading…

↗
50
9044615M07
Hose(6g4)
Loading…

↗
51
9044513M12
Hose (L235)
Loading…

↗
52
61H2819R31
-
Loading…

↗
53
68F2810000
Tool kit
Loading…

↗
54
6D02819970E0 UR (E)
Om z300aet0, '04
Loading…

↗
54
6D02819970F0 UR (F)
Om z300aet0, '04
Loading…

↗
54
6D02819970S0 UR (ES)
Om z300aet0, '04
Loading…

↗
54
6D02819970G0 UR (D)
Om z300aet0, '04
Loading…

↗
54
6D02819970D0 UR (NL)
Om z300aet0, '04
Loading…

↗
54
6D02819970H0 UR (I)
Om z300aet0, '04
Loading…

↗
55
6D02819980K0 UR (DK)
-
Loading…

↗
