XF425NSA7 (2019)
FUEL 1

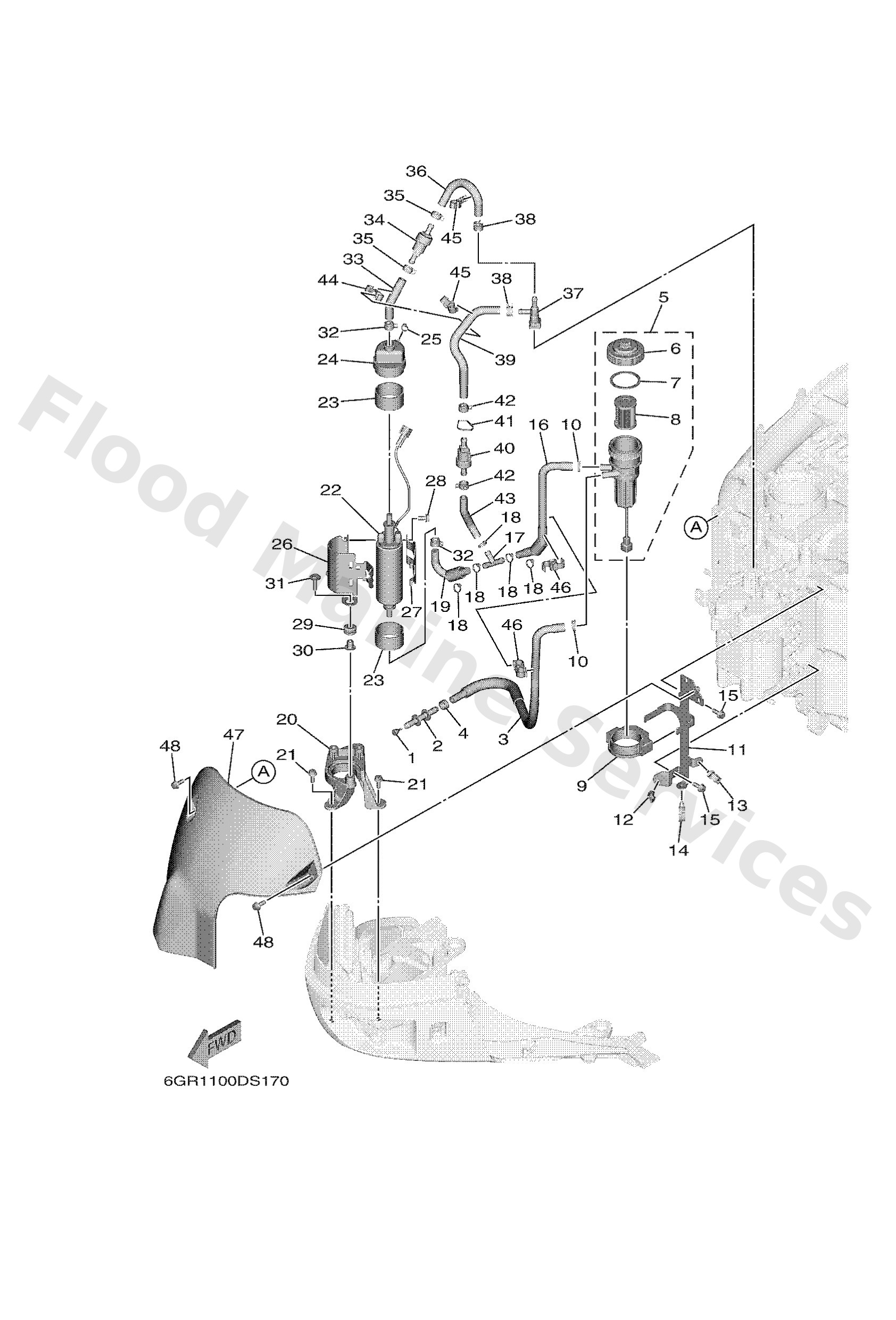

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
6898554700
Damper
Loading…
↗
2
6AW2437701
Pipe, joint 2
Loading…
↗
3
6GR2431100
Pipe, fuel 1
Loading…
↗
4
6E52435151
Band 1
Loading…
↗
5
6GR2456000
Filter assembly
Loading…
↗
6
6GR2456100
Body,filter
Loading…
↗
7
6P32456400
Gasket
Loading…
↗
8
6P32456301
Element, filter (with tag)
Loading…
↗
9
6GR2456800
Band, filter
Loading…
↗
10
9046511M10
Clamp
Loading…
↗
11
6GR2456600
Bracket, filter
Loading…
↗
12
9046411121
Clamp(4gy)
Loading…
↗
13
9046413249
Clamp
Loading…
↗
14
9046418246
Clamp(4tr)
Loading…
↗
15
95D9506016
Bolt, flange deep recess
Loading…
↗
16
6GR2431200
Pipe 2
Loading…
↗
17
6E52437800
Pipe, joint 3
Loading…
↗
19
6GR2432100
Pipe 10
Loading…
↗
20
6GR2442500
Bracket, fuel pump 1
Loading…
↗
22
6GR2441000
Fuel pump assembly
Loading…
↗
23
6DA2449200
Bush, fuel pump
Loading…
↗
24
6GR2446200
Cap, blind
Loading…
↗
26
6GR2449100
Bracket, fuel pump
Loading…
↗
27
6GR2442600
Bracket, fuel pump 2
Loading…
↗
28
95D9506012
Bolt, flange deep recess
Loading…
↗
29
9048010M23
Grommet(6k7)
Loading…
↗
30
9038706289
Collar
Loading…
↗
31
9011906M17
Bolt, with washer
Loading…
↗
32
90467140A9
Clip
Loading…
↗
33
6GR2432200
Pipe 11
Loading…
↗
34
6R52440810
Fuel feed assembly
Loading…
↗
36
6GR2432300
Pipe 12
Loading…
↗
37
6P22430000
Fuel pipe joint
Loading…
↗
38
90467120A7
Clip
Loading…
↗
39
6GR2432400
Pipe 13
Loading…
↗
40
6GR2446020
Relief valve assembly
Loading…
↗
41
9046513M60
Clamp(63m)
Loading…
↗
43
6GR2432500
Pipe 14
Loading…
↗
44
9046412009
Clamp
Loading…
↗
45
9046412010
Clamp
Loading…
↗
47
6GR2459600
Cover
Loading…
↗
