Z200PETO (2003)
FUEL 1

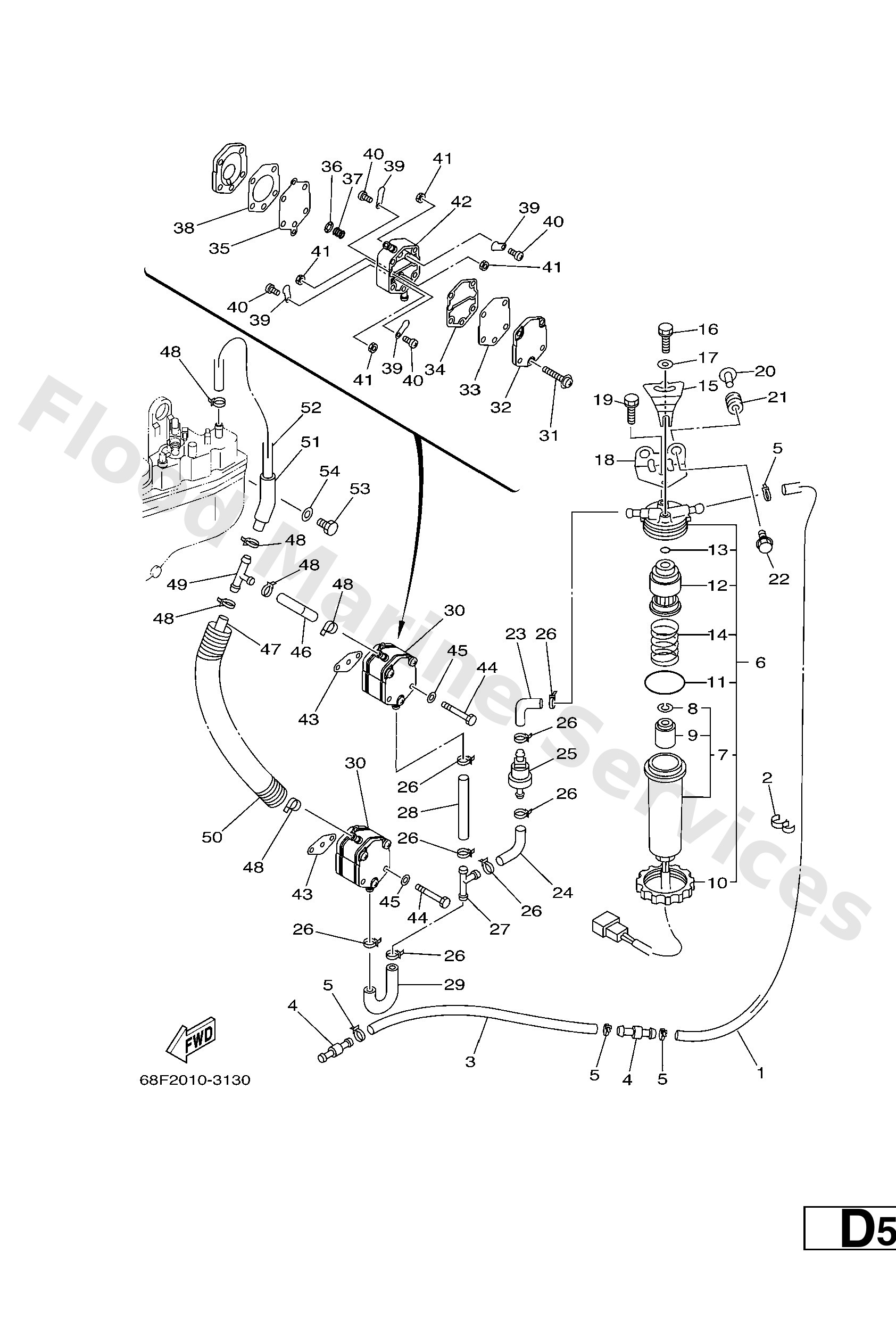

Diagram: FUEL 1
Parts List
Reference
Description
Price
1
61A2431300
Pipe 3
Loading…
↗
2
9046413M34
Clamp(6r3)
Loading…
↗
3
9044513M17
Hose(l2700)
Loading…
↗
4
6R32437700
Pipe, joint 3
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
68F2456000
Filter assembly
Loading…
↗
7
68F2456200
Cup, filter
Loading…
↗
8
68F2451900
Clip
Loading…
↗
9
68F2446900
Float, Water Level
Loading…
↗
10
65L2453101
Nut
Loading…
↗
11
61A2456400
O-ring
Loading…
↗
12
68F2456300
Element, filter
Loading…
↗
13
65L2456400
Gasket
Loading…
↗
14
68F2456700
Spring
Loading…
↗
15
65L2455800
Holder, filter
Loading…
↗
16
9759506416
Bolt, with washer(62x)
Loading…
↗
17
9020106068
Washer,plate (6k8)
Loading…
↗
18
68F2456600
Bracket, filter
Loading…
↗
19
9759506514
Bolt(gj3)
Loading…
↗
20
9038706M60
Collar (6h3)
Loading…
↗
21
9048010M23
Grommet(6k7)
Loading…
↗
22
9011906M88
Bolt, with washer
Loading…
↗
23
61A2431100
Pipe, fuel 1
Loading…
↗
24
61U2431600
Pipe 6
Loading…
↗
25
6R52440800
Fuel feed assembly
Loading…
↗
27
6E52437800
Pipe, joint 3
Loading…
↗
28
9044513M31
Hose (L85)
Loading…
↗
29
67H2431100
Pipe, fuel 1
Loading…
↗
30
6E52441003
Fuel pump assembly
Loading…
↗
31
6E52444400
Screw
Loading…
↗
32
6E52441300
Body 2
Loading…
↗
33
6E52447100
Diaphragm
Loading…
↗
34
6E52443500
Gasket, body 2
Loading…
↗
35
6E52441100
Diaphragm
Loading…
↗
36
6482442400
Seat,spring
Loading…
↗
37
6E52442300
Spring, diaphragm
Loading…
↗
38
6E52443402
Gasket, body
Loading…
↗
39
6A02442101
Valve, check
Loading…
↗
40
6A01432500
Screw, pan head
Loading…
↗
41
9538003600
Nut (6g8)
Loading…
↗
42
6E52441210
Body 1
Loading…
↗
43
65024431A0
Gasket,fuel pump
Loading…
↗
44
9709506050
Bolt(jf7)
Loading…
↗
45
9299506600
Washer, plain (646)
Loading…
↗
47
6E52431300
Pipe 3
Loading…
↗
50
6H18355700
Tube
Loading…
↗
51
9044615M07
Hose(6g4)
Loading…
↗
52
9044513M12
Hose (L235)
Loading…
↗
53
9709506012
Bolt(gh1)
Loading…
↗
