25MHB3 (2003)
FUEL 2

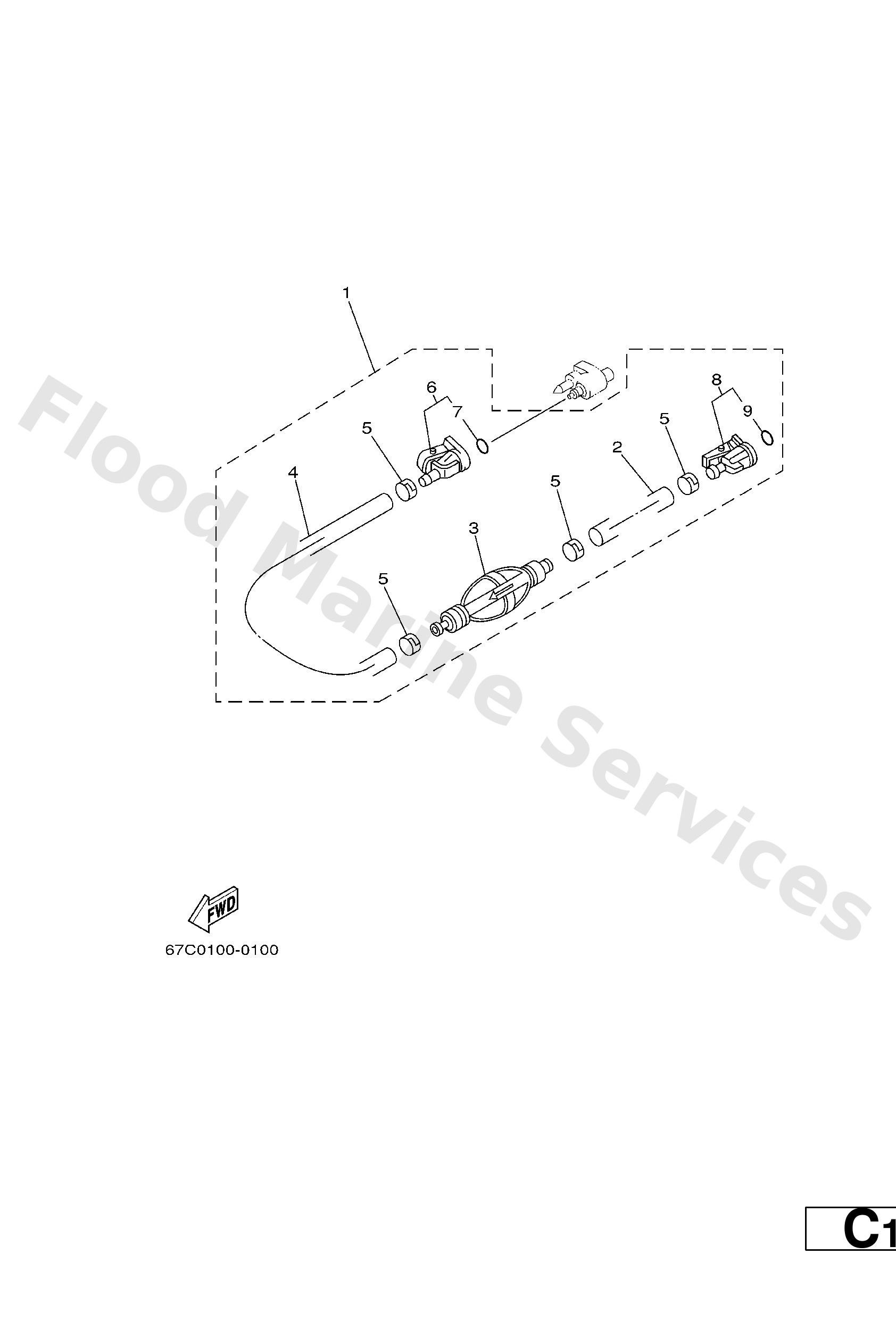

Diagram: FUEL 2
Parts List
Reference
Description
Price
1
6Y1−24306−53
AP FOR USA
Fuel pipe comp. 1
Loading…
↗
2
90445−11M06
Hose (l3000)
Loading…
↗
3
6Y1−24360−52
Primer pump assembly
Loading…
↗
4
90445−11M05
Hose (l1000)
Loading…
↗
5
650−24351−51
Band 1
Loading…
↗
6
6G1−24305−03
Fuel pipe joint comp. 2
Loading…
↗
7
93210−08287
O-ring (655)
Loading…
↗
8
6Y1−24305−04
Fuel pipe joint comp. 2
Loading…
↗
