E115AWH (2003)
FUEL 2

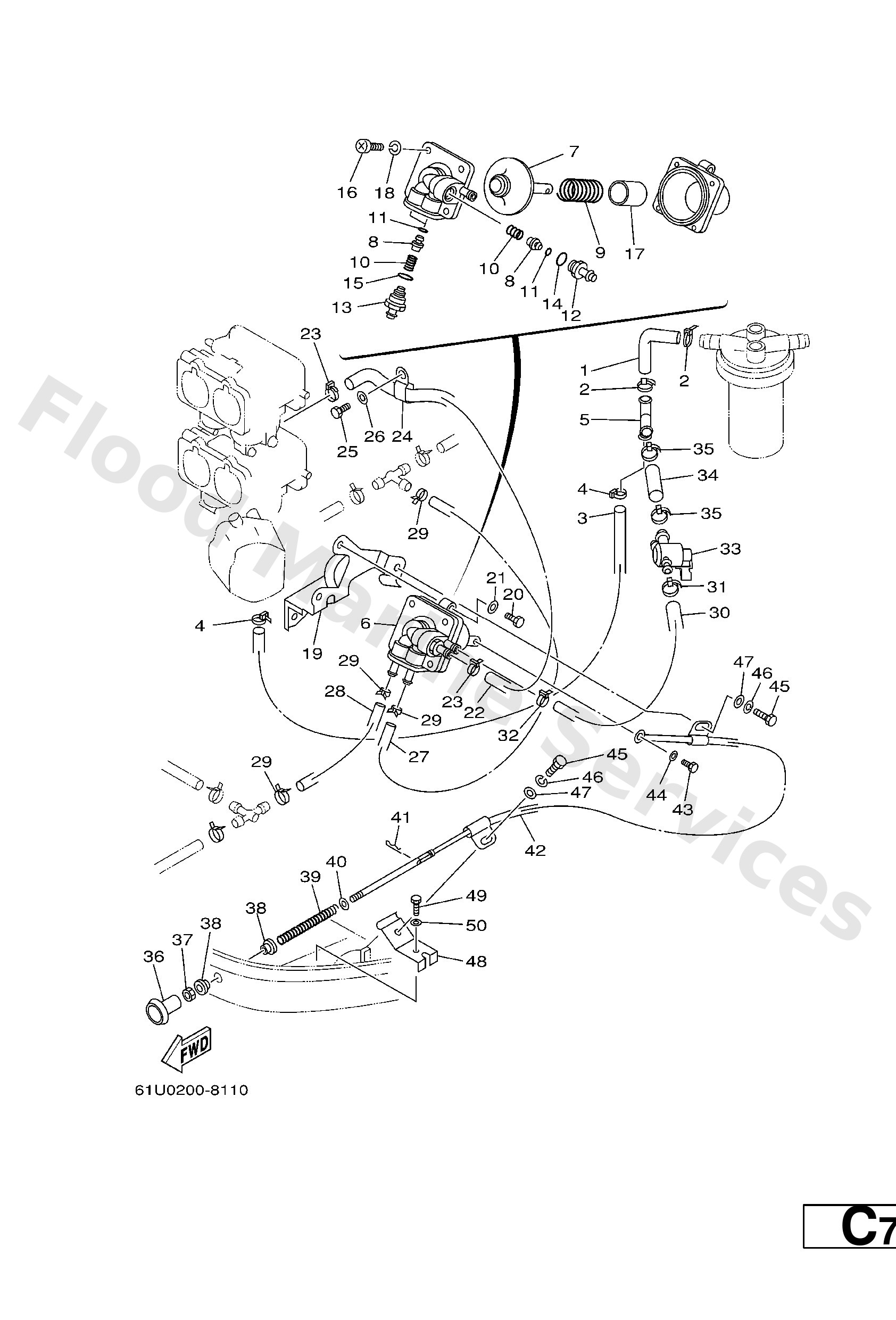

Diagram: FUEL 2
Parts List
Reference
Description
Price
1
61U−24316−00
Pipe 6
Loading…
↗
2
90465−11M10
Clamp
Loading…
↗
3
90445−13M11
Pipe, fuel 1
Loading…
↗
5
6E5−24378−00
Pipe, joint 3
Loading…
↗
6
61U−24410−00
Fuel pump assembly
Loading…
↗
7
61U−24411−00
Diaphragm
Loading…
↗
8
61U−24421−00
Valve, Check
Loading…
↗
9
61U−24423−00
Spring, Diaphragm
Loading…
↗
10
61U−24454−00
Spring
Loading…
↗
11
61U−24486−00
O−Ring
Loading…
↗
12
61U−24461−00
Pipe, Joint
Loading…
↗
13
61U−24478−00
Joint
Loading…
↗
14
61U−24479−00
O−Ring
Loading…
↗
15
61U−24489−00
O−Ring
Loading…
↗
16
97880−06016
Screw pan head
Loading…
↗
17
61U−24424−00
Seat, Spring
Loading…
↗
18
92990−06100
Washer(6a1)
Loading…
↗
19
61U−24491−10
Bracket, Fuel Pump
Loading…
↗
20
97095−06020
Bolt(7u8)
Loading…
↗
21
92995−06600
Washer, plain (646)
Loading…
↗
22
61U−24315−00
Pipe 5
Loading…
↗
24
90465−08M46
Clamp(61u)
Loading…
↗
25
97095−06012
Bolt(gh1)
Loading…
↗
27
90445−07MA3
Hose (l200)
Loading…
↗
28
90445−07M32
Hose (l200)
Loading…
↗
29
90468−07M02
Clip (6e5)
Loading…
↗
30
61U−24317−00
Pipe 7
Loading…
↗
33
61A−24500−00
Fuel cock assembly 1
Loading…
↗
34
90445−13M02
Hose (l90)
Loading…
↗
36
61U−24496−00
Knob
Loading…
↗
37
95380−05600
Nut, hexagon (663)
Loading…
↗
38
90386−05M54
Bushing (6g8)
Loading…
↗
39
90501−07M81
Spring, compression(61u)
Loading…
↗
40
90201−05M06
Washer, plate(61u)
Loading…
↗
41
90468−05M03
Clip(6j8)
Loading…
↗
42
61U−24494−00
Wire, pull
Loading…
↗
43
97095−05010
Bolt (682)
Loading…
↗
44
92995−05600
Washer, plain (646)
Loading…
↗
46
92995−06100
Washer(6a1)
Loading…
↗
48
61U−42744−00
Stay
Loading…
↗
49
97095−06016
Bolt, hexagon deep recess
Loading…
↗
