F200BET (2025)
FUEL 2

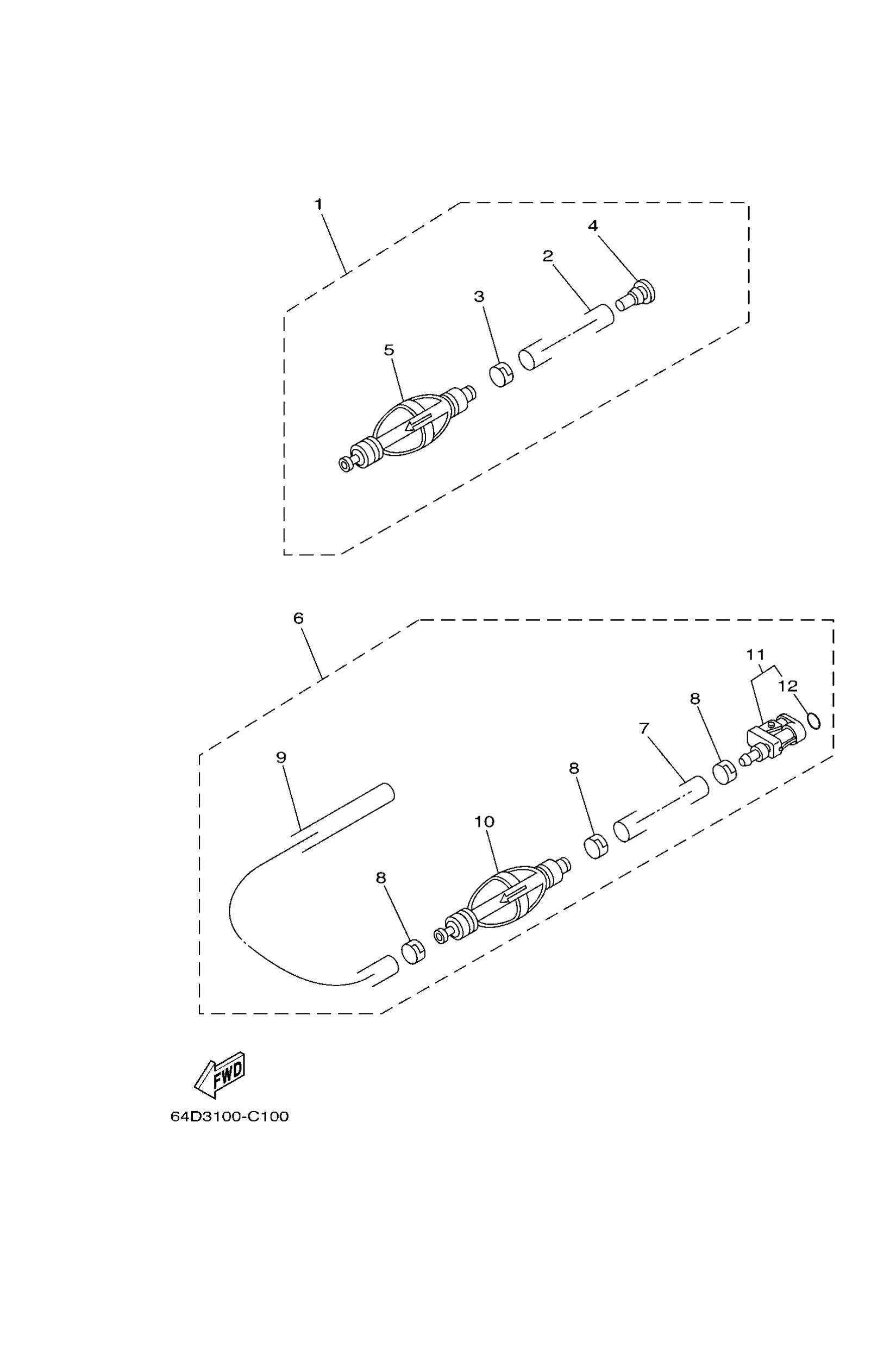

Diagram: FUEL 2
Parts List
Reference
Description
Price
1
6Y22430752
AP 6S1-EXCEPT FOR CHN
Fuel pipe comp. 2
Loading…
↗
2
9044513M25
Hose (l2050)
Loading…
↗
3
6E52435151
Band 1
Loading…
↗
4
9048006M19
Grommet (6e3)
Loading…
↗
5
6Y22436060
Primer pump assembly
Loading…
↗
6
6Y22430646
AP FOR CHN
Fuel pipe comp. 1
Loading…
↗
9
9044513M26
Hose (L250)
Loading…
↗
11
6Y22430506
Fuel pipe joint comp. 2
Loading…
↗
12
9321008287
O-ring (655)
Loading…
↗
