F25GET (2022)
FUEL 2

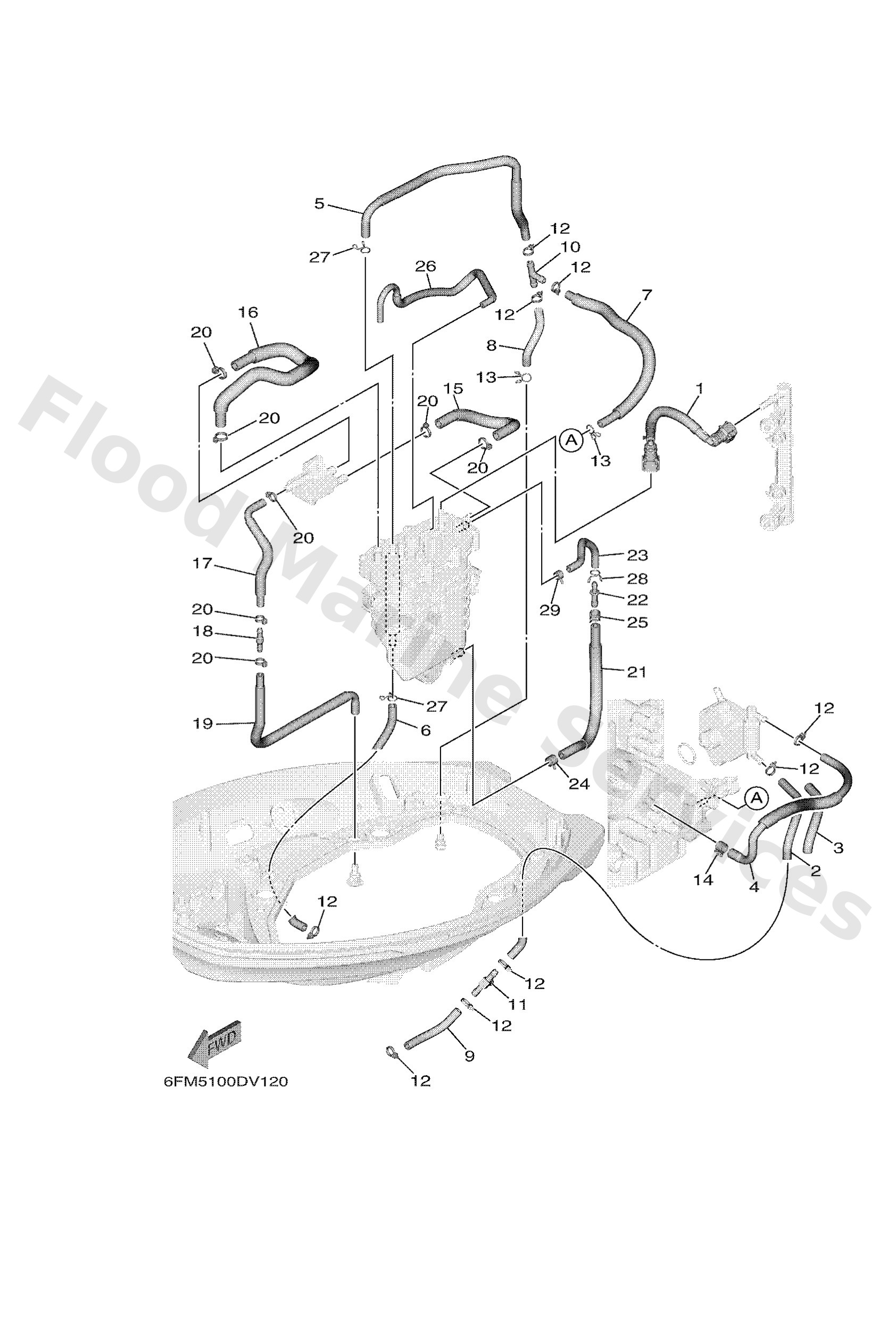

Diagram: FUEL 2
Parts List
Reference
Description
Price
1
6FM2431001
Fuel pipe assembly
Loading…
↗
2
9044509091
Hose (l135)
Loading…
↗
3
6FM1249800
Protector
Loading…
↗
4
6FM1248201
Pipe 2
Loading…
↗
5
6FM1248300
Pipe 3
Loading…
↗
6
6FM1248400
Pipe 4
Loading…
↗
7
6FM1248501
Pipe 5
Loading…
↗
8
9044509063
Hose (l1500)
Loading…
↗
9
9044509012
Hose (l1500)
Loading…
↗
10
6882437800
Pipe, joint
Loading…
↗
11
6C52437800
Pipe, joint 4
Loading…
↗
12
9046511M10
Clamp
Loading…
↗
13
9046708M10
Clip, pipe 6162435600
Loading…
↗
14
90467110A1
Clip
Loading…
↗
15
6FM1475A00
Pipe 1
Loading…
↗
16
6FM1475E01
Pipe 2
Loading…
↗
17
6FM1475F00
Pipe 3
Loading…
↗
18
6E52174400
Breezer
Loading…
↗
19
6FM1475G00
Pipe 4
Loading…
↗
21
6FM1243K00
Pipe, drain
Loading…
↗
22
6FM1419100
Plug, drain
Loading…
↗
23
6FM1443G00
Pipe, drain 2
Loading…
↗
25
90467090A4
Clip
Loading…
↗
26
6FM1354200
Hose, vacuum sensing 1
Loading…
↗
29
9046708092
Clip(41w)
Loading…
↗
