F4AMH (2002)
FUEL 2

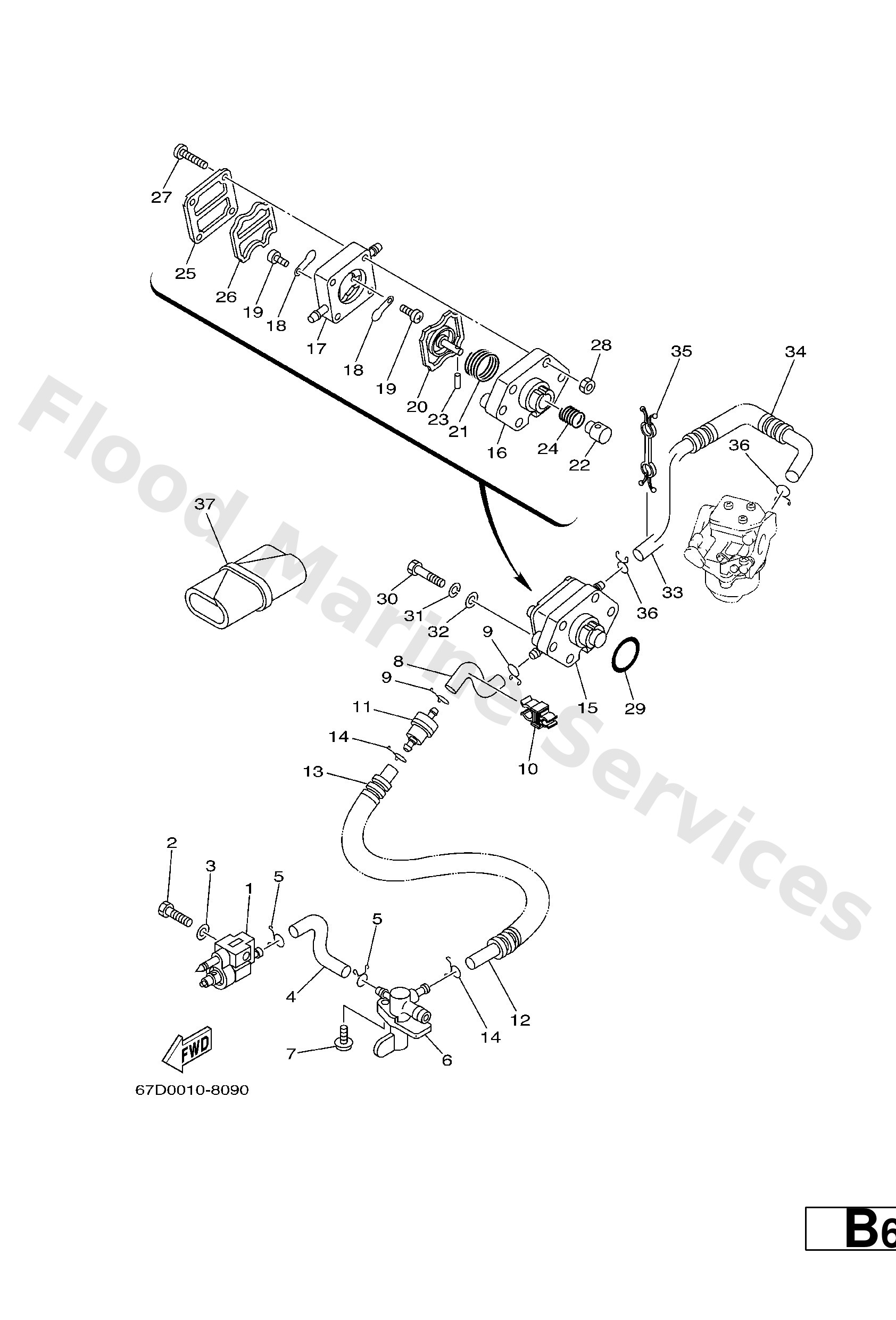

Diagram: FUEL 2
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
9709506025
Bolt
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
68DF431200
Pipe 2
Loading…
↗
5
9046709M09
Clip(6k8)
Loading…
↗
6
68DF450000
Fuel cock assembly 1
Loading…
↗
7
9015906M10
Screw, with washer(6l5)
Loading…
↗
8
68DF431300
Pipe 3
Loading…
↗
10
9046410M52
Clamp
Loading…
↗
11
6462425102
Strainer 1
Loading…
↗
12
9044510804
Hose (l400)
Loading…
↗
13
9044614M12
Hose(6tc)
Loading…
↗
15
67D2441002
Fuel pump assembly
Loading…
↗
16
67D2441200
Body 1
Loading…
↗
17
67D2441302
Body 2
Loading…
↗
18
6A02442101
Valve, check
Loading…
↗
19
6E71432500
Screw, pan head
Loading…
↗
20
67D2441100
Diaphragm
Loading…
↗
21
67D2442300
Spring, diaphragm
Loading…
↗
22
67D1313100
Plunger
Loading…
↗
23
66M2437400
Pin
Loading…
↗
24
67D2445400
Spring
Loading…
↗
25
67D2441401
Body 3
Loading…
↗
26
66M2447100
Diaphragm
Loading…
↗
27
67D2444400
Screw
Loading…
↗
28
9538004600
Nut,hex
Loading…
↗
29
9321027ME3
O-ring
Loading…
↗
30
9709506030
Bolt(jf7)
Loading…
↗
31
9299506100
Washer(6a1)
Loading…
↗
33
9044510805
Hose (l400)
Loading…
↗
35
9046410M53
Clamp
Loading…
↗
37
68DF810000
Tool Kit
