F4BMH (2025)
FUEL 2

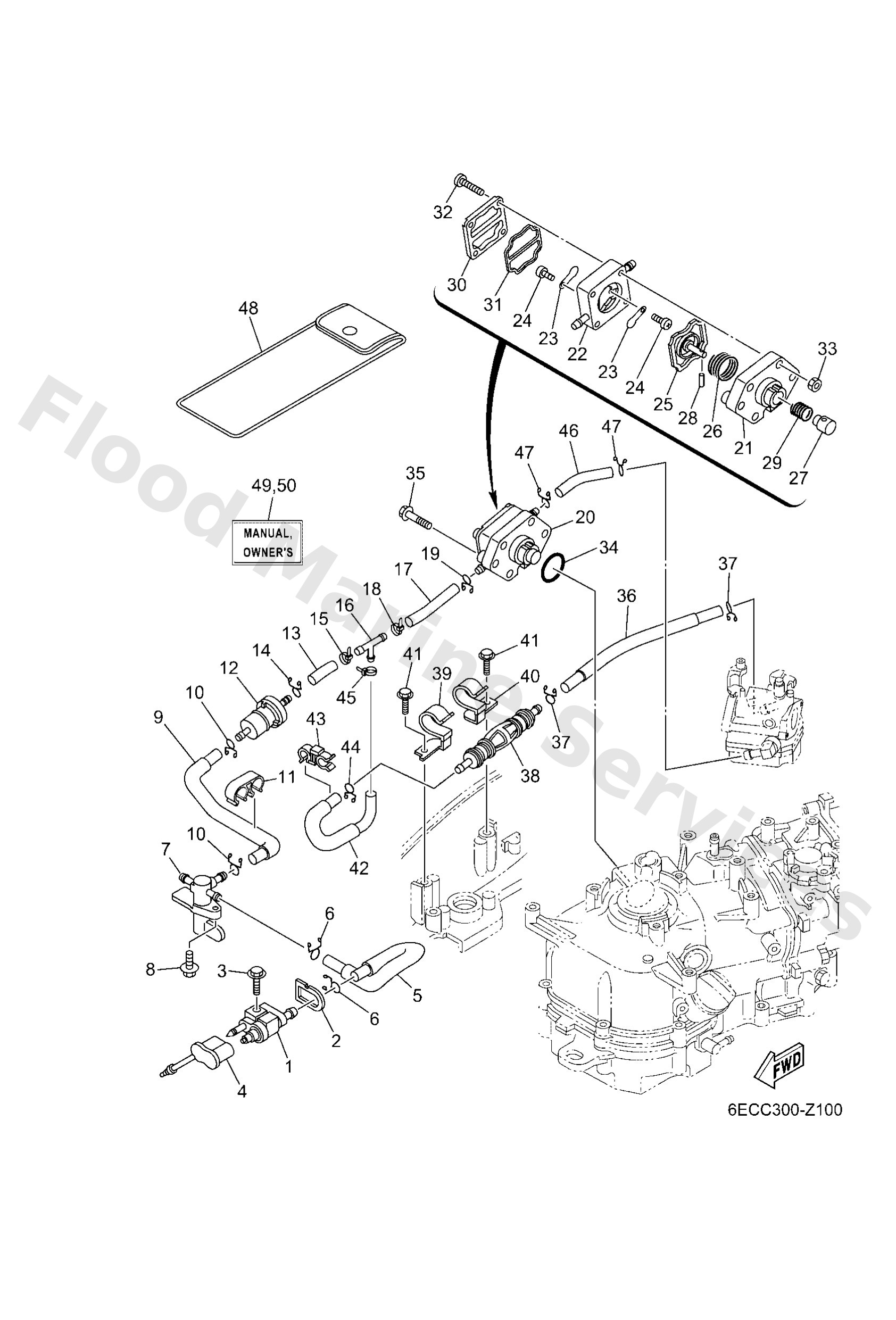

Diagram: FUEL 2
Parts List
Reference
Description
Price
1
6G12430411
Fuel pipe joint comp. 1
Loading…
↗
2
61N2432901
Seal
Loading…
↗
3
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
4
6BX2476U00
Protector,1
Loading…
↗
5
6EE2431200
Pipe 2
Loading…
↗
6
9046709M09
Clip(6k8)
Loading…
↗
7
6EE2450000
Fuel cock assembly 1
Loading…
↗
8
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
9
6EE2431300
Pipe 3
Loading…
↗
11
9046412016
Clamp
Loading…
↗
12
68T2425101
Strainer 1
Loading…
↗
13
9044510078
Hose
Loading…
↗
15
9046511M10
Clamp
Loading…
↗
16
6882437800
Pipe, joint
Loading…
↗
17
9044510M46
Hose (l200)
Loading…
↗
20
6BX2441001
Fuel pump assembly
Loading…
↗
21
67D2441200
Body 1
Loading…
↗
22
67D2441302
Body 2
Loading…
↗
23
6A02442101
Valve, check
Loading…
↗
24
6E71432500
Screw, pan head
Loading…
↗
25
6BX2441101
Diaphragm
Loading…
↗
26
67D2442300
Spring, diaphragm
Loading…
↗
27
6BX1313100
Plunger
Loading…
↗
28
66M2437400
Pin
Loading…
↗
29
6BX2445400
Spring
Loading…
↗
30
67D2441401
Body 3
Loading…
↗
31
66M2447102
Diaphragm
Loading…
↗
32
67D2444400
Screw
Loading…
↗
33
9538004600
Nut,hex
Loading…
↗
34
9321027ME3
O-ring
Loading…
↗
35
97E9506630
Bolt, hexagon w/w deep recess
Loading…
↗
36
9044510075
Hose
Loading…
↗
38
6BX2436000
Primer pump assembly
Loading…
↗
39
6EE2413500
Clamp 1
Loading…
↗
40
6EE2413600
Clamp 2
Loading…
↗
41
9010906M80
Bolt
Loading…
↗
42
6EE2247A00
Hose 1
Loading…
↗
43
9046409021
Clamp
Loading…
↗
46
9044510073
Hose
Loading…
↗
48
6EG2810000
AP
Tool Kit
Loading…
↗
49
6EC2819970E0
UR (E)
Manual,Owner's
Loading…
↗
49
6EC2819970F0
UR (F)
Manual,Owner's
Loading…
↗
49
6EC2819970S0
UR (ES)
Manual,Owner's
Loading…
↗
49
6EC2819970G0
UR (D)
Manual,Owner's
Loading…
↗
49
6EC2819970D0
UR (NL)
Manual,Owner's
Loading…
↗
49
6EC2819970H0
UR (I)
Manual,Owner's
Loading…
↗
50
6EC2819980K0
UR (DK)
Manual,Owner's
Loading…
↗
50
6EC2819980R0
UR (GR)
Manual,Owner's
Loading…
↗
50
6EC2819980P0
UR (P)
Manual,Owner's
Loading…
↗
50
6EC2819980N0
UR (N)
Manual,Owner's
Loading…
↗
50
6EC2819980M0
UR (S)
Manual,Owner's
Loading…
↗
50
6EC2819980L0
UR (SF)
Manual,Owner's
Loading…
↗
