F6CMH (2011)
FUEL 2

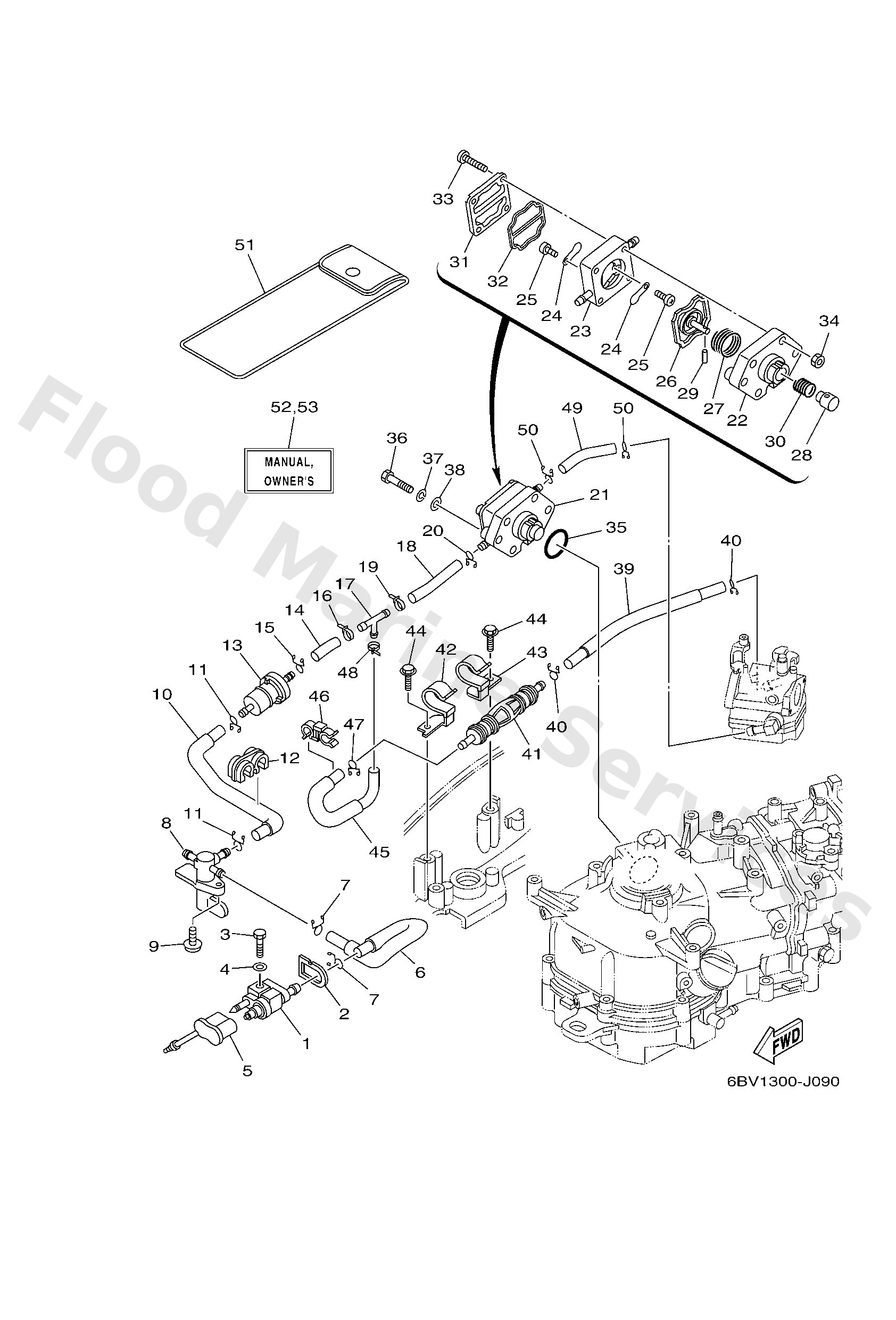

Diagram: FUEL 2
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
60RF432900
Seal
Loading…
↗
3
9709506025
Bolt
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
6BX2476U00
Protector,1
Loading…
↗
6
6BXF431200
Pipe 2
Loading…
↗
7
9046709M09
Clip(6k8)
Loading…
↗
8
6BX2450000
Fuel cock assembly 1
Loading…
↗
9
9015906M10
Screw, with washer(6l5)
Loading…
↗
10
6BXF431300
Pipe 3
Loading…
↗
12
9046412224
Clamp(4pe)
Loading…
↗
13
68T2425101
Strainer 1
Loading…
↗
14
6BXF247C00
Hose 3
Loading…
↗
16
9046511M10
Clamp
Loading…
↗
17
6882437800
Pipe, joint
Loading…
↗
18
6BXF247D00
Hose 4
Loading…
↗
21
6BX2441000
Fuel pump assembly
Loading…
↗
22
67D2441200
Body 1
Loading…
↗
23
67D2441302
Body 2
Loading…
↗
24
6A02442101
Valve, check
Loading…
↗
25
6E71432500
Screw, pan head
Loading…
↗
26
6BX2441100
Diaphragm
Loading…
↗
27
67D2442300
Spring, diaphragm
Loading…
↗
28
6BX1313100
Plunger
Loading…
↗
29
66M2437400
Pin
Loading…
↗
30
6BX2445400
Spring
Loading…
↗
31
67D2441401
Body 3
Loading…
↗
32
66M2447101
Diaphragm
Loading…
↗
33
67D2444400
Screw
Loading…
↗
34
9538004600
Nut,hex
Loading…
↗
35
9321027ME3
O-ring
Loading…
↗
36
9709506030
Bolt(jf7)
Loading…
↗
37
9299506100
Washer(6a1)
Loading…
↗
39
6BXF247B00
Hose 2
Loading…
↗
41
6BX2436000
Primer pump assembly
Loading…
↗
42
6BX2413500
Clamp 1
Loading…
↗
43
6BX2413600
Clamp 2
Loading…
↗
44
9010906M80
Bolt
Loading…
↗
45
6BXF247A00
Hose 1
Loading…
↗
46
9046409021
Clamp
Loading…
↗
49
6BXE397100
Pipe, fuel 1
Loading…
↗
51
6BXF810000
AP
Tool kit
Loading…
↗
52
6BVF819971E0
UR (E)
Om f4b/f5a/f6c''11
Loading…
↗
52
6BVF819971F0
UR (F)
Om f4b/f5a/f6c''11
Loading…
↗
52
6BVF819971S0
UR (ES)
Om f4b/f5a/f6c''11
Loading…
↗
52
6BVF819971G0
UR (D)
Om f4b/f5a/f6c''11
Loading…
↗
52
6BVF819971D0
UR (NL)
Om f4b/f5a/f6c''11
Loading…
↗
52
6BVF819971H0
UR (I)
Om f4b/f5a/f6c''11
Loading…
↗
53
6BVF819981K0
UR (DK)
Om f4b/f5a/f6c''11
Loading…
↗
53
6BVF819981R0
UR (GR)
Om f4b/f5a/f6c''11
Loading…
↗
53
6BVF819981P0
UR (P)
Om f4b/f5a/f6c''11
Loading…
↗
53
6BVF819981N0
UR (N)
Om f4b/f5a/f6c''11
Loading…
↗
53
6BVF819981M0
UR (S)
Om f4b/f5a/f6c''11
Loading…
↗
53
6BVF819981L0
UR (SF)
Om f4b/f5a/f6c''11
Loading…
↗
