Yamaha Outboard Parts - FUEL 2 - FL300AET (2008) | Flood Marine

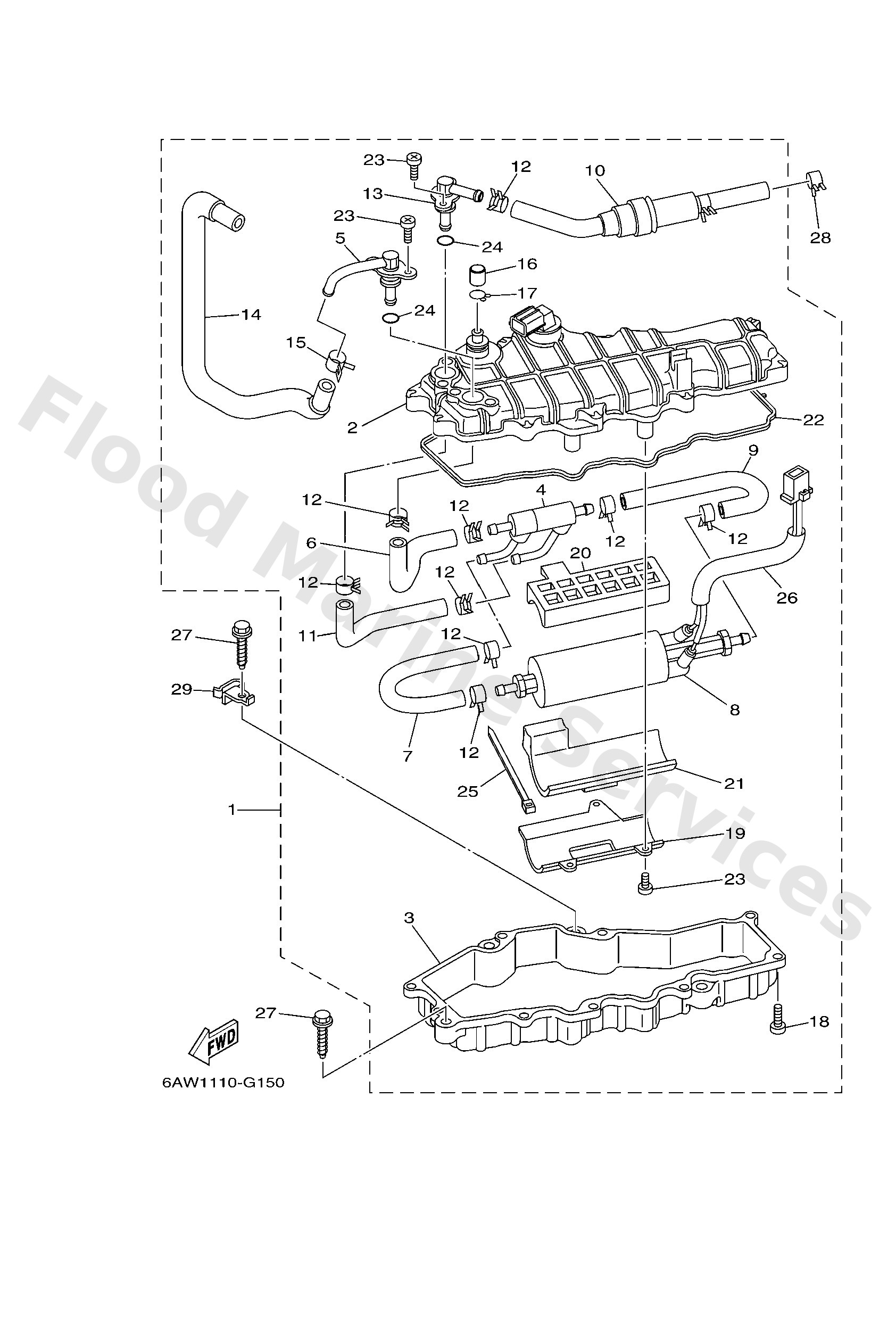

Diagram: FUEL 2

Diagram

Parts List

Reference
Description
Price


1
6AW2440800
Fuel feed assembly
Loading…

↗
2
6AW244A000
Pump Case Comp.
Loading…

↗
3
6AW244A100
Case, Pump 1
Loading…

↗
4
6AW2446000
Relief valve assembly
Loading…

↗
5
6AW2437800
Pipe, joint 3
Loading…

↗
6
6AW2432200
-
Loading…

↗
7
6AW2432300
Pipe 12
Loading…

↗
8
6AW2441000
Fuel pump assembly
Loading…

↗
9
6AW2432400
Pipe 13
Loading…

↗
10
6AW2450200
Filter, fuel
Loading…

↗
11
6AW2432500
Pipe 14
Loading…

↗
12
68V1357700
Clip
Loading…

↗
13
6AW2437900
Pipe, joint 4
Loading…

↗
14
6AW2432100
Pipe 10
Loading…

↗
15
69J1413700
Clip
Loading…

↗
16
6AW1411800
Cap
Loading…

↗
17
6AW2435600
-
Loading…

↗
18
6AW1456700
Screw
Loading…

↗
19
6AW2449100
Bracket, fuel pump
Loading…

↗
20
6AW2449200
Bush, Fuel Pump
Loading…

↗
21
6AW2449210
Bush, fuel pump
Loading…

↗
22
6AW2443100
Gasket, fuel pump 1
Loading…

↗
23
6AW1456500
Screw
Loading…

↗
24
68V1439700
O-ring
Loading…

↗
25
68V2481H00
Clamp
Loading…

↗
26
6AW2432700
Protector, pipe
Loading…

↗
27
9010906MA2
Bolt
Loading…

↗
28
90467120A0
Clip
Loading…

↗
29
9046212009
Clamp
Loading…

↗
