L250AETO (2002)
FUEL 2

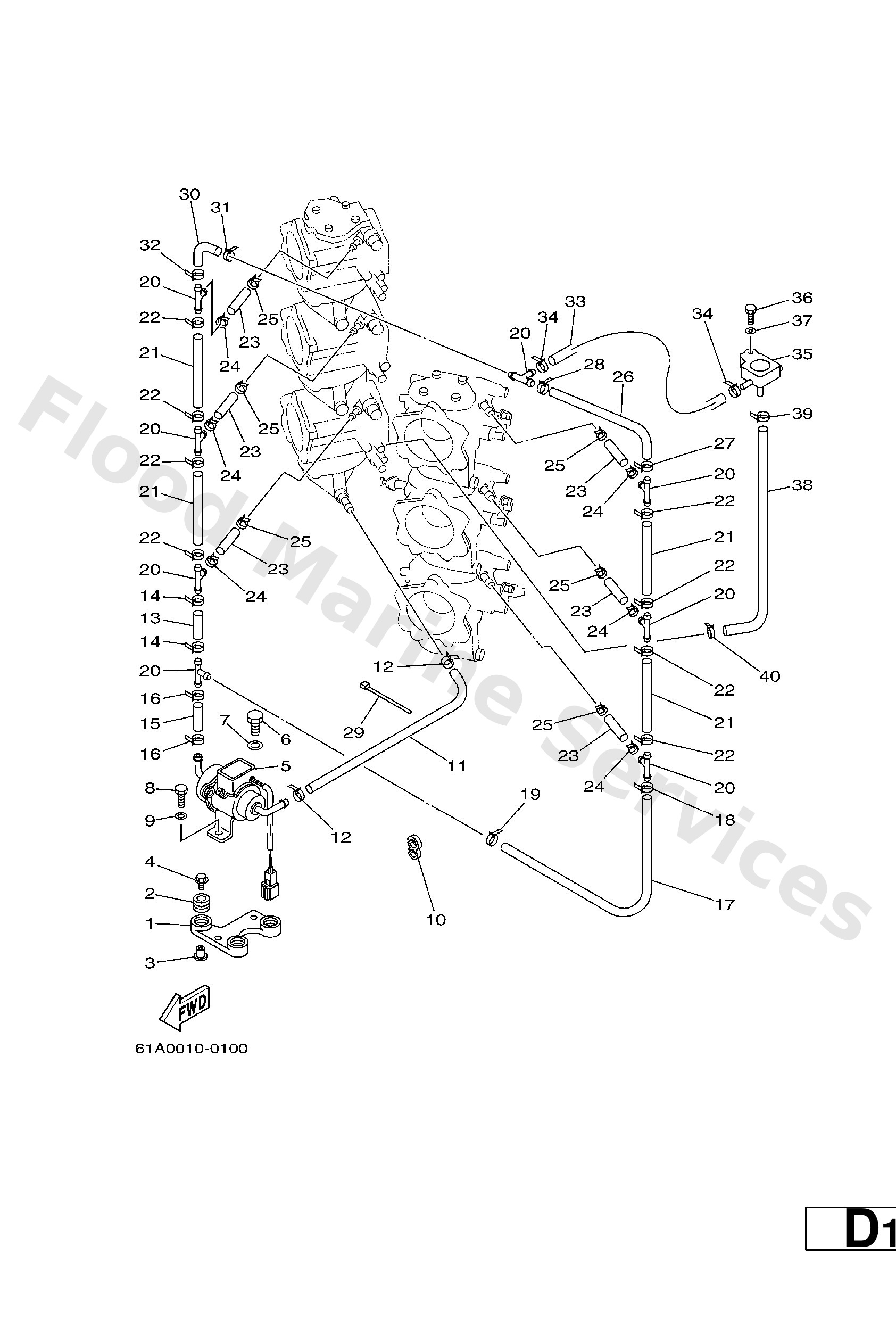

Diagram: FUEL 2
Parts List
Reference
Description
Price
1
61A−24491−00−94
Bracket, Fuel Pump
Loading…
↗
2
6A0−82317−00
Damper, ignition coil
Loading…
↗
3
624−42542−00
Collar
Loading…
↗
4
90119−06M65
Bolt, with washer
Loading…
↗
5
61A−13910−01
Fuel pump assembly
Loading…
↗
6
97095−08014
Bolt, hexagon deep recess
Loading…
↗
7
92995−08600
Washer, plain (663)
Loading…
↗
8
97095−06014
Bolt(gj3)
Loading…
↗
9
92995−06600
Washer, plain (646)
Loading…
↗
10
90464−13M34
Clamp(6r3)
Loading…
↗
11
6A4−24315−00
Pipe 5
Loading…
↗
12
90465−11M10
Clamp
Loading…
↗
13
90445−10M31
Hose (l45)
Loading…
↗
15
90445−10M14
Hose (l400)
Loading…
↗
17
90445−10M40
Hose (l400)
Loading…
↗
20
688−24378−00
Pipe, joint
Loading…
↗
21
90445−10M53
Hose (l400)
Loading…
↗
23
61A−24316−00
Pipe 6
Loading…
↗
29
90464−11M24
Clamp(6h1)
Loading…
↗
30
90445−10M16
Hose (l400)
Loading…
↗
33
61A−24315−00
Pipe 5
Loading…
↗
35
61A−24470−01
Fuel Regulator.assembly
Loading…
↗
36
97095−06035
Bolt(j52)
Loading…
↗
38
90445−10M92
Hose (L450)
Loading…
↗
