Yamaha Outboard Parts - FUEL 2 - VZ150TRC (2004) | Flood Marine

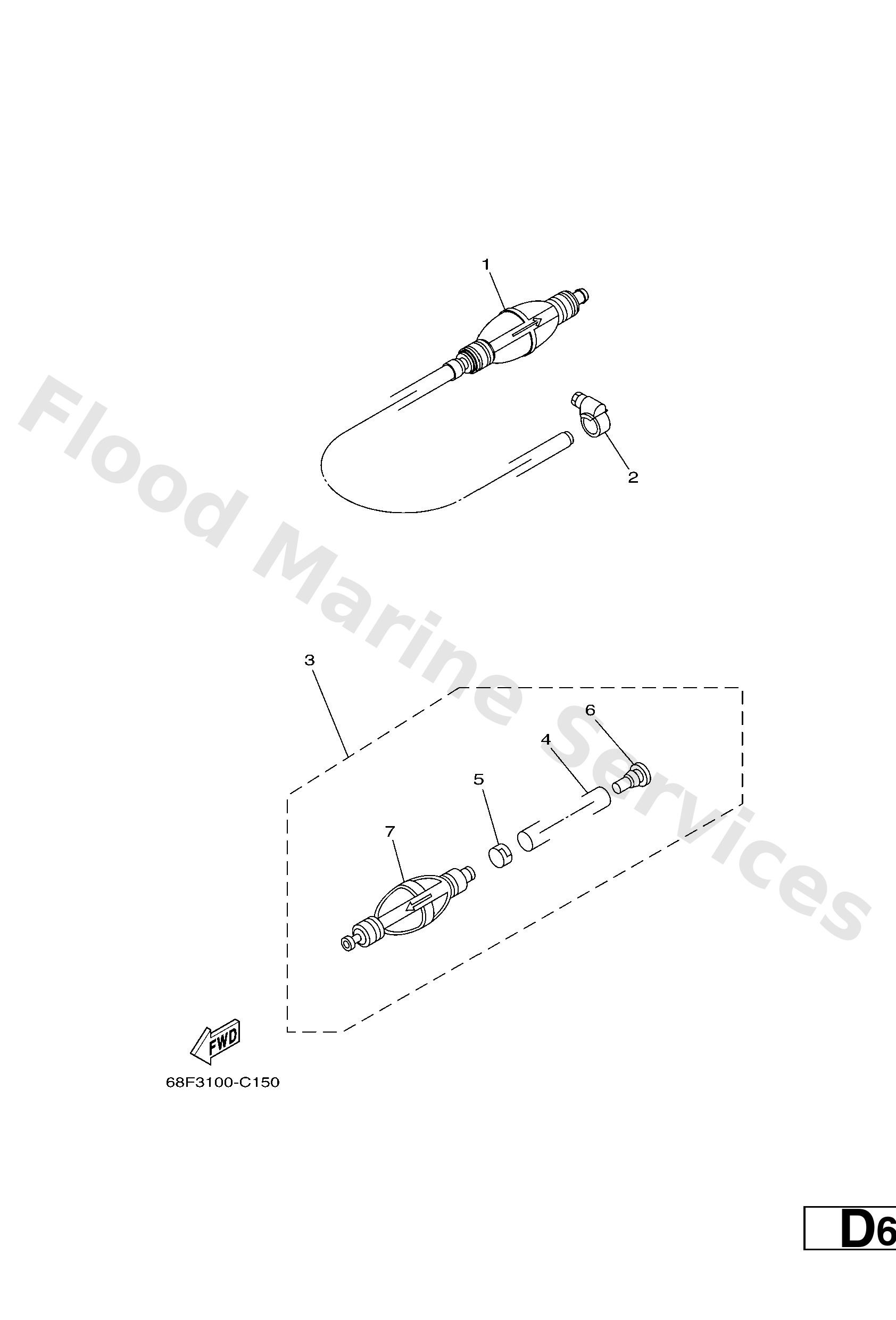

Diagram: FUEL 2

Diagram

Parts List

Reference
Description
Price


1
6YK2430742 AP FOR CAN
Fuel pipe comp. 2
Loading…

↗
2
9045010M07 AP FOR CAN
Hose, clamp
Loading…

↗
3
6Y22430750 AP FOR OCE
Fuel pipe comp. 2
Loading…

↗
4
9044513M01
Hose (l2050)
Loading…

↗
5
6E52435151
Band 1
Loading…

↗
6
9048006M19
Grommet (6e3)
Loading…

↗
7
6Y22436060
Primer pump assembly
Loading…

↗
