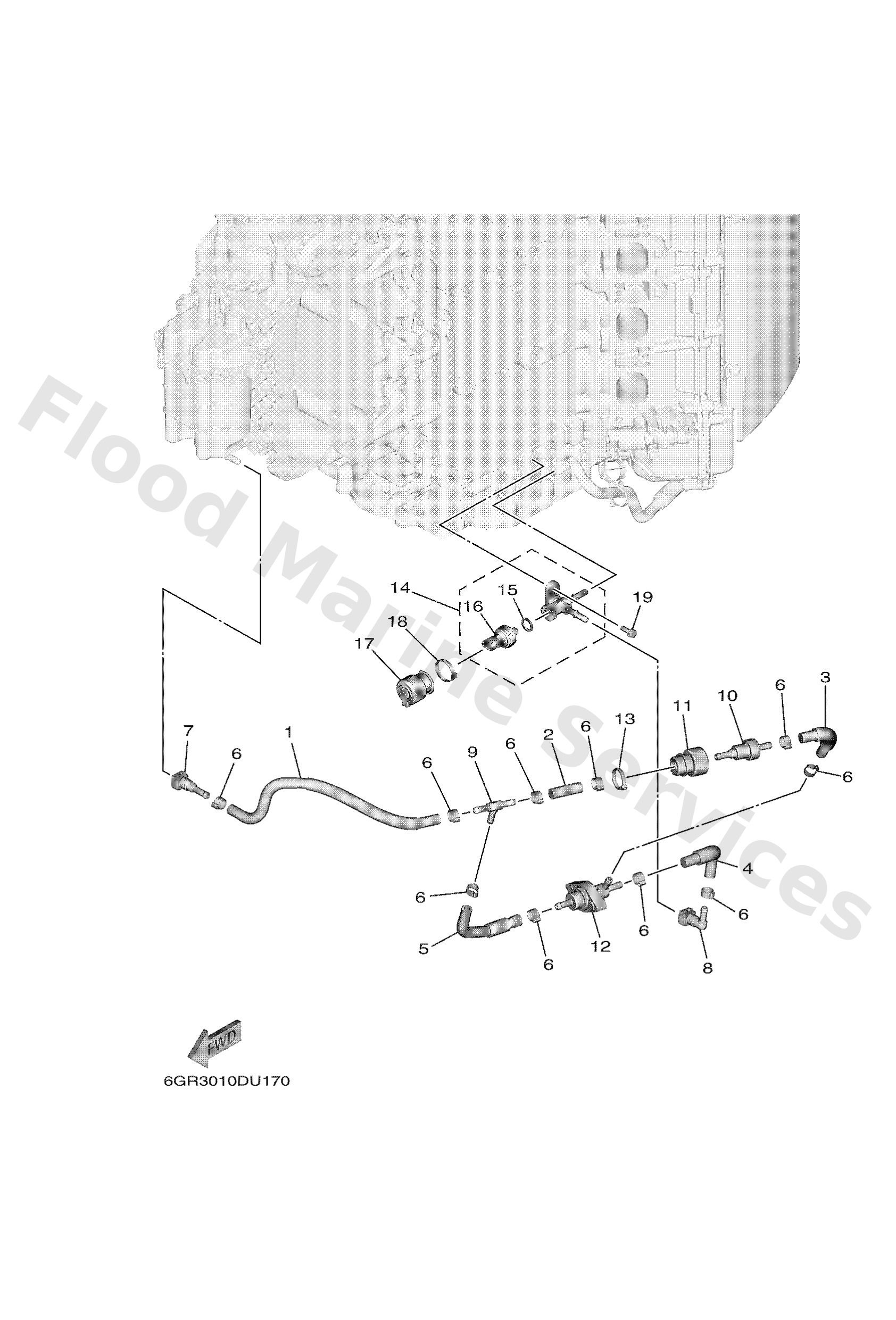

Diagram: FUEL 2

Diagram

Parts List

Reference
Description
Price


1
6GR2431300
Pipe 3
Loading…

↗
2
6GR2431400
Pipe 4
Loading…

↗
3
6GR2431500
Pipe 5
Loading…

↗
4
6GR2431600
Pipe 6
Loading…

↗
5
6GR2431710
Pipe 7
Loading…

↗
6
90467141A1
Clip
Loading…

↗
7
6AW2430011
Fuel pipe joint
Loading…

↗
8
6AW2430001
Fuel pipe joint
Loading…

↗
9
6CB2446100
Pipe, joint
Loading…

↗
10
6GR2440801
Fuel feed assembly
Loading…

↗
11
6GR2421700
Cover
Loading…

↗
12
6GR2446001
Relief valve assembly
Loading…

↗
13
9046513M97
Clamp
Loading…

↗
14
6GR8A41100
Sensor unit 1
Loading…

↗
15
6GR825A800
Seal, sensor
Loading…

↗
16
6GR8242100
Sensor, fuel pressure
Loading…

↗
17
6GR2464E01
Cover, cap
Loading…

↗
19
97E9506516
Bolt, hexagon w/w deep recess
Loading…

↗
