XF375NSA (2018)
FUEL 3

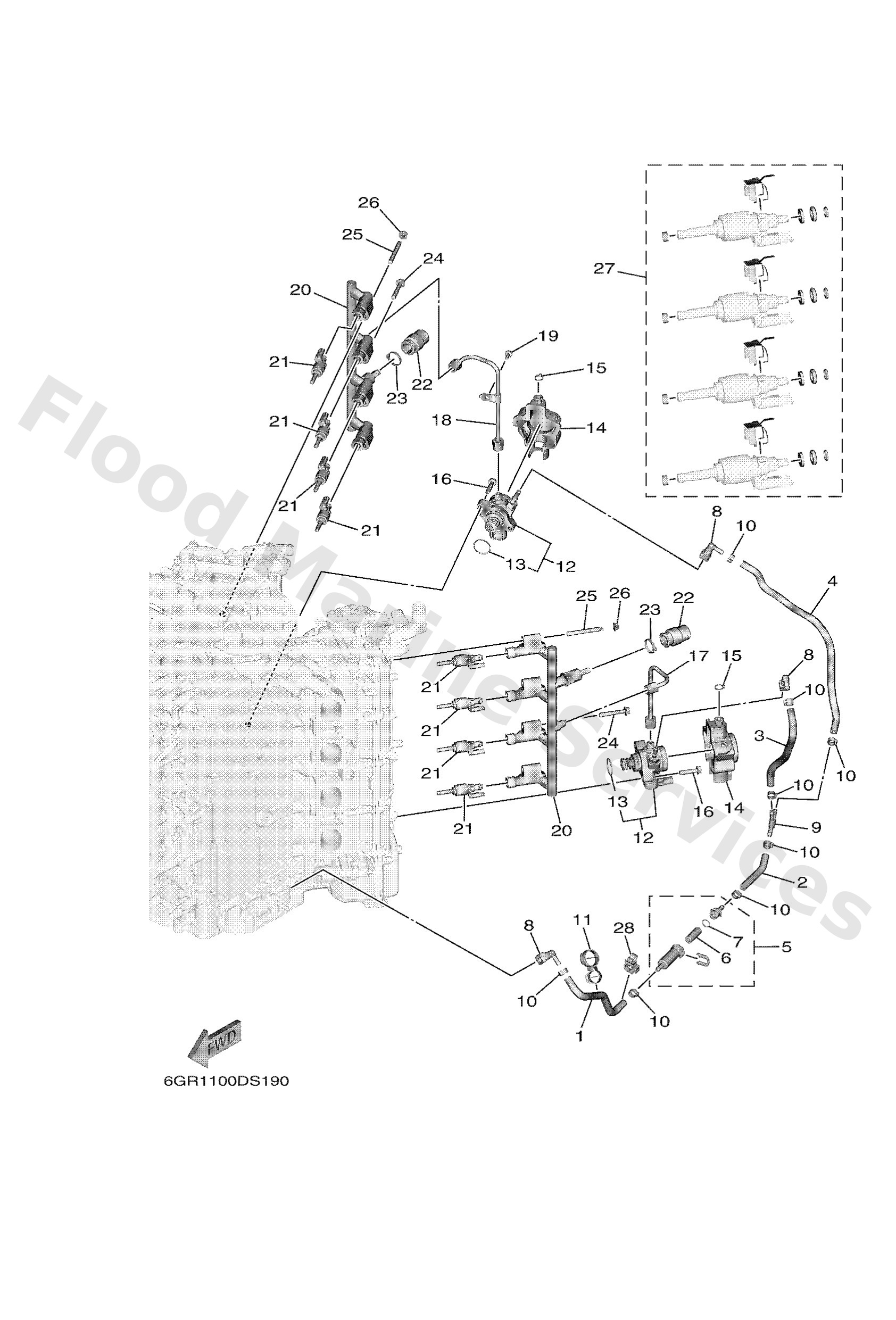

Diagram: FUEL 3
Parts List
Reference
Description
Price
1
6GR243A100
Pipe 15
Loading…
↗
2
6GR243A200
Pipe 16
Loading…
↗
3
6GR243A300
Pipe 17
Loading…
↗
4
6GR243A400
Pipe 18
Loading…
↗
5
6GR2425100
Strainer 1
Loading…
↗
6
6GR2450100
Filter, fuel
Loading…
↗
7
6GR1301600
O-ring
Loading…
↗
8
6AW2430000
Fuel pipe joint
Loading…
↗
9
6CB2446100
Pipe, joint
Loading…
↗
10
90467141A1
Clip
Loading…
↗
11
9046429223
Clamp(mg5)
Loading…
↗
12
6GR1391000
Fuel pump assembly
Loading…
↗
13
6GR1243900
O-ring
Loading…
↗
14
6GR2459500
Protector
Loading…
↗
15
9046511M10
Clamp
Loading…
↗
16
9759508535
Bolt, hexagon w/w deep recess
Loading…
↗
17
6GR1429500
Pipe, fuel
Loading…
↗
18
6GR1429600
Pipe, fuel 2
Loading…
↗
19
9589506014
Bolt, flange deep recess
Loading…
↗
20
6GR1316009
Delivery pipe assembly 1
Loading…
↗
21
6GR1376100
Injector
Loading…
↗
22
6GR2459900
Cap
Loading…
↗
23
9046513M97
Clamp
Loading…
↗
24
9010508175
Bolt, flange
Loading…
↗
25
9011608037
Bolt, stud
Loading…
↗
26
9017908M34
Nut
Loading…
↗
27
6GRW000500
O-ring set
Loading…
↗
28
9046416015
Clamp
Loading…
↗
