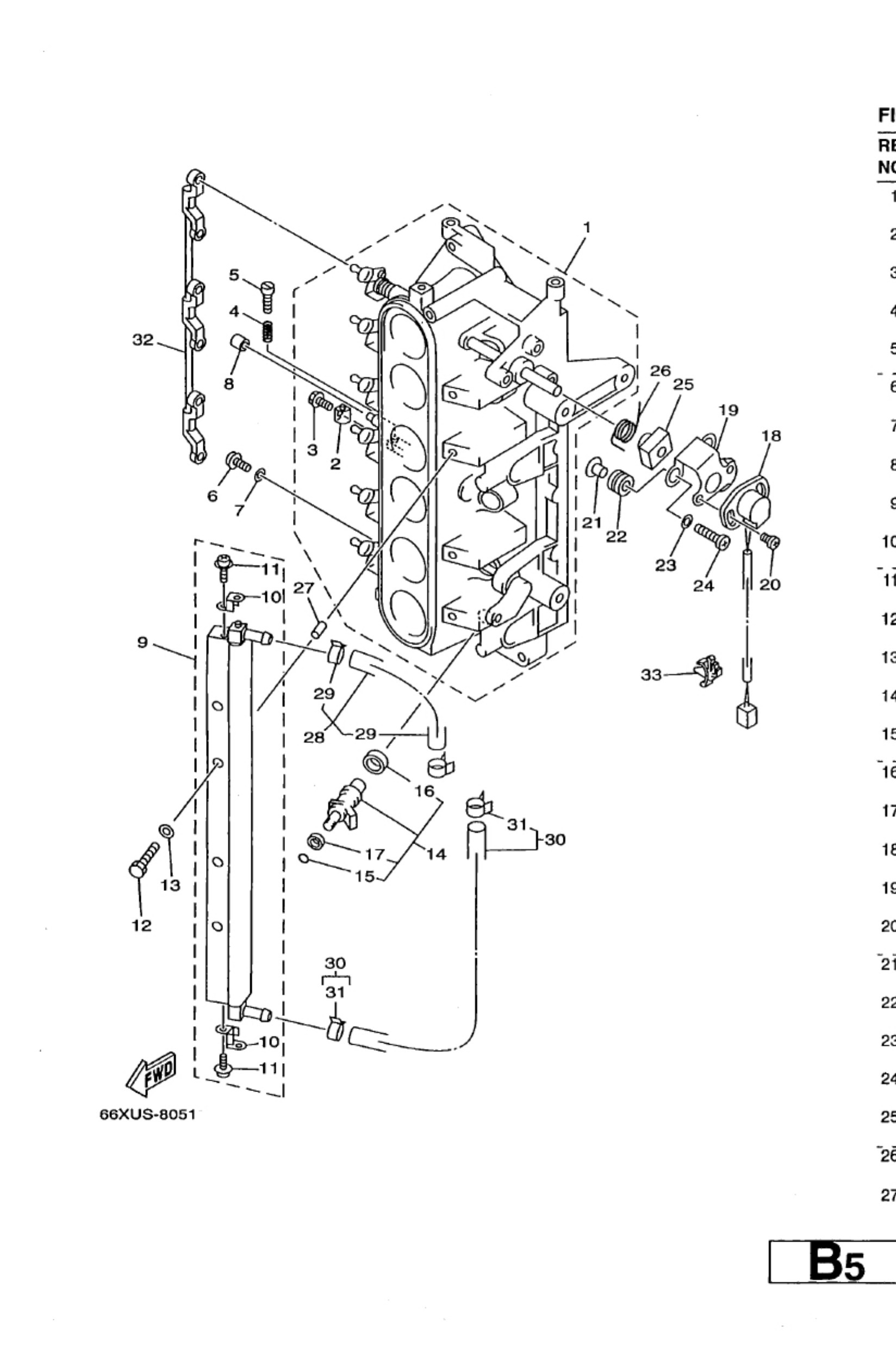

Diagram: FUEL INJECTION NOZZLE

Diagram

Parts List

Reference
Description
Price


1
66K1375100
Body, Throttle 1
Loading…

↗
2
65L1452700
Plate
Loading…

↗
3
65L1456500
Screw
Loading…

↗
4
65L1433400
Spring, air adjusting
Loading…

↗
5
65L1452300
Screw, stop
Loading…

↗
7
9020105552
Washer, plate(65j)
Loading…

↗
8
65L1457800
Collar
Loading…

↗
9
65L1393800
Pipe
Loading…

↗
10
65L1389800
Plate 4
Loading…

↗
13
65L1399500
Washer
Loading…

↗
14
65L1376100
Injector assembly
Loading…

↗
15
65L1376900
O-ring
Loading…

↗
17
65L1376600
Rubber, injector
Loading…

↗
18
61A8588500
Throttle sensor assembly
Loading…

↗
19
6K78588600
Bracket
Loading…

↗
20
9798505212
Screw, with washer(6g7)
Loading…

↗
22
9048010M23
Grommet(6k7)
Loading…

↗
23
65L1459600
Washer
Loading…

↗
24
9798505330
Screw, with washer(61b)
Loading…

↗
24
66XUS8051 LEVER
25 65L-14573-00
Loading…

↗
24
B5L1457900
Spring
Loading…

↗
27
65L1399600
Insert
Loading…

↗
