225GETO (2002)
FUEL INJECTION NOZZLE

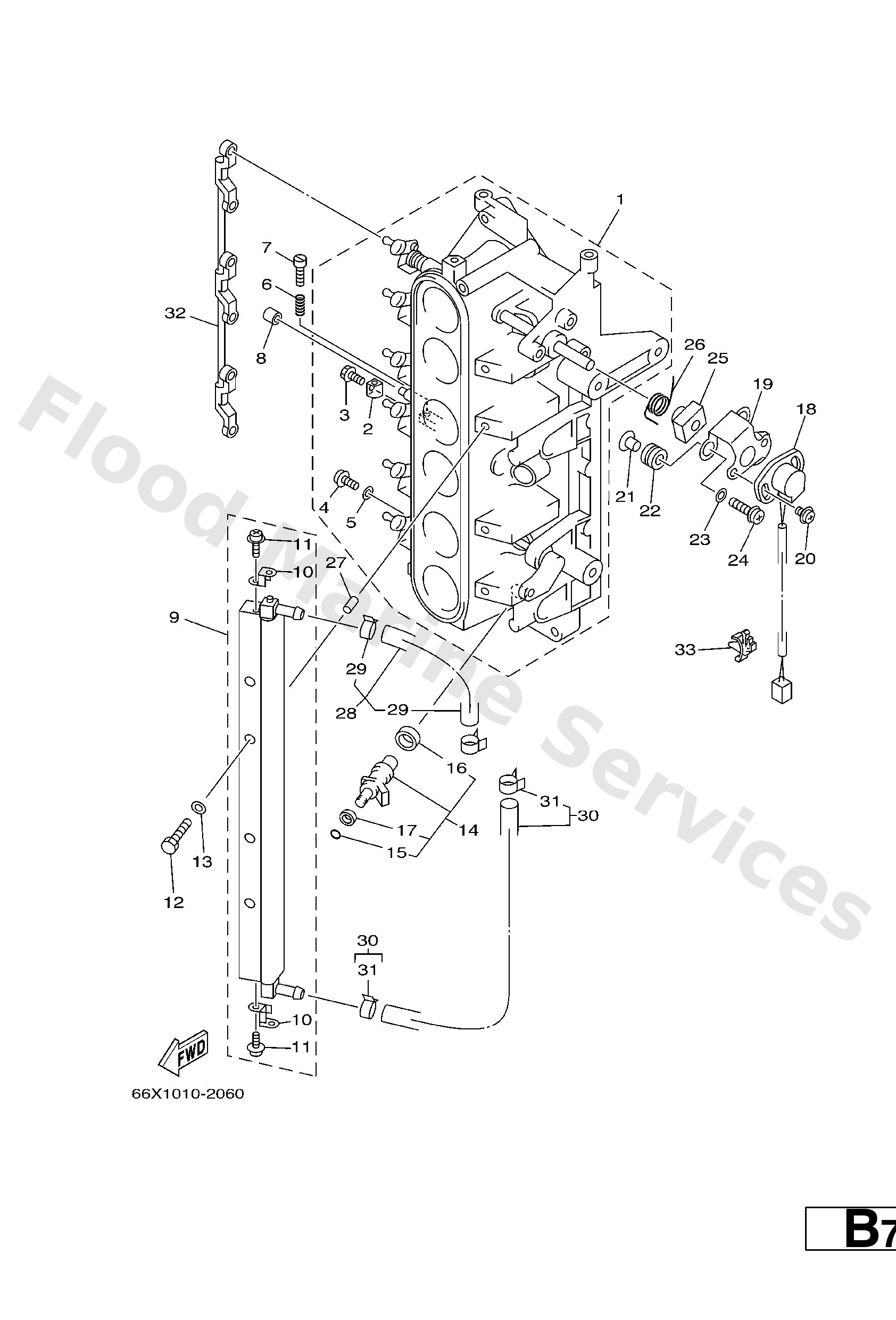

Diagram: FUEL INJECTION NOZZLE
Parts List
Reference
Description
Price
1
67H−13751−00
Body, throttle 1
Loading…
↗
2
65L−14527−00
Plate
Loading…
↗
3
65L−14565−00
Screw
Loading…
↗
4
6K5−14592−00
Screw
Loading…
↗
5
90201−05552
Washer, plate(65j)
Loading…
↗
6
65L−14334−00
Spring, air adjusting
Loading…
↗
7
65L−14523−00
Screw, stop
Loading…
↗
8
65L−14578−00
Collar
Loading…
↗
9
67H−13938−00
Pipe
Loading…
↗
10
67H−13898−00
Holder
Loading…
↗
12
65L−13573−00
Bolt 1
Loading…
↗
13
65L−13995−00
Washer
Loading…
↗
14
65L−13761−00
Injector assembly
Loading…
↗
15
65L−13769−00
O-ring
Loading…
↗
16
65L−13764−00
Gasket
Loading…
↗
17
65L−13766−00
Rubber, injector
Loading…
↗
18
61A−85885−00
Throttle sensor assembly
Loading…
↗
19
6K7−85886−00
Bracket
Loading…
↗
20
97985−05212
Screw, with washer(6g7)
Loading…
↗
21
90387−05M00
Collar(6k7)
Loading…
↗
22
90480−10M23
Grommet(6k7)
Loading…
↗
23
65L−14596−00
Washer
Loading…
↗
24
97985−05330
Screw, with washer(61b)
Loading…
↗
25
65L−14573−00
Lever
Loading…
↗
26
65L−14579−00
Spring
Loading…
↗
27
65L−13996−00
Insert
Loading…
↗
28
66K−13971−00
Pipe, fuel 1
Loading…
↗
29
65L−24387−00
Clip
Loading…
↗
30
67H−13972−00
Pipe, fuel 2
Loading…
↗
32
65L−41217−00
Rod, accel. lever
Loading…
↗
33
90464−04M12
Clamp (6h3)
Loading…
↗
