Yamaha Outboard Parts - FUEL INJECTION NOZZLE - FL115AET (2003) | Flood Marine

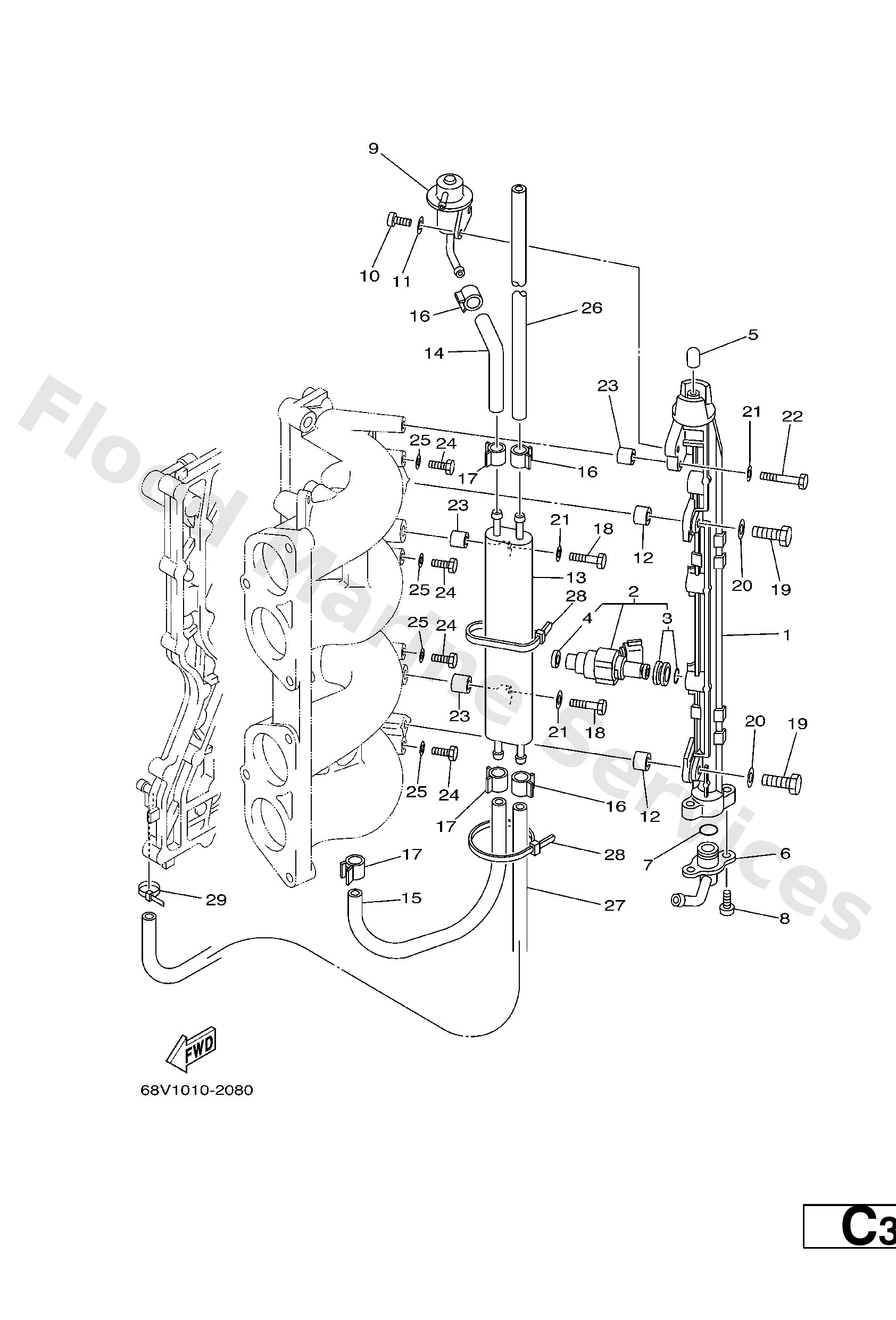

Diagram: FUEL INJECTION NOZZLE

Diagram

Parts List

Reference
Description
Price


1
68V−13160−00
Delivery pipe assembly 1
Loading…

↗
2
68V−8A360−00
Injector unit
Loading…

↗
3
68V−1410B−00
Packing kit
Loading…

↗
4
68V−13766−00
Rubber, injector
Loading…

↗
5
68V−14225−00
Cap
Loading…

↗
6
68V−13435−00
Nipple
Loading…

↗
7
68V−14397−00
O-ring
Loading…

↗
8
68V−81147−00
Screw 3
Loading…

↗
9
68V−13906−00
Regulator, pressure (with o-ri
Loading…

↗
10
68V−14565−00
Screw
Loading…

↗
11
68V−14356−00
Washer, spring
Loading…

↗
12
68V−14264−00
Collar
Loading…

↗
13
68V−21841−00
Cooler
Loading…

↗
14
68V−13971−00
Pipe, Fuel 1
Loading…

↗
15
68V−13972−00
Pipe, fuel 2
Loading…

↗
16
68V−24519−00
Clip
Loading…

↗
17
68V−2411M−00
Clip
Loading…

↗
18
68V−14777−00
Bolt
Loading…

↗
19
68V−14428−00
Bolt
Loading…

↗
20
68V−14475−00
Washer
Loading…

↗
21
68V−14357−00
Washer, plain
Loading…

↗
22
68V−14446−00
Bolt
Loading…

↗
23
68V−14265−00
Collar
Loading…

↗
24
97095−06010
Bolt
Loading…

↗
25
90430−06014
Gasket 256113960000
Loading…

↗
26
68V−2447A−00
Hose 1
Loading…

↗
27
68V−2247B−00
Hose 2
Loading…

↗
28
68V−2481H−00
Clamp
Loading…

↗
29
90465−11M10
Clamp
Loading…

↗
