Yamaha Outboard Parts - FUEL INJECTION NOZZLE - FL115AET (2009) | Flood Marine

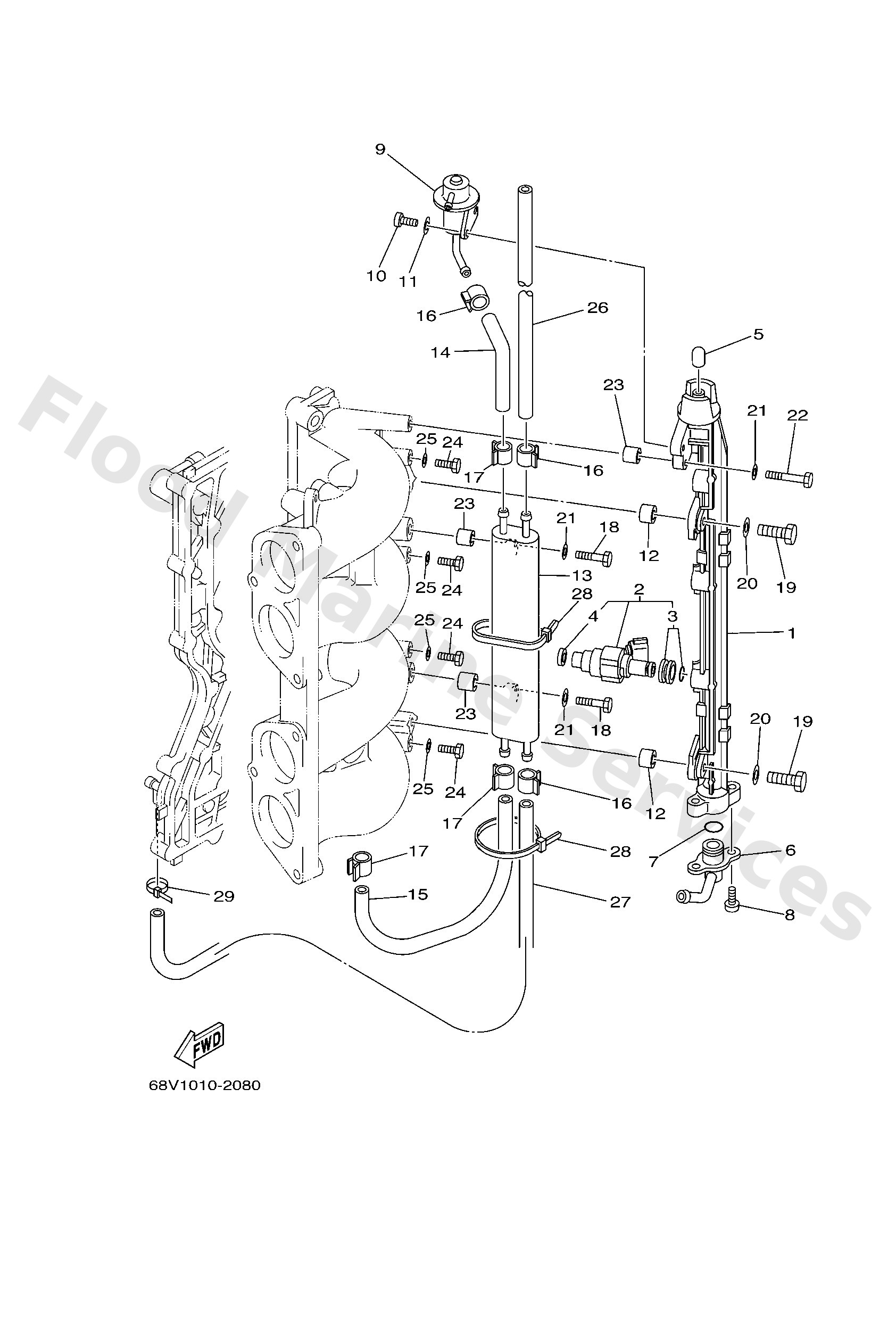

Diagram: FUEL INJECTION NOZZLE

Diagram

Parts List

Reference
Description
Price


1
68V1316000
Delivery pipe assembly 1
Loading…

↗
2
68V8A36000
Injector unit
Loading…

↗
3
68V1410B00
Packing kit
Loading…

↗
4
68V1376600
Rubber, injector
Loading…

↗
5
68V1422500
Cap
Loading…

↗
6
68V1343500
Nipple
Loading…

↗
7
68V1439700
O-ring
Loading…

↗
8
68V8114700
Screw 3
Loading…

↗
9
68V1390601
Regulator, pressure (with o-ri
Loading…

↗
10
68V1456500
Screw
Loading…

↗
11
68V1435600
Washer, spring
Loading…

↗
12
68V1426400
Collar
Loading…

↗
13
69J2184102
Cooler
Loading…

↗
14
68V1397100
Pipe, Fuel 1
Loading…

↗
15
68V1397200
Pipe, fuel 2
Loading…

↗
16
68V2451900
Clip
Loading…

↗
17
68V2411M00
Clip
Loading…

↗
18
68V1477700
Bolt
Loading…

↗
19
68V1442800
Bolt
Loading…

↗
20
68V1447500
Washer
Loading…

↗
21
68V1435700
Washer, plain
Loading…

↗
22
68V1444600
Bolt
Loading…

↗
23
68V1426500
Collar
Loading…

↗
24
9709506010
Bolt
Loading…

↗
25
9043006014
Gasket 256113960000
Loading…

↗
26
68V2247A10
Hose 1
Loading…

↗
27
68V2247B00
Hose 2
Loading…

↗
28
68V2481H00
Clamp
Loading…

↗
29
9046511M10
Clamp
Loading…

↗
