LZ250DETO (2003)
FUEL INJECTION NOZZLE

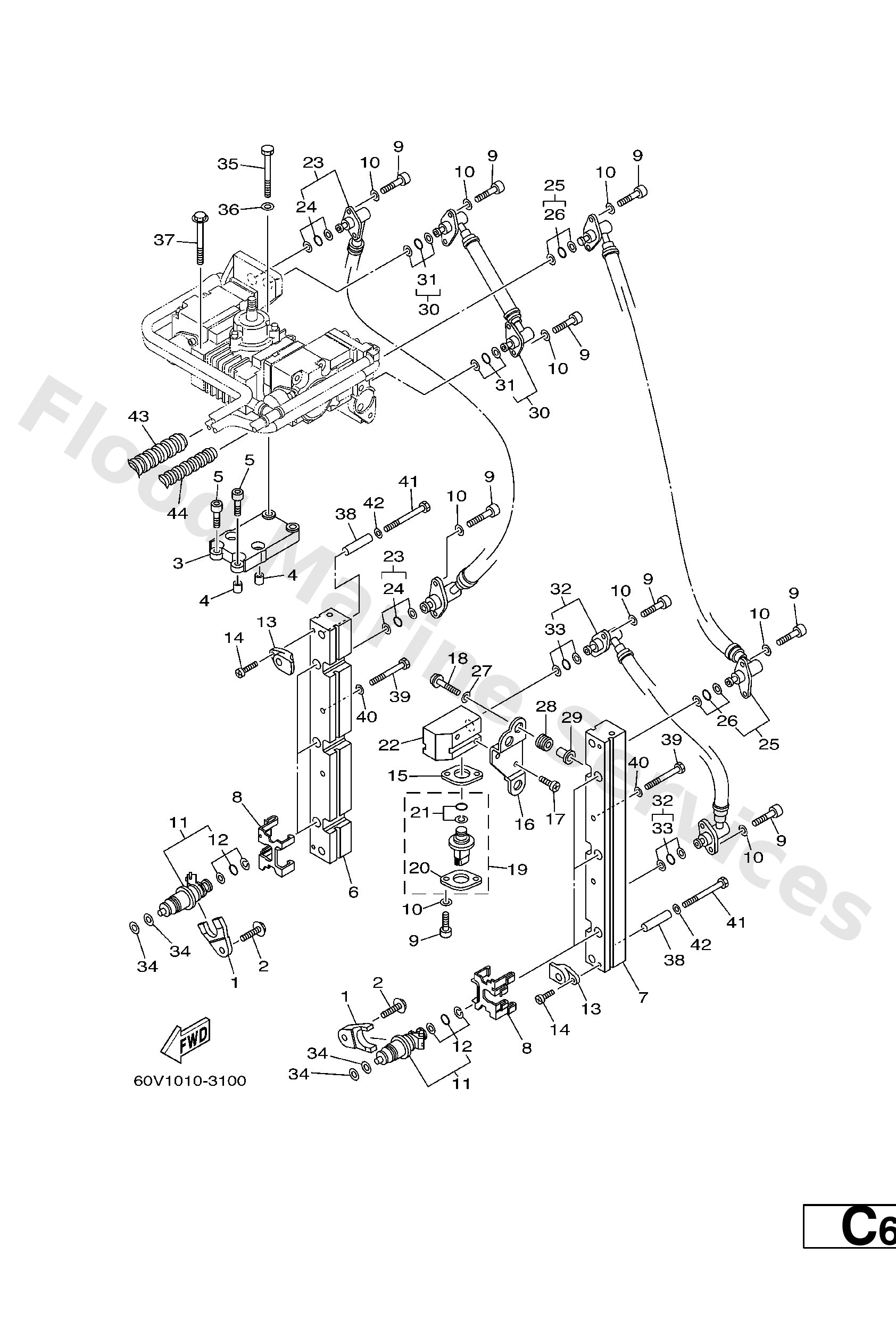

Diagram: FUEL INJECTION NOZZLE
Parts List
Reference
Description
Price
1
68F−13767−00
Cap, injector
Loading…
↗
2
90119−08M60
Bolt (682)
Loading…
↗
3
60V−13782−00
Stay
Loading…
↗
4
90387−08M31
Collar
Loading…
↗
5
90110−08M04
Bolt, hexagon socket head
Loading…
↗
6
60V−13161−00
Pipe, Delivery 1
Loading…
↗
7
60V−13171−00
Pipe, Delivery 2
Loading…
↗
8
60V−13898−00
Holder
Loading…
↗
9
68F−24551−00
Bolt, joint
Loading…
↗
10
68F−24576−00
Washer
Loading…
↗
11
60V−13761−00
Injector assembly
Loading…
↗
12
68F−1410B−00
Packing kit
Loading…
↗
13
60V−14264−00
Collar
Loading…
↗
14
65L−14565−00
Screw
Loading…
↗
15
60V−82389−00
Plate 2
Loading…
↗
16
60V−82398−00
Plate 3
Loading…
↗
17
60V−81545−00
Screw 1
Loading…
↗
18
60V−81546−00
Screw 2
Loading…
↗
19
60V−82380−00
Sensor, Pressure
Loading…
↗
20
68F−82388−00
Plate
Loading…
↗
21
68F−82384−00
Packing kit
Loading…
↗
22
60V−13938−00
Pipe
Loading…
↗
23
60V−13973−00
Pipe, fuel 3
Loading…
↗
24
68F−2466A−00
Packing kit
Loading…
↗
25
60V−13974−00
Pipe, fuel 4
Loading…
↗
27
65L−14596−00
Washer
Loading…
↗
28
90480−10M23
Grommet(6k7)
Loading…
↗
29
90387−05M00
Collar(6k7)
Loading…
↗
30
60V−13975−00
Pipe, Fuel 5
Loading…
↗
32
60V−13976−00
Pipe, fuel 6
Loading…
↗
34
68F−13764−00
Gasket (t=2.2)
Loading…
↗
35
97013−08070
Bolt
Loading…
↗
36
92903−08600
Washer, plain (663)
Loading…
↗
37
97513−08590
Bolt, with washer
Loading…
↗
38
60V−13716−00
Collar
Loading…
↗
39
97013−08055
Bolt, hexagon
Loading…
↗
43
90447−22004
Hose, with spring
Loading…
↗
44
90447−15001
Hose, with spring
Loading…
↗
