LZ250TRC (2004)
FUEL INJECTION NOZZLE

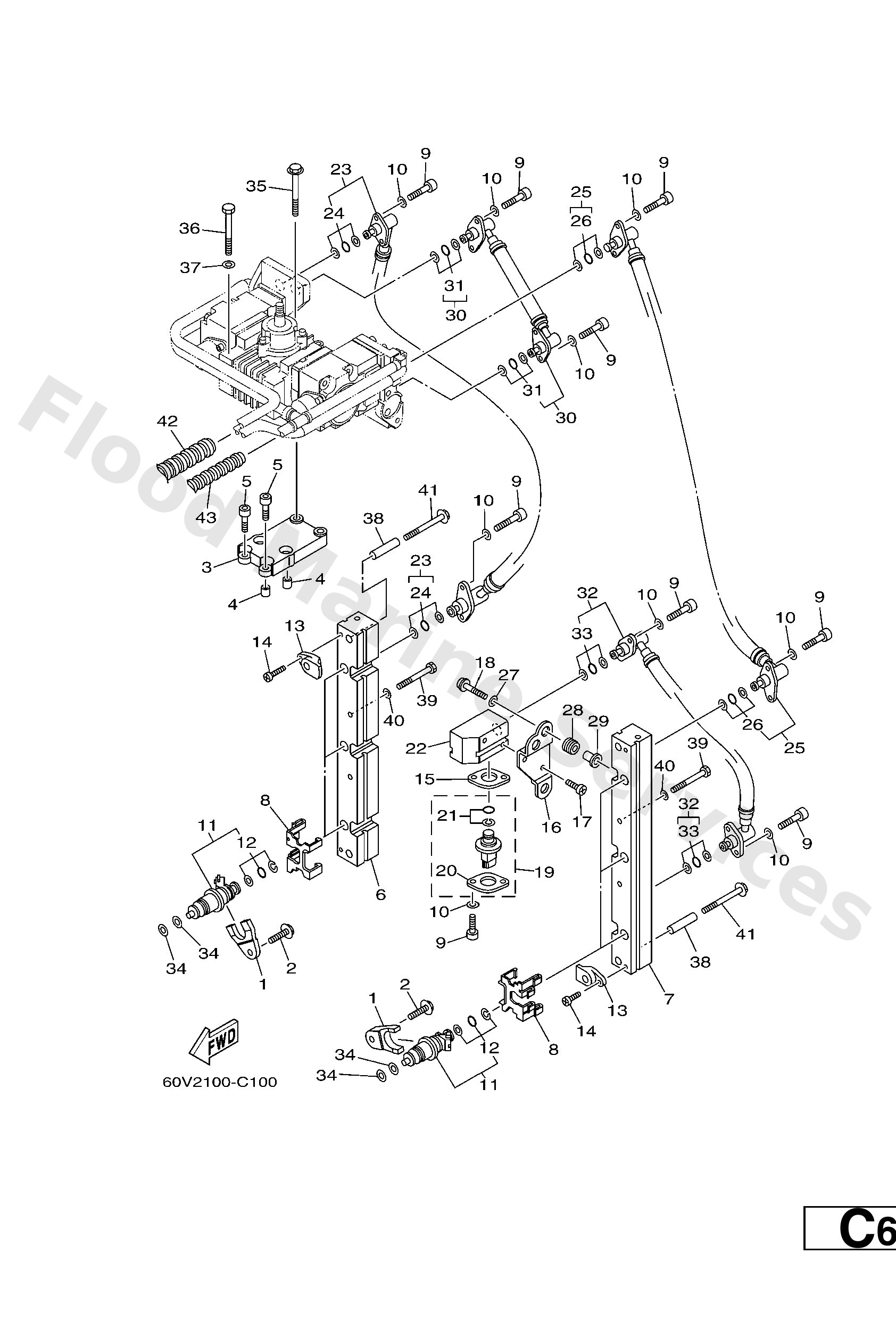

Diagram: FUEL INJECTION NOZZLE
Parts List
Reference
Description
Price
1
68F1376700
Cap, injector
Loading…
↗
2
9011908M60
Bolt (682)
Loading…
↗
3
60V1378200
Stay
Loading…
↗
4
9038708M31
Collar
Loading…
↗
5
9011008M04
Bolt, hexagon socket head
Loading…
↗
6
60V1316100
Pipe, Delivery 1
Loading…
↗
7
60V1317100
Pipe, Delivery 2
Loading…
↗
8
60V1389800
Holder
Loading…
↗
9
68F2455100
Bolt, joint
Loading…
↗
10
68F2457600
Washer
Loading…
↗
11
60V1376100
Injector assembly
Loading…
↗
12
68F1410B00
Packing kit
Loading…
↗
13
60V1426400
Collar
Loading…
↗
14
65L1456500
Screw
Loading…
↗
15
60V8238900
Plate 2
Loading…
↗
16
60V8239800
Plate 3
Loading…
↗
17
60V8154500
Screw 1
Loading…
↗
18
60V8154600
Screw 2
Loading…
↗
19
60V8238000
Sensor, Pressure
Loading…
↗
20
68F8238800
Plate
Loading…
↗
21
68F8238400
Packing kit
Loading…
↗
22
60V1393800
Pipe
Loading…
↗
23
60V1397300
Pipe, fuel 3
Loading…
↗
24
68F2466A00
Packing kit
Loading…
↗
25
60V1397400
Pipe, fuel 4
Loading…
↗
27
65L1459600
Washer
Loading…
↗
28
9048010M23
Grommet(6k7)
Loading…
↗
29
9038705M00
Collar(6k7)
Loading…
↗
30
60V1397500
Pipe, Fuel 5
Loading…
↗
32
60V1397600
Pipe, fuel 6
Loading…
↗
34
68F1376400
Gasket (t=2.2)
Loading…
↗
35
9751308570
Bolt, with washer
Loading…
↗
36
9701308090
Bolt, with washer
Loading…
↗
37
9290308600
Washer, plain (663)
Loading…
↗
38
60V1371600
Collar
Loading…
↗
39
9701308055
Bolt, hexagon
Loading…
↗
42
9044722004
Hose, with spring
Loading…
↗
43
9044715001
Hose, with spring
Loading…
↗
