Yamaha Outboard Parts - FUEL INJECTION NOZZLE - VZ200TR2 (2005) | Flood Marine

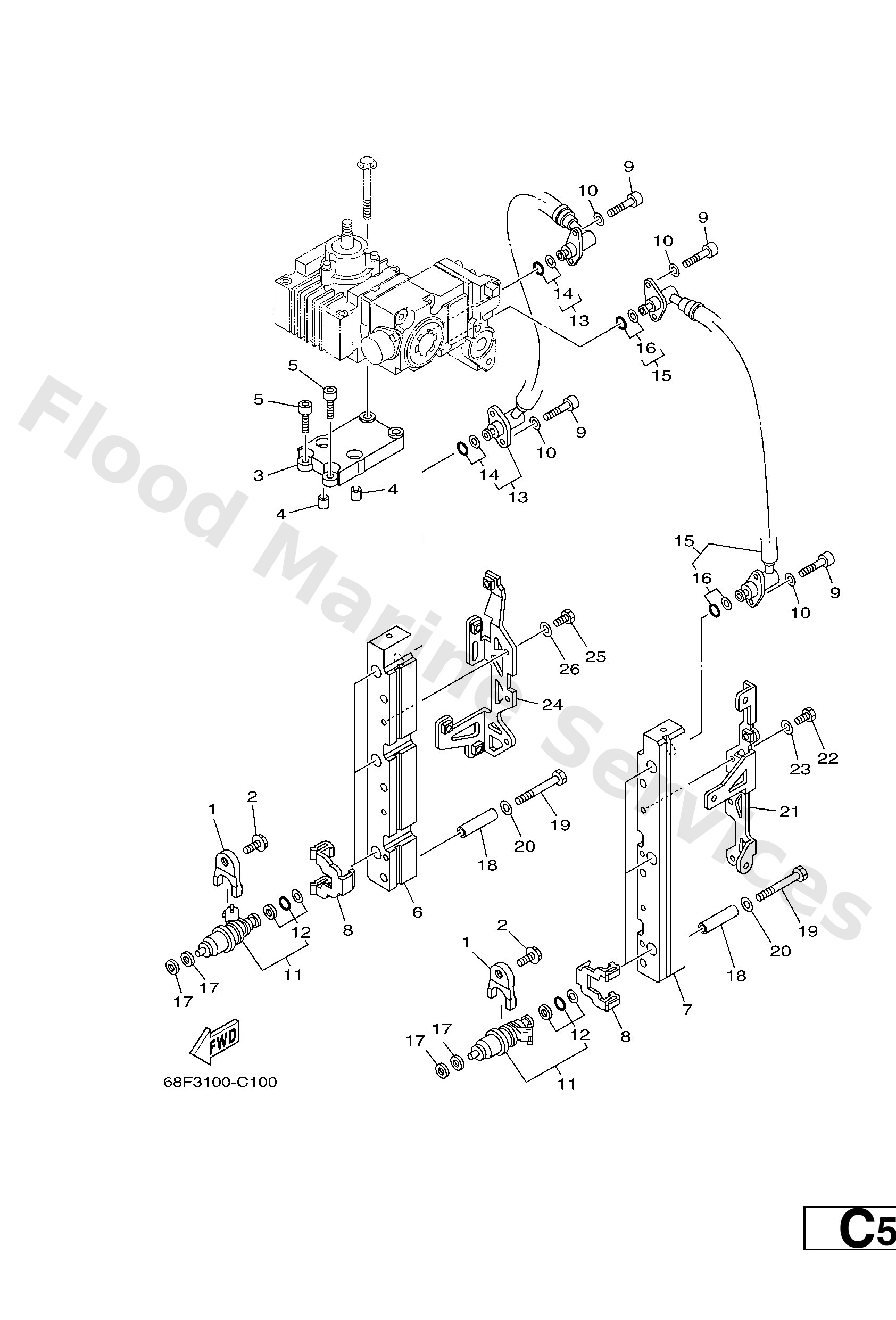

Diagram: FUEL INJECTION NOZZLE

Diagram

Parts List

Reference
Description
Price


1
68F1376700
Cap, injector
Loading…

↗
2
9011908M60
Bolt (682)
Loading…

↗
3
60V1378200
Stay
Loading…

↗
4
9038708M31
Collar
Loading…

↗
5
9011008M04
Bolt, hexagon socket head
Loading…

↗
6
68F1316110
Pipe, delivery 1
Loading…

↗
7
68F1317110
Pipe, delivery 2
Loading…

↗
8
60V1389810
Holder
Loading…

↗
9
68F2455100
Bolt, joint
Loading…

↗
10
68F2457600
Washer
Loading…

↗
11
68F1376100
Injector assembly
Loading…

↗
12
68F1410B00
Packing kit
Loading…

↗
13
68F1397310
Pipe, fuel 3
Loading…

↗
14
68F2466A00
Packing kit
Loading…

↗
15
68F1397410
Pipe, fuel 4
Loading…

↗
17
68F1376400
Gasket (t=2.2)
Loading…

↗
18
68F1371600
Collar
Loading…

↗
19
9701308055
Bolt, hexagon
Loading…

↗
20
9290308600
Washer, plain (663)
Loading…

↗
21
68F8254410
Clamp
Loading…

↗
22
9701306014
Bolt(gj3)
Loading…

↗
23
9290306600
Washer, plain (646)
Loading…

↗
24
68F8254420
Clamp
Loading…

↗
