Z200PETO (2003)
FUEL INJECTION NOZZLE

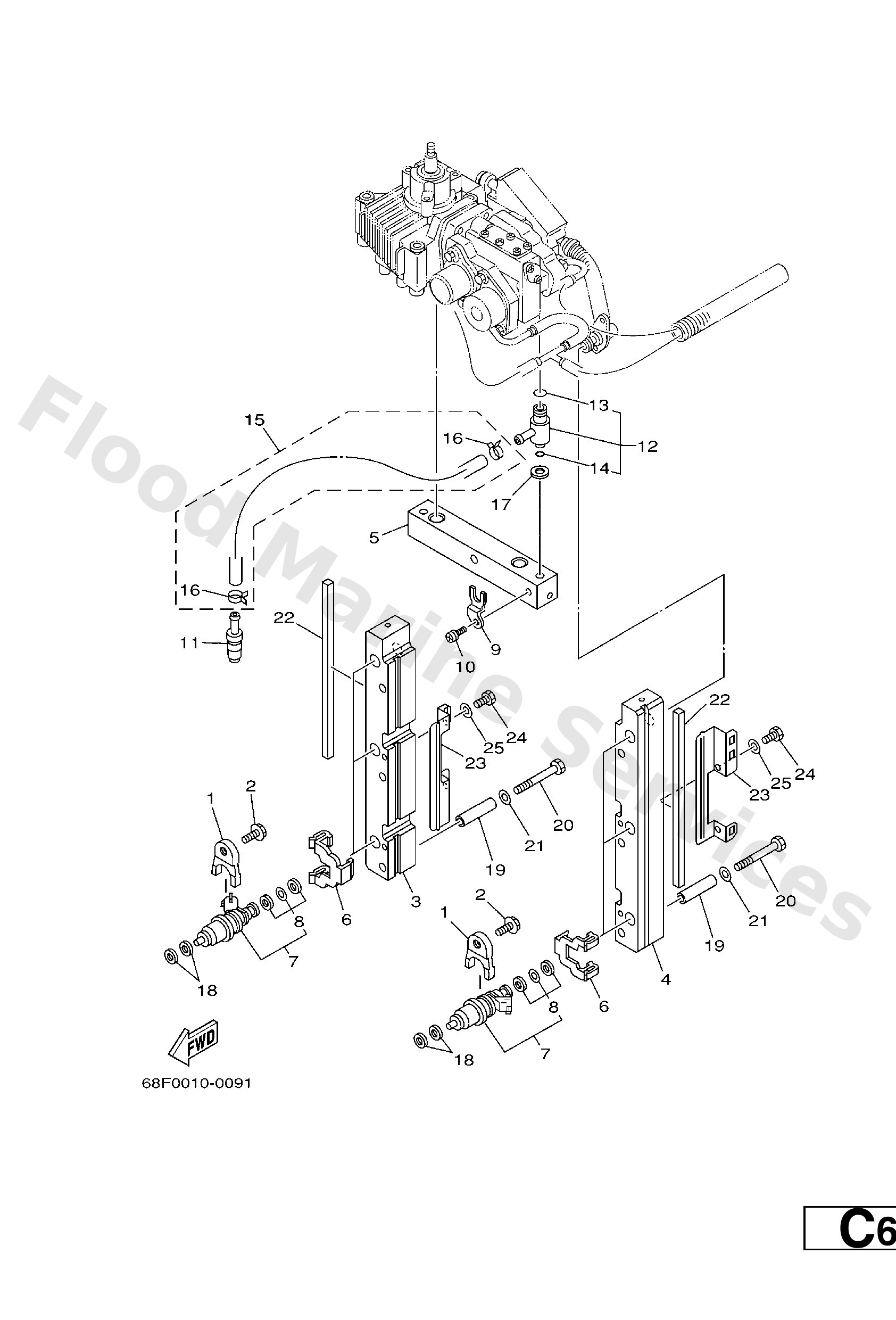

Diagram: FUEL INJECTION NOZZLE
Parts List
Reference
Description
Price
1
68F1376700
Cap, injector
Loading…
↗
2
9011908M60
Bolt (682)
Loading…
↗
3
68F1316100
Pipe, Delivery 1
Loading…
↗
4
68F1317100
Pipe, Delivery 2
Loading…
↗
5
68F1393800
Pipe
Loading…
↗
6
68F1389800
Holder
Loading…
↗
7
68F1376100
Injector assembly
Loading…
↗
8
68F1410B00
Packing kit
Loading…
↗
9
68F1385300
Plate 3
Loading…
↗
10
68F2445300
Screw
Loading…
↗
11
68F2430000
Fuel pipe joint
Loading…
↗
12
68F1359500
Joint
Loading…
↗
13
68F2447900
O-Ring
Loading…
↗
14
68F2448900
O-Ring
Loading…
↗
15
68F1397200
Pipe, Fuel 2
Loading…
↗
16
65L2438700
Clip
Loading…
↗
17
68F2417400
Spacer 1
Loading…
↗
18
68F1376400
Gasket (t=2.2)
Loading…
↗
19
68F1371600
Collar
Loading…
↗
20
9701308055
Bolt, hexagon
Loading…
↗
21
9290308600
Washer, plain (663)
Loading…
↗
22
68F2411J00
Damper, Side Cover
Loading…
↗
23
68F8254400
Clamp
Loading…
↗
24
9701306012
Bolt(gh1)
Loading…
↗
25
9290306600
Washer, plain (646)
Loading…
↗
