225GETO (2002)
FUEL INJECTION PUMP

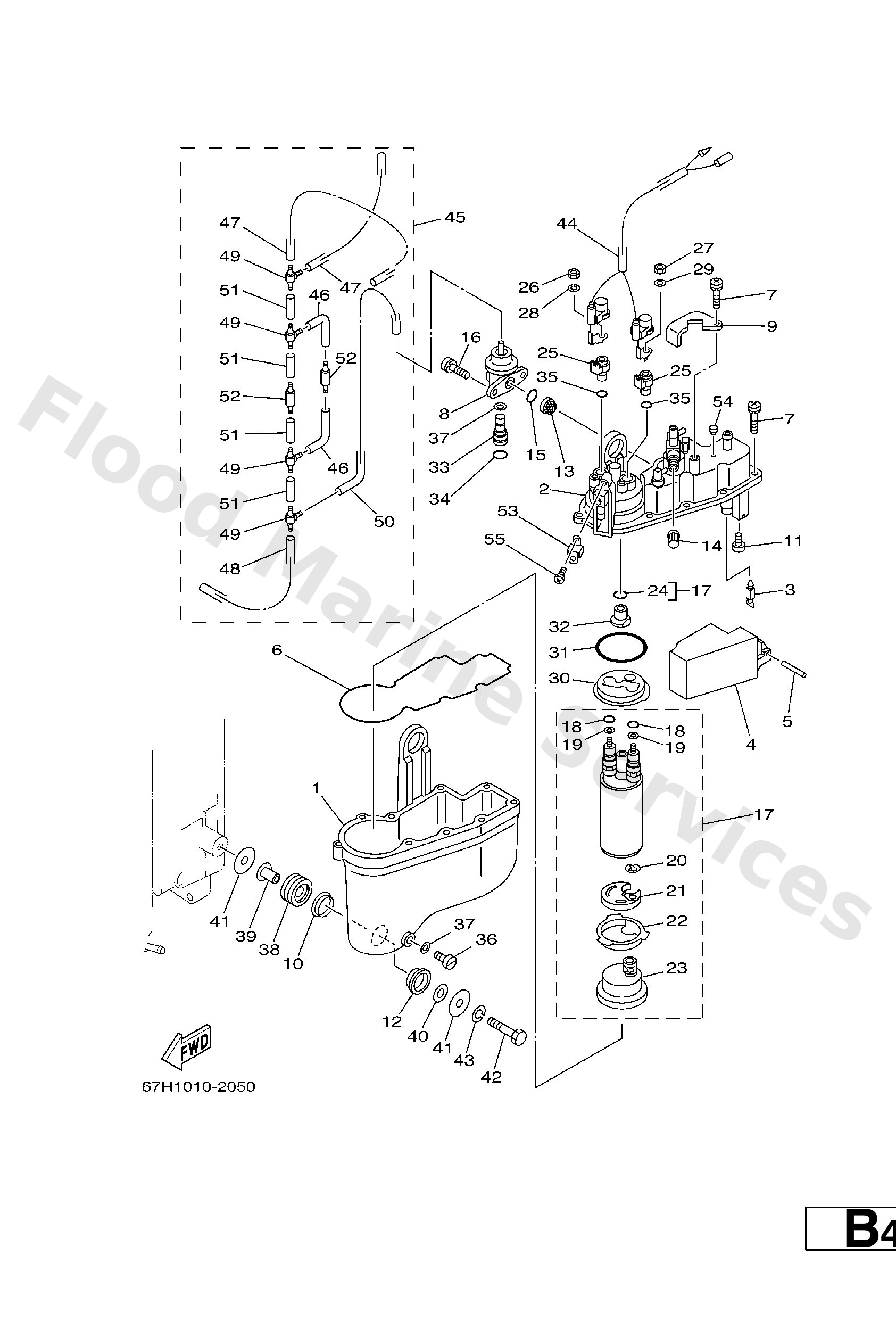

Diagram: FUEL INJECTION PUMP
Parts List
Reference
Description
Price
1
66K−14980−00
Body, float chamber
Loading…
↗
2
67H−14182−00
Cover, float chamber
Loading…
↗
3
65L−14546−00
Valve, needle
Loading…
↗
4
66K−14985−00
Float
Loading…
↗
5
66K−14548−01
Pin, float arm
Loading…
↗
6
66K−14984−00
Gasket, float chamber
Loading…
↗
7
65L−14125−00
Screw
Loading…
↗
8
66K−13906−00
Regulator, pressure
Loading…
↗
9
66K−14255−00
Plate
Loading…
↗
10
66K−14239−00
Seal
Loading…
↗
11
66K−14325−01
Screw, pan head
Loading…
↗
12
66K−14163−00
Spacer
Loading…
↗
13
65L−13905−00
Filter comp
Loading…
↗
14
65L−14966−00
Cap
Loading…
↗
15
65L−24486−00
O-ring
Loading…
↗
16
66K−14245−00
Screw, guide
Loading…
↗
17
67H−13907−00
Fuel pump comp.
Loading…
↗
18
65L−14227−00
Washer
Loading…
↗
19
65L−14194−00
Washer
Loading…
↗
20
65L−14159−00
Clip
Loading…
↗
21
66K−13781−00
Damper, pump
Loading…
↗
22
66K−13844−00
Plate 2
Loading…
↗
23
66K−13915−00
Filter
Loading…
↗
24
65L−1416A−00
O-ring
Loading…
↗
25
66K−14271−00
Insulator
Loading…
↗
26
65L−8182A−00
Nut
Loading…
↗
27
65L−8182K−00
Nut
Loading…
↗
28
65L−8182E−00
Washer
Loading…
↗
29
65L−8182F−00
Washer
Loading…
↗
30
66K−13843−00
Plate 1
Loading…
↗
31
65L−14147−00
O-ring
Loading…
↗
32
65L−14274−00
Connector
Loading…
↗
33
66K−24376−00
Pipe, joint 1
Loading…
↗
34
66K−24489−00
O-ring
Loading…
↗
35
65L−14397−00
O-ring
Loading…
↗
36
65L−14992−00
Screw, drain
Loading…
↗
37
65L−14997−00
Seal
Loading…
↗
38
65L−24375−00
Grommet
Loading…
↗
39
65L−24397−00
Collar
Loading…
↗
40
65L−24576−00
Washer
Loading…
↗
41
66K−24579−00
Washer 2
Loading…
↗
42
65L−24592−00
Bolt
Loading…
↗
43
65L−24169−00
Washer, lock
Loading…
↗
44
67H−82507−00
5−
Loading…
↗
45
67H−13490−00
Relief valve assembly
Loading…
↗
46
66K−13542−00
Hose, vacuum sensing 1
Loading…
↗
47
67H−13544−00
Hose, Vacuum Sensing 2
Loading…
↗
48
66K−13532−00
Hose, vacuum sensing 3
Loading…
↗
49
65L−24461−00
Pipe.joint 4
Loading…
↗
50
66K−13533−00
Hose, vacuum sensing 4
Loading…
↗
51
67H−13534−00
Hose, Vacuum Sensing 5
Loading…
↗
52
67H−13183−00
Valve, Check
Loading…
↗
53
66K−13898−00
Holder
Loading…
↗
54
6G1−14966−00
Cap
Loading…
↗
55
65L−14565−00
Screw
Loading…
↗
