L250BETO (2002)
FUEL INJECTION PUMP

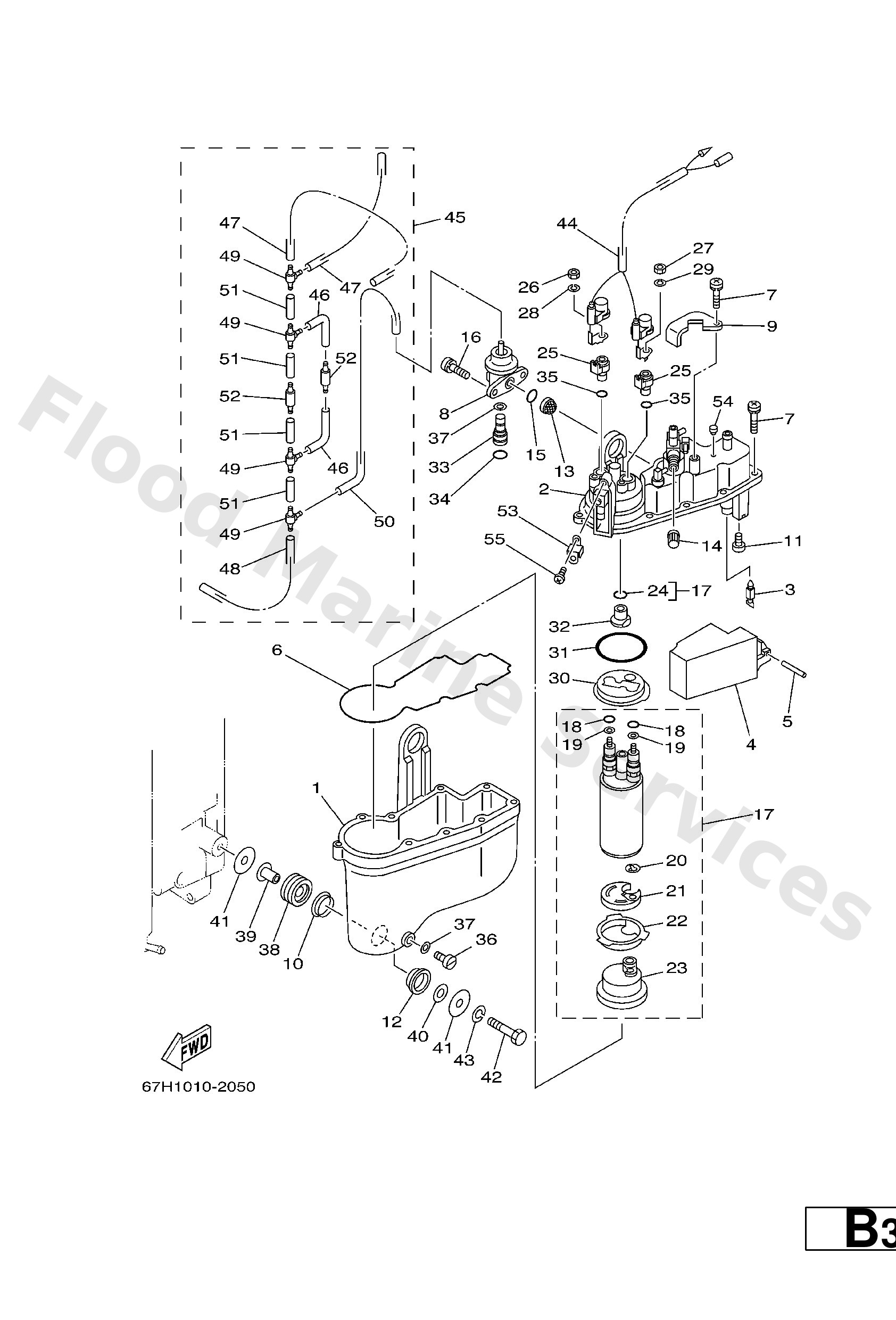

Diagram: FUEL INJECTION PUMP
Parts List
Reference
Description
Price
1
66K--14980--00
Body, float chamber
Loading…
↗
2
67H1418200
Cover, float chamber
Loading…
↗
3
65L--14546--00
Valve, needle
Loading…
↗
4
66K--14985--00
Float
Loading…
↗
5
66K1454801
Pin, float arm
Loading…
↗
6
66K--14984--00
Gasket, float chamber
Loading…
↗
7
65L--14125--00
Screw
Loading…
↗
8
66K--13906--00
Regulator, pressure
Loading…
↗
9
66K1425500
Plate
Loading…
↗
10
66K1423900
Seal
Loading…
↗
11
66K1432501
Screw, pan head
Loading…
↗
12
66K--14163--00
Spacer
Loading…
↗
13
65L--13905--00
Filter comp
Loading…
↗
14
65L--14966--00
Cap
Loading…
↗
15
65L--24486--00
O-ring
Loading…
↗
16
66K1424500
Screw, guide
Loading…
↗
17
67H1390700
Fuel pump comp.
Loading…
↗
18
65L--14227--00
Washer
Loading…
↗
19
65L1419400
Washer
Loading…
↗
20
65L1415900
Clip
Loading…
↗
21
66K1378100
Damper, pump
Loading…
↗
22
66K--13844--00
Plate 2
Loading…
↗
23
66K--13915--00
Filter
Loading…
↗
24
65L--1416A--00
O-ring
Loading…
↗
25
66K1427100
Insulator
Loading…
↗
26
65L8182A00
Nut
Loading…
↗
27
65L8182K00
Nut
Loading…
↗
28
65L--8182E--00
Washer
Loading…
↗
29
65L--8182F--00
Washer
Loading…
↗
30
66K--13843--00
Plate 1
Loading…
↗
31
65L--14147--00
O-ring
Loading…
↗
32
65L--14274--00
Connector
Loading…
↗
33
66K2437600
Pipe, joint 1
Loading…
↗
34
66K2448900
O-ring
Loading…
↗
35
65L--14397--00
O-ring
Loading…
↗
36
65L--14992--00
Screw, drain
Loading…
↗
37
65L--14997--00
Seal
Loading…
↗
38
65L2437500
Grommet
Loading…
↗
39
65L--24397--00
Collar
Loading…
↗
40
65L--24576--00
Washer
Loading…
↗
41
66K--24579--00
Washer 2
Loading…
↗
42
65L--24592--00
Bolt
Loading…
↗
43
65L2416900
Washer, lock
Loading…
↗
44
67H8250700
Wire, Lead
Loading…
↗
45
67H1349000
Relief valve assembly
Loading…
↗
46
66K--13542--00
Hose, vacuum sensing 1
Loading…
↗
47
67H1354400
Hose, Vacuum Sensing 2
Loading…
↗
48
66K--13532--00
Hose, vacuum sensing 3
Loading…
↗
49
65L--24461--00
Pipe.joint 4
Loading…
↗
50
66K--13533--00
Hose, vacuum sensing 4
Loading…
↗
51
67H1353400
Hose, Vacuum Sensing 5
Loading…
↗
52
67H1318300
Valve, Check
Loading…
↗
53
66K--13898--00
Holder
Loading…
↗
54
6G1--14966--00
Cap
Loading…
↗
55
65L--14565--00
Screw
Loading…
↗
