Yamaha Outboard Parts - FUEL INJECTION PUMP - LZ200NETO (2006) | Flood Marine

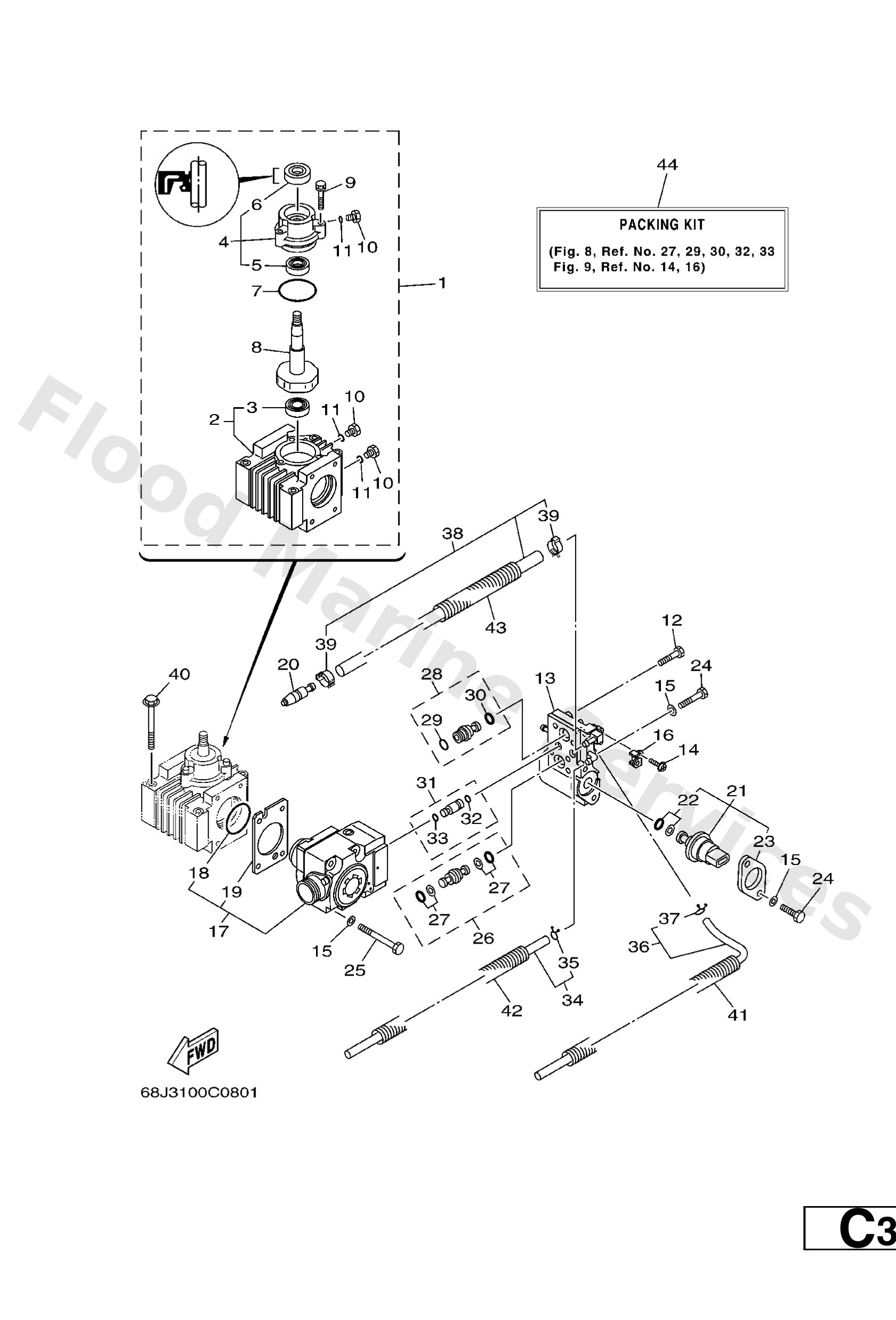

Diagram: FUEL INJECTION PUMP

Diagram

Parts List

Reference
Description
Price


1
68F1217010
Camshaft assembly 1
Loading…

↗
2
68F1242410
Plate, cartridge inner
Loading…

↗
3
9330600001
Brg,r-b 6000 26mm 19g ky
Loading…

↗
4
68F1217300
Cap, camshaft 1
Loading…

↗
5
93306001U0
Bearing
Loading…

↗
6
68F1222300
Seal
Loading…

↗
7
68F1243900
O-ring
Loading…

↗
8
68F1217100
Camshaft 1
Loading…

↗
9
68F1222800
Bolt
Loading…

↗
10
68F1345500
Plug
Loading…

↗
11
68F1347300
O-ring
Loading…

↗
13
68F1399310
Cover, control rack
Loading…

↗
14
65L1456500
Screw
Loading…

↗
15
68F2457900
Washer 2
Loading…

↗
16
60V1385400
Plate 4
Loading…

↗
17
68F1391010
Fuel pump assembly
Loading…

↗
18
60V1400500
Ring, seal
Loading…

↗
19
60V1412600
Gasket
Loading…

↗
20
68F2430000
Fuel pipe joint
Loading…

↗
21
68F8238001
Sensor, pressure
Loading…

↗
22
68F8238400
Packing kit
Loading…

↗
23
68F8238800
Plate
Loading…

↗
24
60V2417800
Bolt 3
Loading…

↗
25
60V2417600
Bolt 1
Loading…

↗
26
68F1381510
Joint 1
Loading…

↗
27
68F2466A00
Packing kit
Loading…

↗
28
68F1381610
Joint 2
Loading…

↗
29
68F2448600
O-ring
Loading…

↗
30
68F2432900
Seal
Loading…

↗
31
68F1375810
Pipe, joint
Loading…

↗
33
60V1347300
Seal
Loading…

↗
34
68F2431210
Pipe 2
Loading…

↗
35
68F2435600
Clip, pipe 1
Loading…

↗
36
68F2431310
Pipe 3
Loading…

↗
38
68F1397210
Pipe, Fuel 2
Loading…

↗
39
65L2438700
Clip
Loading…

↗
40
9751308570
Bolt, with washer
Loading…

↗
41
9044617M72
Hose
Loading…

↗
42
9044713007
Hose, with spring
Loading…

↗
43
9044620MF5
Hose
Loading…

↗
44
68F2466A10
-
Loading…

↗
